Description

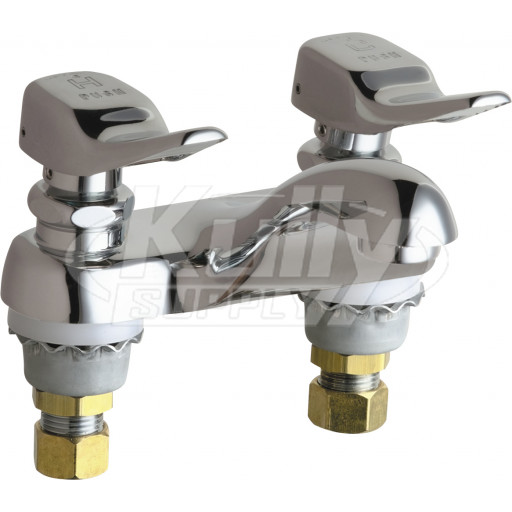

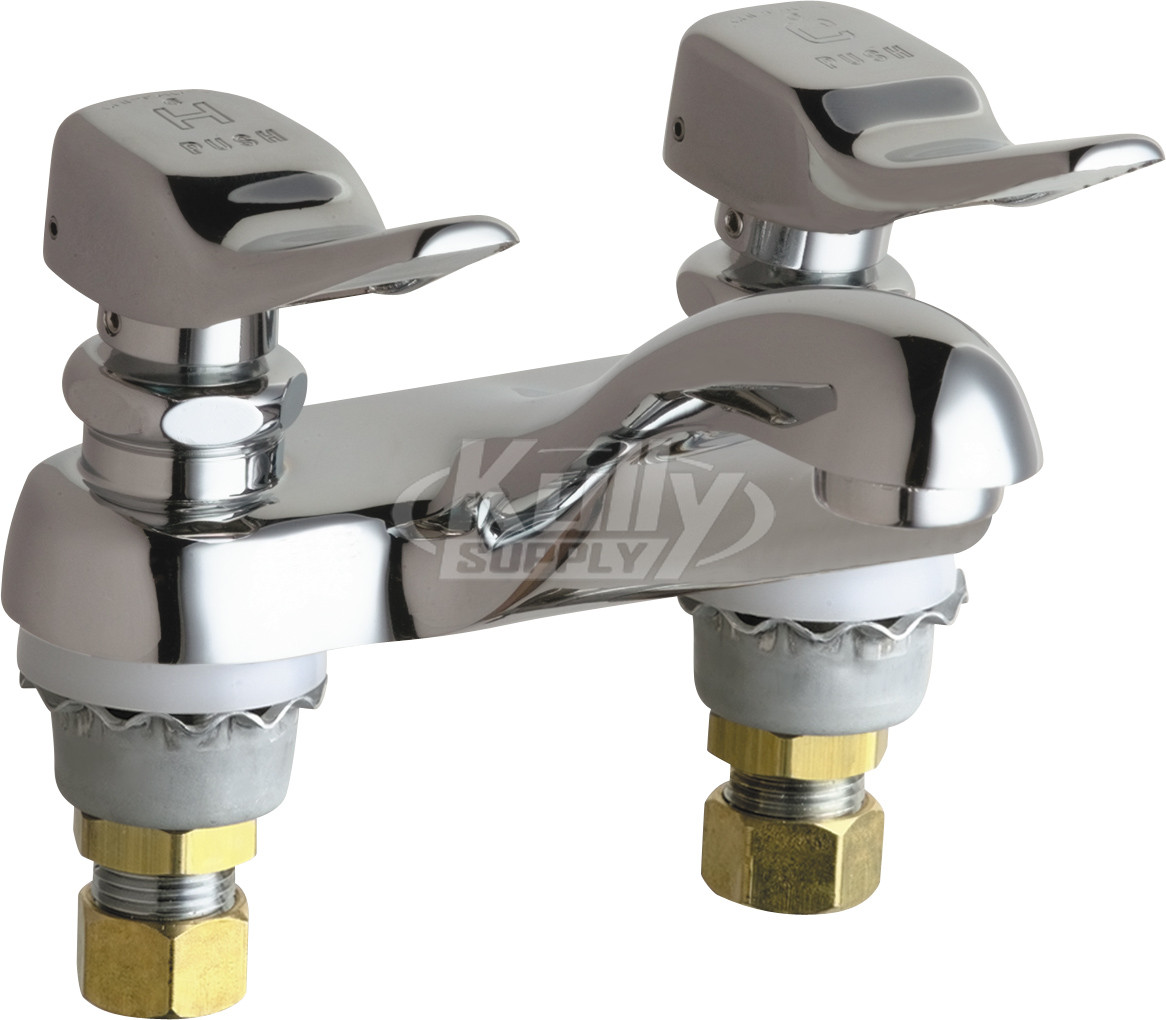

Chicago Faucets No. 802-336ABCP, Polished chrome plated solid cast brass body construction with integral 4” C-C spout and integral inlet shanks on 4” centers, 2.2 GPM pressure compensating aerator outlet, push-tilt vandal resistant metal handle with hot and cold water index, 0.25 gal/cycle self closing adjustable metering cartridge. Inlet shanks contain standard 1/2” NPSM threaded inlets with coupling nuts for connection to 3/8” or 1/2” standard flexible risers. Mounting hardware included. This product meets ADA requirements and is tested and certified to industry standards: ASME A112.18.1, NSF 61, Sec. 9 and CSA B125.
PRODUCT TYPE
Deck mounted metering faucet with 4” integral spout
FEATURES & SPECIFICATIONS
- Polished chrome plated finish
- Solid brass body construction
- 4” C-C Integral spout
- 2.2 GPM (8.3 L/min) pressure compensating aerator outlet, catalog #E12
- Push-tilt vandal resistant handle with hot and cold water index, catalog #336
- NAIAD™ self-closing adjustable metering cartridge, catalog #335-X
- 0.25 Gal/Cycle Max.
- 1⁄2” NPSM supply inlets with coupling nuts for 3/8” or 1⁄2” flexible risers
- Mounting hardware included
PERFORMANCE SPECIFICATION
- Rated Operating Pressure: 20-125 PSI
- Rated Operating Temperature: 40-140° F
WARRANTY
- Lifetime Limited Faucet Warranty
- 5-Year Limited Cartridge Warranty
- 1-Year Limited Finish Warranty
COMPLIANT TO
- ASME A112.18.1
- NSF 61, Sec. 9
- CSA B125
- ADA
