Description

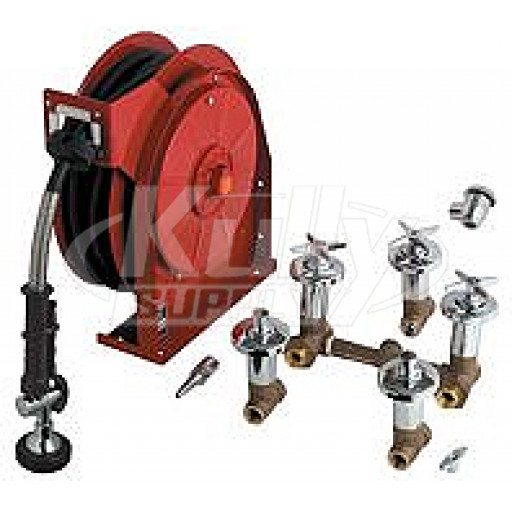

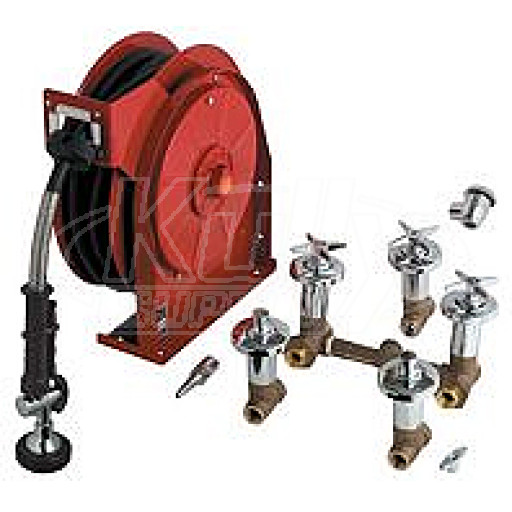

Chicago Faucets No. 536-NF. 2.5 GPM (9.5 L/min) hose reel valve spray. 3” metal cross handle(s) with eight point tapered broach and secured blue and red buttons. Quaturn™ rebuildable compression cartridge, opens and closes 90°, closes with water pressure, features square tapered stem. Integral inlet shank(s) contains standard 1/2” NPT female thread inlets. Retractable 35 ft. X 3/8” i.d. Rubber hose. Concealed two-valve fitting. Concealed control valve. Concealed straight wall stop valves. Mounting hardware included. This product is tested and certified to industry standards: ASME A112.18.1M, CSA B125.1, and Certified to NSF/ANSI 61, Section 9 by CSA.
Product Type
Wall Mounted Hose Reel Assembly
Features & Specifications
• 8” Center Hose Reels
• 2.5 GPM (9.5 L/min) Spray
• 3” Cross Handle
• Quaturn Compression Operating Cartridge
• 1/2” NPT Female Thread Inlets
• Retractable 35 Ft. x 3/8” I.D. Rubber Hose
• Concealed Two-Valve Fitting
• Concealed Control Valve
• Concealed Straight Wall Stop Valves
Performance Specification
• Rating Operating Pressure: 20-125 PSI
• Rated Operating Temperature: 40-140ºF
Warranty
• Lifetime Limited Faucet Warranty
• 5-Year Limited Cartridge Warranty
• 1-Year Limited Finish Warranty
Codes & Standards
• ASME A112.18.1M
• CSA B125.1
• Certified to NSF/ANSI 61, Section 9 by CSA
Manufacturer Info
The Chicago Faucet Company has offered commercial and residential products built to stand the test of time. A combination of the best engineering, finest materials and quality workmanship has made Chicago Faucets the specified choice in many of the finest building products.
