Description

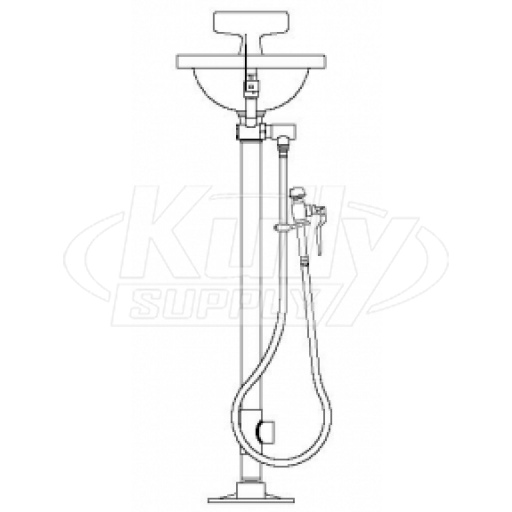

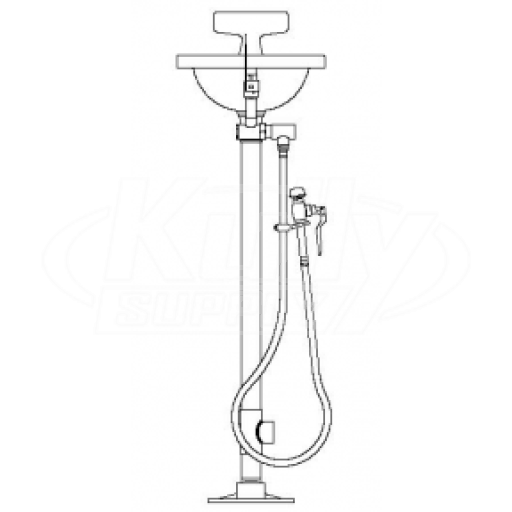

The Speakman SE-431 Pedestal-Mounted Eye/Face Wash (with Plastic Receptor and Drench Hose) features a yellow plastic receptor, stay-open full flow ball valve activated by a stainless steel push handle, in-line strainer, and a drench hose activated by a squeeze handle with an aerated spray nozzle. It is mounted on a galvanized steel pipe with a drain tee and floor flange. The spray pattern is a 9” x 8” (72 sq. in.) curtain of aerated water, easily controlled at any pressure for maximum protection.
- RECEPTOR: Acrylic/PVC Thermoplastic.
- SPRAYHEADS: (6) Brass, Chrome-Plated, Aerated.
- VALVE: 1/2” NPT Female Brass, Chrome-Plated.
- ACTIVATOR: Stainless Steel Push Handle.
- SHROUDS: Yellow Polypropylene.
- INLET: 1/2” NPT Female.
- STRAINER: Brass, Chrome-Plated, In-Line.
- PIPE: 1-1/4” IPS Galvanized Steel.
- FLOOR FLANGE: Brass Casting with (3) 17/32” Dia. Mounting Holes on 9” Dia. Bolt Circle, Spaced 120° Apart.
- WASTE: 1-1/4” NPT Female.
- FINISH: Safety Green Powder Coating.
- DRENCH HOSE: Valve: 3/8” NPT Female Brass, Chrome-Plated. Hose: 6’ Reinforced, 750 PSI Burst Pressure Integral Hanger for Valve and Dust Cover.
- EMERGENCY SIGN: 7-7/8” x 7-7/8” Plastic Wall Sign.
Manufacturer Info
Speakman faucets can be found in major landmarks and institutions all over America. Speakman safety products such as booth shower and portable eyewash stations are also used at industrial and medical centers nationwide.
