Sloan ROYAL 186 SMO Flushometers

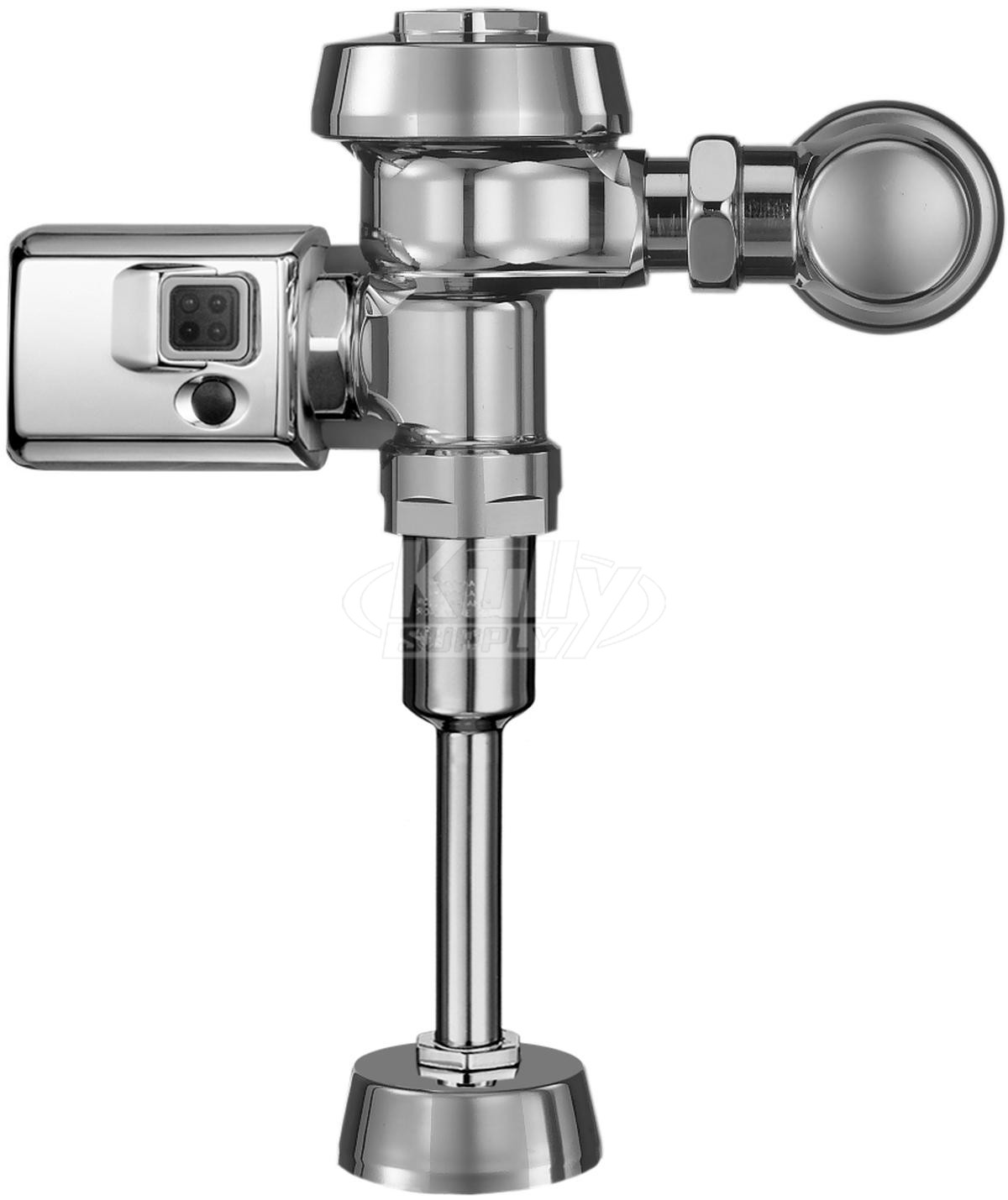

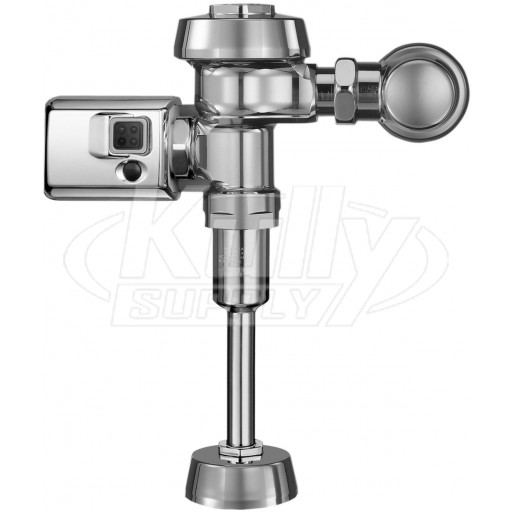

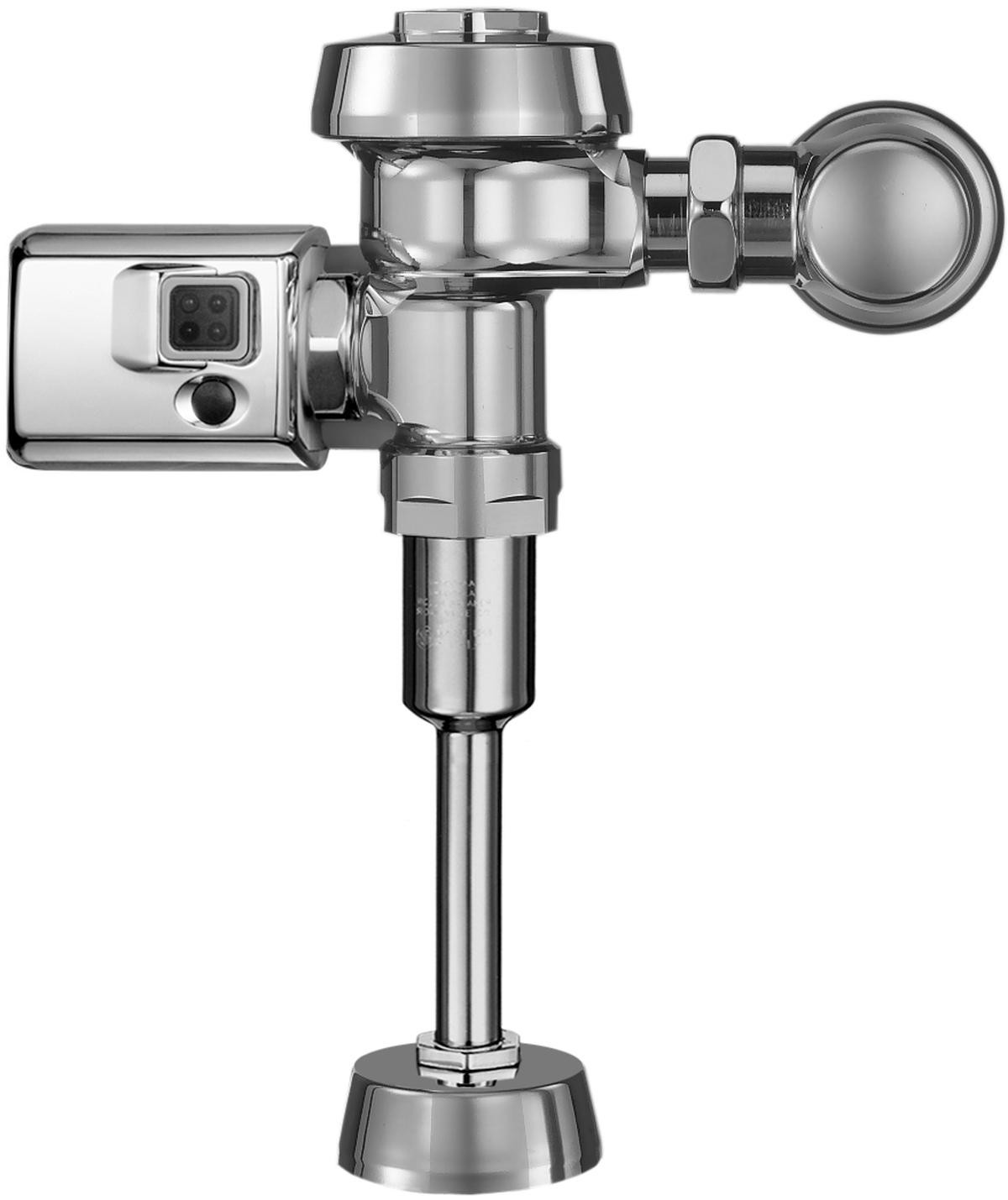

Sloan ROYAL 186 SMO Flushometers

Item #: 158040
|
Model: ROYAL 186 SMO
|
Manufacturer: Sloan

If you are looking to find Sloan products quickly and easily, you’ve come to the right place. This Sloan ROYAL 186 SMO Flushometers is a direct replacement product manufactured by Sloan. Order this Sloan ROYAL 186 SMO today and you will have your Sloan project completed in no time at all.

1.5 GPF (gallons per flush)
For Urinals
3/4 Spud Size
9” Vacuum Breaker

This Item Typically Ships in 1-2 Weeks

Spec Sheet

List Price: $772.45 $502.09 You Save 35%

Qty:

Product Description
Specifications
Documents
Reviews (0)
Questions (0)

Product Description

Description

GENERAL INFORMATION

Quiet, Exposed, Diaphragm Type, Chrome Plated Urinal Flushometer with the following features:

Battery Powered
Side Mount Sensor Operated Urinal Flushometer for ¾” top spud urinals
PERMEX Synthetic Rubber Diaphragm with Dual Filter Bypass
ADA Compliant OPTIMA Battery Powered Infrared Sensor for automatic “No Hands” operation
Chrome Plated Infrared Sensor Housing
Angled Sensor Window
Manual Override Flush Button
Four (4) Size C Batteries included
“Low Battery” Flashing LED with Optional Audio Tone
“User in View” Flashing LED
Optional 24-Hour Sentinel Flush
Infrared Sensor Range Adjustment Screw and Reset Button
¾” I.P.S. Screwdriver Bak-Chek Angle Stop
Free Spinning, Vandal Resistant Stop Cap
Adjustable Tailpiece
High Back Pressure Vacuum Breaker Flush Connection with One-piece Bottom Hex Coupling Nut
Spud Coupling and Flange for ¾” Top Spud
Sweat Solder Adapter w/Cover Tube and Cast Wall Flange w/Set Screw
High Copper, Low Zinc Brass Castings for Dezincification Resistance
Flush Accuracy Controlled by CID Technology
No External Volume Adjustment to Ensure Water Conservation
Diaphragm, Stop Seat and Vacuum Breaker Molded from PERMEX Rubber Compound for Chloramine resistance

HYGIENIC

User makes no physical contact with the Flushometer surface except to initiate the Override Button when required. Helps control the spread of infectious diseases. 24-Hour Sentinel Flush keeps fixture fresh during periods of nonuse.

ECONOMICAL

Automatic operation provides water usage savings over other flushing devices. Reduces maintenance and operation costs. Installation and battery replacement does not require turning off water to the valve.

Manufacturer Info

Sloan is the premier manufacturer of restroom products and systems for the commercial market. Sloan Flushometers, Sloan Faucets and other engineered systems provide owners with the ultimate in tenant and employee convenience – while saving water.

Specifications Documents Reviews (0) Questions (0)

Frequently bought together

Customers who bought this product also commonly purchased the following combination of items.

This Item: Sloan ROYAL 186 SMO Flushometers
Sloan ROYAL 115 SMO Flushometers
List Price: $793.45 $515.74 You Save 35%
Sloan Regal A-43-A Urinal Drop-In Kit 0.5 GPF
List Price: $43.80 $36.79 You Save 16%
Standard Urinal Spud for .75" Vacuum Breaker Tube
$18.63
Total Price $1,073.25

Total Price Excl. Tax: $1,073.25 Incl. Tax: $1,073.25

Customers Who Bought This Item Also Bought

Sloan Regal A-43-A Urinal Drop-In Kit 0.5 GPF
List Price: $43.80 $36.79 You Save 16%
Sloan ESD-217 27oz Bottle of Liquid Hand Soap with Lotion
List Price: $42.60 $35.78 You Save 16%
Sloan Regal A-41-A Toilet Drop-In Kit 1.6 GPF
List Price: $43.80 $36.79 You Save 16%
Sloan ROYAL 115 SMO Flushometers
List Price: $793.45 $515.74 You Save 35%
Sloan F-5-A Flushometer Spud Coupling Assembly for 3/4" Urinal Vacuum Breaker
List Price: $27.30 $22.93 You Save 16%
Sloan SJS-20 Waterless Urinal Cleaner Concentrate Refill (2 Pack Clamshell)
List Price: $108.55 $82.50 You Save 24%

Kully Item #	158040
Manufacturer	Sloan
Model #	ROYAL 186 SMO
Manufacturer Part #	3912710
UPC Code	671254313903
Toilet/Urinal	Urinal
Gallons Per Flush (GPF)	1.5 GPF
Vacuum Breaker Length	9"
Spud Size	3/4"
