Items Included
- Smart Faucet
- Flexible Supply Hose (from Control Box to Faucet)
- Faucet Base Gasket
- Slotted Mounting Washers (Qty 2)
- Wing Nuts (Qty 2)
- Aerator
- Dual-Inlet Quick Connect Bak-Chek® Filter Tee
Description

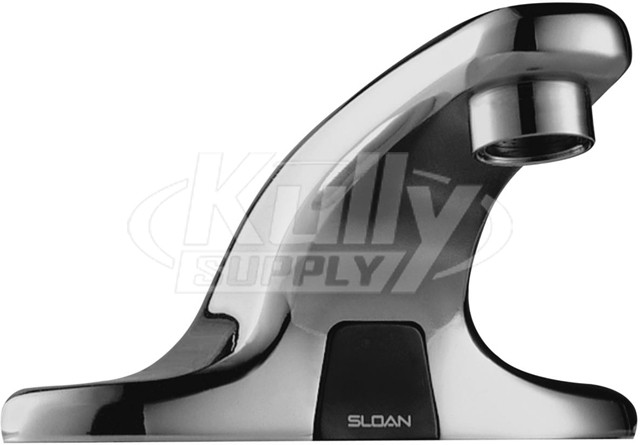

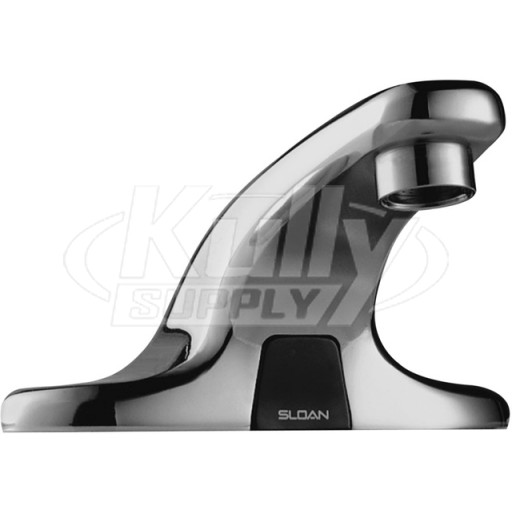

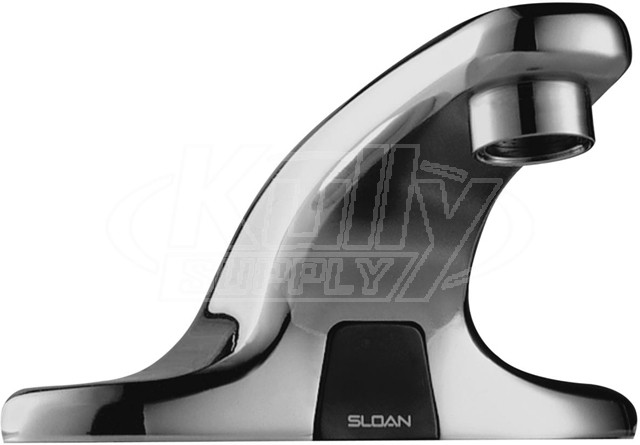

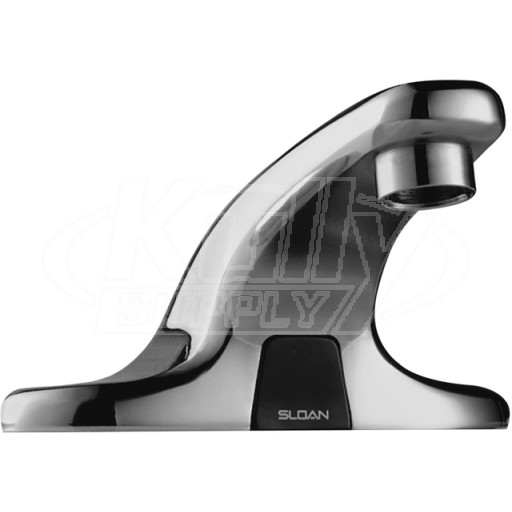

Sloan EBF-650 Smart Faucet Features
We’ve revamped our Sloan Optima Faucet line with standardized components to save time on labor, save money on replacement parts and speed up service time. All Optima faucets now come with standard mounting hardware, a longer sensor cable, and quick-connect spout hose.
Smarter water management made simple. Introducing the new, improved Optima® line — a plumber-friendly powerhouse that reduces the time to install, service and maintain faucets by 50% or more. Sync it with our new smartphone app and you’ve found yourself a simple way to manage water.
One box with every option. At first glance, you’ll see that new technology means fewer cords and fewer hoses. The same control unit can be powered by batteries, wall adapter or an optional hybrid energy turbine.
Simply connect to the Free SLOAN CONNECT APP. Wirelessly adjust and monitor your faucet from the phone app. And speaking of simple, did we mention faucet settings can be adjusted without getting under the sink? With the Sloan Optima Control Box, you can connect with your below deck control box with your mobile device. Wireless connection puts faucet controls and data literally at your fingertips and keeps you off your knees.
Sloan Connect App
Adjust settings wirelessly (no deck disassembly or below-deck work)
- Select On-Demand or Metered activation
- Set faucet timeouts
- Activate Line Flush to clear supply lines or drains
- Measure and report water usage
- Check battery strength
- Identify your faucet and access technical data
- Generate and share diagnostic reports with Sloan
- Save notes about site or faucet
- Configure your faucet once and apply those same settings to other faucets
- Free App is Available for iPhone or Android Phones
Features and Benefits
Power Options – This same faucet module can be converted between: Battery Powered (4-AA Batteries) or Connect to a transformer and the AA Batteries become your backup power supply.
Commercial Grade Faucet, ADA Compliant, Cast Brass Spout, Quick Connect Fittings, Integrated Water Shut-off, Wireless Settings Adjustment, On-demand or Metered activation, Hygienic Line Flush, Water Usage and Battery Strength Reporting, Self-adapting Sensor Battery Life: 3 years 8,000 cycles/month. Sensor Range: 4“ – 5” Timeout Adjustment Settings: 30s
Operation and Maintenance
Back Check Filter Required.
Dual-Inlet Quick Connect Bak-Chek Filter Tee can be connected via flexible supply lines to the hot and cold water supply stops. Water temperature is controlled by adjusting the water flow through the hot and cold stops.
or
Single-Inlet Quick Connect Bak-Chek Filter is used with Sloan’s mechanical mixing valve, Sloan’s thermostatic mixing valve, or with a pre-tempered water supply line.
Care And Cleaning Instructions
DO NOT USE abrasive or chemical cleaners (including chlorine bleach) to clean faucet that may dull the luster and attack the chrome or special decorative finishes. Use ONLY mild soap and water, then wipe dry with clean cloth or towel. While cleaning the bathroom tile, protect the faucet from any splattering of cleaner. Acids and cleaning fluids will discolor or remove chrome plating.
Warranty Info
Unless otherwise noted, Sloan Valve Company warrants this product, manufactured and sold for commercial or industrial uses, to be free from defects in material and workmanship for a period of three (3) years (1 year for SF faucets, special finish and PWT electronics and 30 days on PWT software) from date of first purchase.
Codes & Standards
ADA Compliant, ASME A112.18.1 Compliant, BREEAM Materials Credit, BREEAM Water Credit, CalGreen Compliant, CEC Compliant, cUPC Certified, cUPC Low Lead Compliant, EPD, Green Globes Materials & Resources Credit, Green Globes Water Credit, HPD, LEED Materials & Resources EPD Credit, LEED Materials & Resources HPD Credit, NYC604.4, Proposition 65, Satisfies LEED Credits, TAS, UPC Certified, UPC Low Lead Compliant
Manufacturer Info
Sloan is the premier manufacturer of restroom products and systems for the commercial market. Sloan Flushometers, Sloan Faucets and other engineered systems provide owners with the ultimate in tenant and employee convenience – while saving water.
