Description

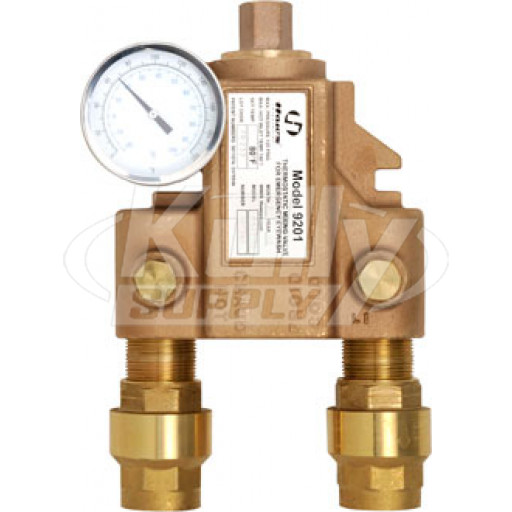

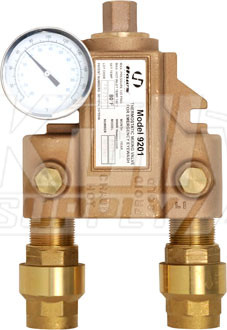

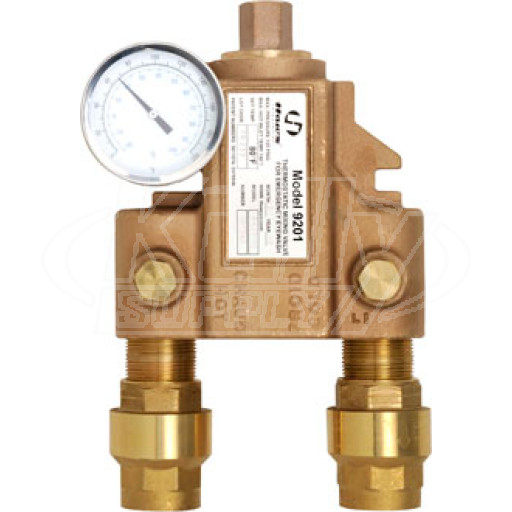

- Tempered Water: The thermostatic mixing element responds to changes in incoming hot and cold water temperatures to maintain outlet temperatures to +/- 5 degrees F. Varying conditions can be up to a 30 degrees F change in hot water temperature, 30 degrees F change in cold-water temperature, and a 50% drop in inlet supply pressure. Inlet hot and cold pressures must be equal. The outlet temperature factory setting is 80 degrees F.
- Fail-Safe Back Up: Liquid thermal thermostat with tamper-resistant control adjustment. System shuts off all incoming hot water should cold water supply fail. Should the hot water supply become interrupted or the thermostatic element fails, the valve will go into cold-water bypass mode.
- Maximum Inlet Pressure: 125 psi.
- Maximum Inlet Temperature: 180 degrees F.
- Recommended Inlet Temperature: 140 degrees F.
- Minimum Inlet Temperature: 120 degrees F.
- Inlet and Outlet: 1- 1/4” IPS. Isolation check valves are supplied for installation at inlet and outlet.
Manufacturer Info
Haws manufactures award-winning drinking fountains, electric water coolers, hydration stations, and emergency equipment for a diverse set of industries. For over 103 years, Haws has been committed to bringing the highest quality water delivery and emergency equipment products to a wide variety of markets.
