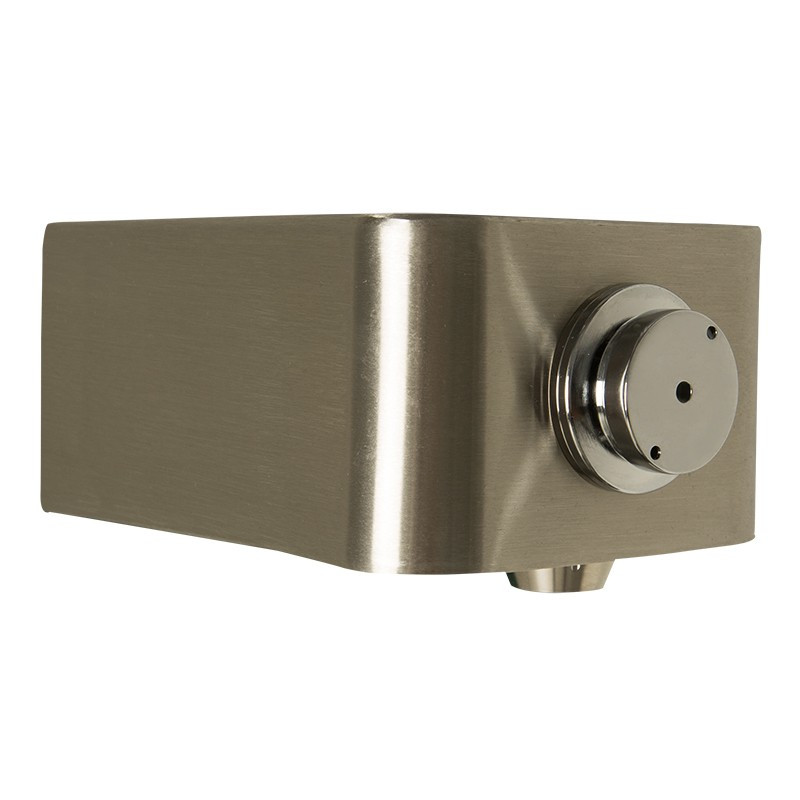

Haws 1920 Bottle Filler Satin finish

Haws 1920 Bottle Filler Satin finish

Item #: 166880
|
Model: 1920
|
Manufacturer: Haws

Haws Model 1920 is a type of wall mounted bottle filler that may be placed in settings such as schools and other locations in and around office buildings with existing fountain installations where the temperature remains above freezing. It can be used as a stand-alone station or mounted above the Haws 1001, 1011, 1107L and 1117L series drinking fountains.

For NEW installations, this bottle filler requires a separate purchase of a mounting plate; either the 6700 in-wall or the 6700R on-wall support plate. (See Product Message)

Satin Stainless Steel
1.0 GPM Laminar Flow

This Item Typically Ships in 1-2 Weeks

List Price: $482.00 $433.80 You Save 10%

Qty:

Product Description
Specifications
Reviews (0)
Questions (0)

Product Description

Features and Benefits

Push Button: It’s patented stainless steel, push-button activated valve assembly which allows for front access stream adjustment as well as cartridge and strainer access, this bottle filler offers 100% lead free waterways. The valve works at an operating pressure range of 30 to 90 psi (2.1 to 6.2 bar).

Construction: Unit is made of 14 gauge Type 304 stainless steel with a satin finish that resists stains and corrosion, and has soft rounded corners. Unit features vandal-resistant bottom plate and dispensing nozzle.

Laminar Flow: Adjustable, splash-free, 1 gpm (3.78 L) laminar water flow.

Efficient & Flexible Installation: Unit is designed for retrofit or new construction applications. No drain required for mounting over existing drinking fountain.

Durable Build: Good for indoor or outdoor applications (in non-freezing areas). Made with 100% Stainless Steel for vandal resistance.

Mounting Options: Select from mounting plate and back panel models to complete installation. Unit can mount on various wall types.

Lead Free

Haws® manufactures drinking fountains and electric water coolers to be lead-free by all known definitions including NSF/ANSI 61, Section 9, NSF/ANSI 372, California Proposition 65, and the Federal Safe Drinking Water Act. Product is compliant to California Health and Safety Code 116875 (AB 1953-2006).

Product Message

For new installations, this bottle filler requires a mounting plate; either the 6700 in-wall or the 6700R on-wall support plate.

In-Wall Drinking Fountain Mounting Plate part #133676
On-Wall Drinking Fountain Mounting Plate part #175490

Manufacturer Info

Haws manufactures award-winning drinking fountains, electric water coolers, hydration stations, and emergency equipment for a diverse set of industries. For over 103 years, Haws has been committed to bringing the highest quality water delivery and emergency equipment products to a wide variety of markets.
