Halsey Taylor WC.B Parts Breakdown

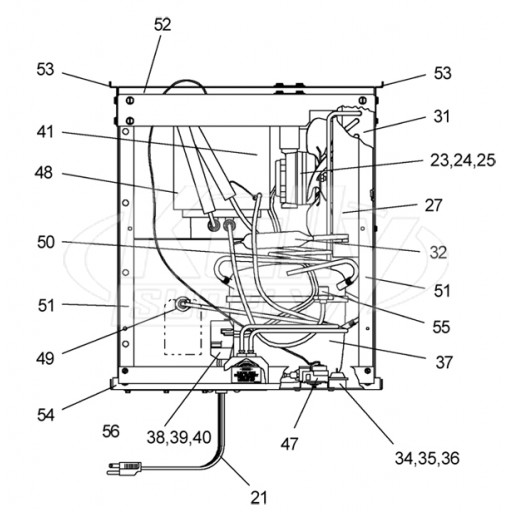

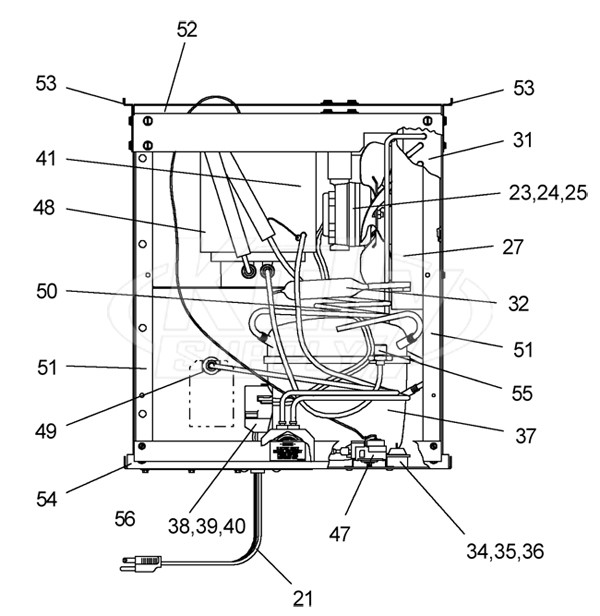

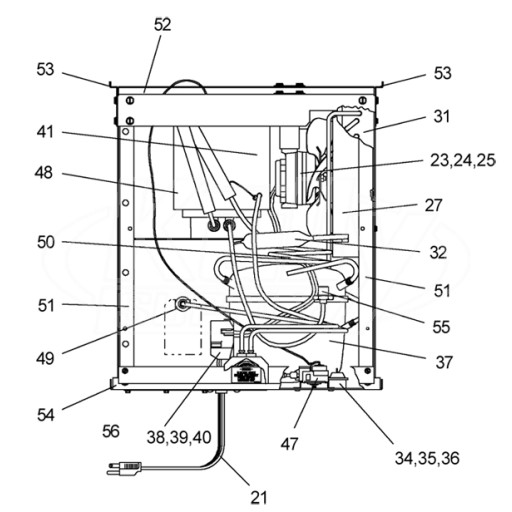

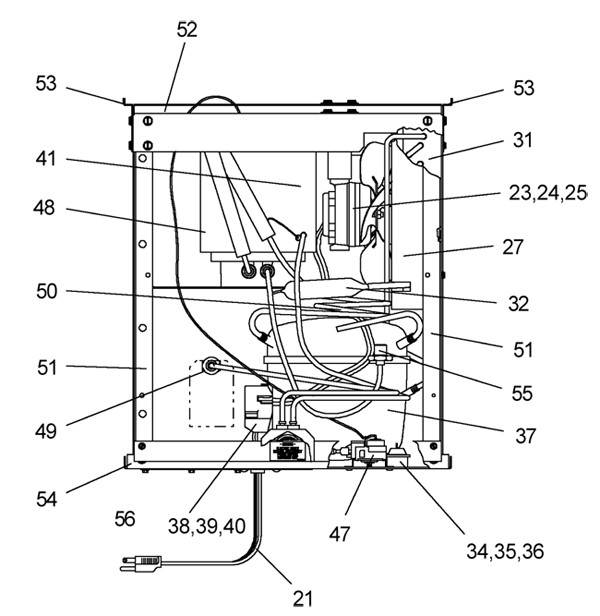

Halsey Taylor WC.B Parts Breakdown

Item #: breakdown-WC.B

Manufacturer: Halsey Taylor

Breakdown for models: WC8A-F-Q*1B, and WC8A-FS-Q*1B.

Spec Sheet

Part #	Part Details	Price	Options
1	Elkay 26588C Panel-Bottom Dispenser EHFA Item #: 135366 Learn More	$36.25
2	Elkay 51531C Pivot Block Item #: 102479 Learn More	$11.36	More Info
3	Elkay 11-14117-43-620 Nut 1/4" Item #: 102542 Learn More	More Info
4	Elkay 22901C Side Push Bar Bracket Item #: 102465 Learn More	$16.94
5	Elkay 26644C PANEL-RH NO PSH (PV) Item #: 135387 Learn More	$26.28
5	Elkay 26637C Panel-RH No Push (S) Item #: 135383 Learn More	$49.63
5	Elkay 26659C PANEL-RH PSH (PV) Item #: 135392 Learn More	$26.28
5	Elkay 26652C Right Hand Stainless Steel Panel Item #: 107097 Learn More	List Price: $69.00 $62.10 You Save 10%
6	Elkay 26614C PANEL-LH NO PSH (PV) Item #: 135375 Learn More	$27.38
6	Elkay 26607C Panel-LH No Push (S) Item #: 135372 Learn More	$49.63
6	Elkay 26629C PANEL-LH PSH (PV) Item #: 135380 Learn More	$26.28
6	Elkay 26622C Left Hand Stainless Steel Panel Item #: 107098 Learn More	List Price: $66.00 $59.40 You Save 10%
7	Elkay 26599C Panel Item #: 107754 Learn More	List Price: $48.00 $43.20 You Save 10%
7	Elkay 26600C Panel Front Disp SS Item #: 106310 Learn More	List Price: $90.00 $81.00 You Save 10%
8	Halsey Taylor 55859C Push Bar Adapter Item #: 102543 Learn More	$12.62
9	Elkay 55947C Grey Push Button Item #: 102729 Learn More	$14.57	More Info
10	Elkay 22900C Front Push Bar Bracket Item #: 102464 Learn More	$23.10
11	Elkay 70864C Torx Head Screw Item #: 102501 Learn More	$3.02
12	Elkay 50212C Pivot Block Pin Item #: 102477 Learn More	$7.56	More Info
13	Elkay 51667C Bumper, Press Bar Item #: 102819 Learn More	$9.37
14	Elkay 40045C Hex Nut Item #: 102472 Learn More	$31.44
15	Elkay 23003C Bracket, Regulator Mounting Item #: 102808 Learn More	$16.50
16	Elkay 15005C Cartridge Retaining Nut Item #: 102460 Learn More	$8.34	More Info
17	Elkay 61314C Valve Regulator Cartridge (Green Spring) Item #: 102539 Learn More	List Price: $46.00 $44.91 You Save 2%
18	Elkay Cartridge Holder 50986C Item #: 102478 Learn More	$48.12
19	Elkay 70935C Screw-Shoulder Item #: 106157 Learn More	$6.05
20	Elkay 11-26275-43-890 Screw 10/24 Item #: 102504 Learn More	$3.02
22	Elkay 27095C Fan Mounting Bracket Item #: 135476 Learn More	$13.86
24	Elkay 70018C Nut - Hex 1/4 - 20 (Discontinued) Item #: 106370 Learn More	More Info
25	Elkay 31490C Fan Motor (Discontinued) Item #: 102518 Learn More	More Info
26	Elkay 70009C Exp-Screw Furn w/AL Motor Item #: 106633 Learn More	More Info
27	Elkay 50186C Shroud, Fan ESWA Item #: 106374 Learn More	$17.72
29	Halsey Taylor Chrome-Plated Bubbler 51544C (Discontinued) Item #: 102522 Learn More	More Info
30	Elkay 0000001192 Flat Black Gasket Item #: 102517 Learn More	$12.60	More Info
31	Elkay 62152C Condenser (Discontinued) Item #: 107630 Learn More	More Info
31	Elkay 66743C Condenser (Discontinued) Item #: 133604 Learn More	More Info
32	Elkay 66202C Drier Item #: 106303 Learn More	$30.00
33	Elkay 26680C PANEL-WRAPPER PV Item #: 135395 Learn More	List Price: $178.00 $160.20 You Save 10%
33	Elkay 26682C PANEL-WRAPPER (SV) Item #: 135396 Learn More	List Price: $114.07 $93.35 You Save 18%
33	Elkay 22707C PANEL-WRAPPER N Item #: 135284 Learn More	List Price: $144.00 $129.60 You Save 10%
33	Elkay 22708C Wrapper SS Item #: 107100 Learn More	List Price: $271.00 $243.90 You Save 10%
34	Elkay 50144C GRMMT-COMPRESSOR Item #: 136255 Learn More	$9.07
35	Elkay 70184C HAIR PIN-COTTER Item #: 136592 Learn More	$2.75
36	Elkay 70418C WASHR-FLAT(SPECIAL)1.25OD Item #: 136623 Learn More	$4.99
37	Elkay 35960C Compressor Serv Pak 115V Item #: 102805 Learn More	List Price: $624.00 $561.60 You Save 10%
38	Elkay 19-42439-01-550 Cover Item #: 134479 Learn More	$6.13
39	Elkay 31025C Overload Relay (Discontinued) Item #: 102652 Learn More	More Info
39	Elkay 31039C Compressor Overload Relay Item #: 102672 Learn More	$46.59
40	Elkay 31797C Cover, Relay-Double Sided Item #: 106699 Learn More	$14.44	More Info
40	Elkay 35768C Cover Relay (Discontinued) Item #: 129695 Learn More	More Info
41	Elkay 66576C HEATX-BARRIER FREE (Discontinued) Item #: 136522 Learn More	More Info
42	Elkay 40572C Tailpipe 1-7/8" (Discontinued) Item #: 102649 Learn More	More Info
43	Elkay 40575C Drain Assembly Item #: 102619 Learn More	$44.42
44	Elkay 50074C Drain Gasket Item #: 102475 Learn More	$7.26
45	Elkay 26664C BASIN-1H WC8A Item #: 135394 Learn More	List Price: $316.80 $226.84 You Save 28%
46	Elkay 70208C SCREW-#10-24 X .38 PHTC Item #: 136595 Learn More	$4.99
47	Elkay 31513C Cold Control Thermostat Item #: 102467 Learn More	$43.20	More Info
48	Elkay 97539C Evaporator Assy. (Discontinued) Item #: 133508 Learn More	More Info
49	Elkay 55996C Strainer Item #: 102483 Learn More	$30.25
50	Elkay 70772C Plug-Drain Item #: 133606 Learn More	$21.00
51	Elkay 27093C Angle-Front Corner Item #: 135475 Learn More	$15.83
52	Elkay 27094C Bracket-Front Support Item #: 106790 Learn More	$26.40
54	Elkay 27097C Frame-Back/Bottom Item #: 135477 Learn More	List Price: $50.60 $49.68 You Save 2%
55	Elkay 10079C NIPPLE-BUBBLER 3/8 Item #: 135106 Learn More	$25.91
56	Elkay 35935C Run Capacitor (Discontinued) Item #: 107077 Learn More	More Info
