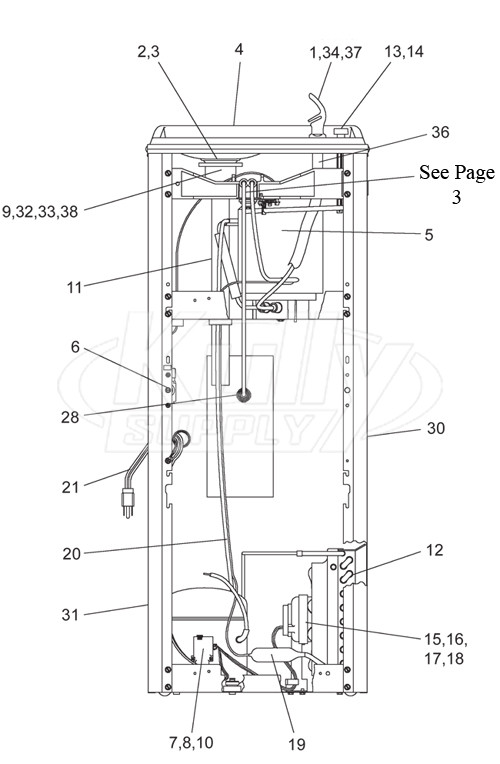

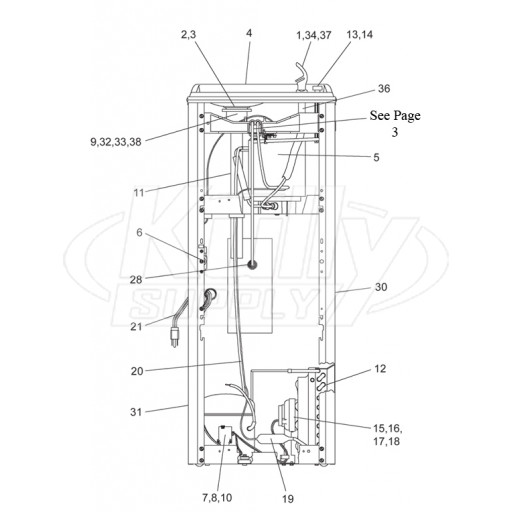

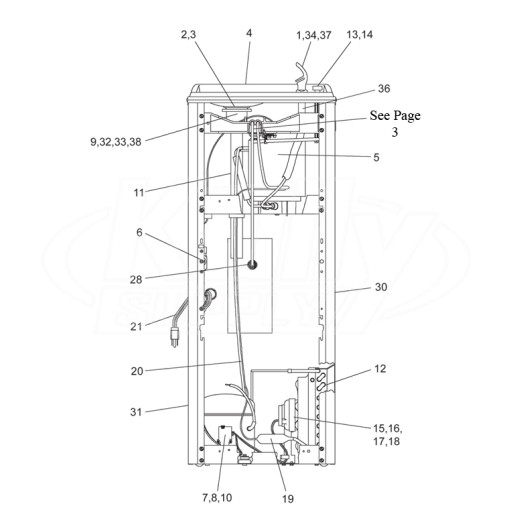

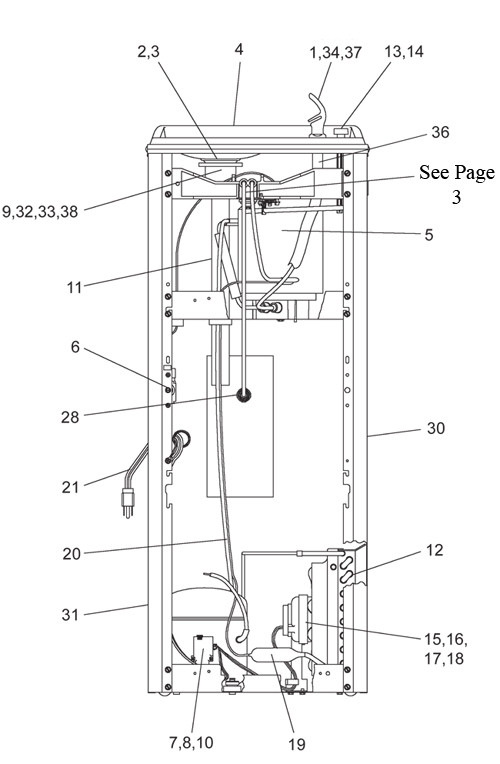

Halsey Taylor SCWT4.H Parts Breakdown

Halsey Taylor SCWT4.H Parts Breakdown

Item #: breakdown-SCWT4.H

Manufacturer: Halsey Taylor

Breakdown for model: SCWT4AQ*1H,2H.

Spec Sheet

Part #	Part Details	Price	Options
1,34	Halsey Taylor 98533C Chrome Bubbler Kit Item #: 140039 Learn More	List Price: $35.00 $34.65 You Save 1%
2	Elkay 10-26399-31-640 Drain Plug Item #: 102778 Learn More	$27.22
3	Halsey Taylor 16-02705-08-640 Strainer Plate Item #: 102520 Learn More	$14.82
4	Elkay 28346C Basin-SCWT Item #: 133991 Learn More	$177.69
5	Elkay 66504C Evaporator Assembly (Short) (Discontinued) Item #: 106290 Learn More	More Info
6	Elkay 31513C Cold Control Thermostat Item #: 102467 Learn More	$43.20	More Info
7	Elkay 36242C Compressor Serv. Pak GPH (Discontinued) Item #:* 134250 Learn More	More Info
8a	Elkay 36236C Overload Item #: 106664 Learn More	$30.25
8b	Elkay 36231C Drinking Fountain Relay Item #: 106665 Learn More	$50.87
9	Elkay 100147140560 Drain Gasket Item #: 102742 Learn More	$9.68
10 (8a & 8b)	Elkay 98535C Overload, Relay and Cover Kit - 115V Item #: 140041 Learn More	$45.50
11	Elkay 45698C Assy-Tailpipe Item #: 130894 Learn More	List Price: $63.00 $56.70 You Save 10%
12	Elkay 66251C CNDSR-134A-1ROW Item #: 136475 Learn More	List Price: $121.22 $99.12 You Save 18%
13 & 14	Elkay 60-14511-51-550 Push Button Kit Item #: 102532 Learn More	$31.35
13	Elkay 10-14534-31-640 Cap, Push Button (Discontinued) Item #: 102890 Learn More	More Info
14	Elkay 10-15075-31-550 Stem, Push Button Item #: 102891 Learn More	$15.40
15-17	Elkay 98775C Fan Motor Assembly Kit Item #: 162844 Learn More	List Price: $130.00 $128.70 You Save 1%
15	Elkay 31490C Fan Motor (Discontinued) Item #: 102518 Learn More	More Info
16	Elkay 10-42095-43-730 Fan Blade Item #: 102703 Learn More	$18.00
17	Elkay 70018C Nut - Hex 1/4 - 20 (Discontinued) Item #: 106370 Learn More	More Info
18	Elkay 40-26720-43-730 Fan Motor Bracket Item #: 102704 Learn More	$12.11
19	Elkay 66201C Drier Item #: 106072 Learn More	$30.00
20	Elkay 66301C HEATX-FD5 Item #: 136484 Learn More	$41.11
21	Elkay 19-26684-51-550 CORD -POWER 115V (SCWT) Item #: 134879 Learn More	$31.61
22, 26 & 27	Elkay 98531C Drinking Fountain Valve and Regulator Kit (Green Spring Cartridge) Item #: 140048 Learn More	List Price: $80.00 $79.20 You Save 1%
22	Elkay 15005C Cartridge Retaining Nut Item #: 102460 Learn More	$8.34	More Info
23	Elkay 26860C Regulator Lever Item #: 106113 Learn More	$12.10
24	Elkay 26861C Pivot Bracket Item #: 106114 Learn More	$12.70
25	Elkay 26862C Regulator Retaining Bracket Item #: 106115 Learn More	$12.10
26	Elkay Cartridge Holder 50986C Item #: 102478 Learn More	$48.12
27	Elkay 61314C Valve Regulator Cartridge (Green Spring) Item #: 102539 Learn More	List Price: $46.00 $44.91 You Save 2%
28	Elkay 55996C Strainer Item #: 102483 Learn More	$30.25
29	Elkay 55880C Regulator Bracket Item #: 102674 Learn More	$31.35
30	Elkay 40-15362-48-410 PANEL-RIGHT PV Item #: 134986 Learn More	$83.35
30	Elkay 40-15362-42-830 Panel-Right SS Item #: 134985 Learn More	$141.75
31	Elkay 40-15363-48-410 PANEL-LEFT (PV) Item #: 134989 Learn More	$81.77
31	Elkay 40-15363-42-830 Panel-Left SS Item #: 134988 Learn More	$144.49
32 & 38	Elkay 98684C Drain Elbow, Drain Gaskets, Drain Nut Item #: 162982 Learn More	$35.75
33	Elkay 55913C Adapter- Drain w/o Holes Item #: 102781 Learn More	$24.75
34	Elkay 56159C Plastic 1/4" Bubbler Nipple Item #: 102846 Learn More	More Info
35	Elkay 40-15074-48-410 PANEL-FRONT (PV) Item #: 134965 Learn More	$54.45
35	Elkay 40-15074-42-830 PANEL-FRONT (SS) Item #: 134964 Learn More	$127.47
36	Elkay 56092C Drinking Fountain Plastic Tubing 1/4" x 48" Item #: 102487 Learn More	$16.94
37	Elkay 0000001192 Flat Black Gasket Item #: 102517 Learn More	$12.60	More Info
38	Elkay 75589C Drain Gasket (Discontinued) Item #: 102740 Learn More	More Info
39	Elkay 11-10083-43-890 Screw-#10-24 X .62 HHMS Item #: 134743 Learn More	$2.75	More Info
40	Elkay 11-10510-43-550 NUT -LOCK 1/4-20 (NYLOK) Item #: 134744 Learn More	$6.13
41	Elkay 50770C BUSHING-SNAP 9/32 ID Item #: 136276 Learn More	$4.99
42	Elkay 11-00770-43-890 WASHR-FLAT .311ID STEEL Item #: 134717 Learn More	$6.13
43	Elkay 10-14182-51-550 SPRNG-COMPRESSION Item #: 134672 Learn More	$15.02
44	Elkay 70184C HAIR PIN-COTTER Item #: 136592 Learn More	$2.75
45	Elkay 40-15071-43-730 BRKT -ALIGNMENT Item #: 134963 Learn More	$27.47
46	Elkay 10-14735-43-730 Pull Rod (Discontinued) Item #: 134694 Learn More	More Info
47	Elkay 11-02082-43-890 PIN -FOOT LEVER Item #: 134727 Learn More	$15.59
48	Elkay 10-06312-42-700 FOOT PEDAL Item #: 134658 Learn More	$49.14
49	Elkay 10-14821-31-870 BSHNG-SNAP .343ID Item #: 134696 Learn More	$4.99
50	Halsey Taylor 1110884 Hex Nut (Discontinued) Item #: 1110884 Learn More	More Info
52	Elkay 40-15069-31-560 PLATE-TOE Item #: 134962 Learn More	$23.91
