Description

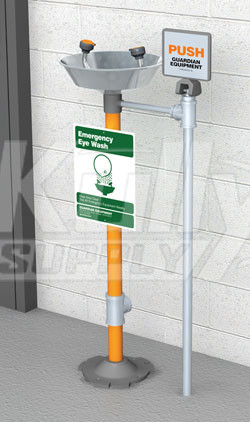

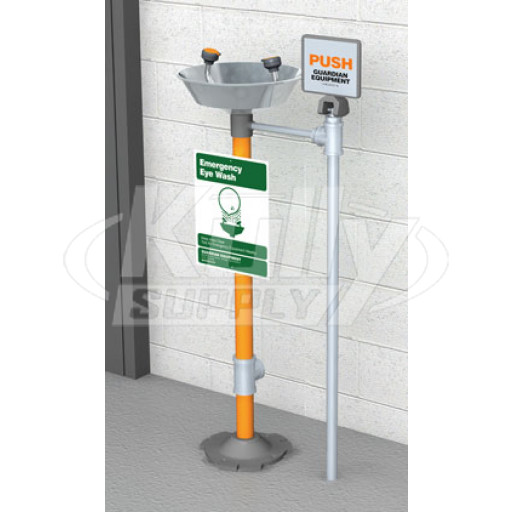

The Guardian GFR1825 Freeze-Resistant Pedestal-Mounted Eyewash (with Stainless Steel Receptor) features a valve and supply line buried below the frost line to protect against freezing. The unit is designed to drain completely after use so that no standing water remains in the unit and the possibility of freeze-up is eliminated. Since the unit is intended for use in cold weather conditions, consideration should be given to supplying unit with tempered water in accordance with ANSI Z358.1-2004.
- Sprayhead Assembly: Two GS-Plus sprayheads. Each sprayhead has a “flip top” dust cover and internal flow control.
- Valve: 3/4” IPS freeze-resistant valve with push plate. Valve body and supply line are buried below frost line to prevent freezing. Valve has 1/4” IPS bleed outlet to permit water standing in unit to drain out after use. Specify bury depth of valve when ordering.
- Receptor: 11-1/2” diameter stainless steel.
- Pipe and Fittings: Schedule 40 galvanized steel. Furnished with orange polyethylene covers for vertical piping for high visibility and corrosion resistance.
- Supply: 3/4” NPT male inlet.
- Waste: 1-1/4” NPT female outlet.
- Sign: ANSI-compliant identification sign
Manufacturer Info
Guardian Equipment is the innovative leader in the emergency eyewash and shower industry. Guardian is continually expanding their product offering to remain the best resource for emergency response needs.
