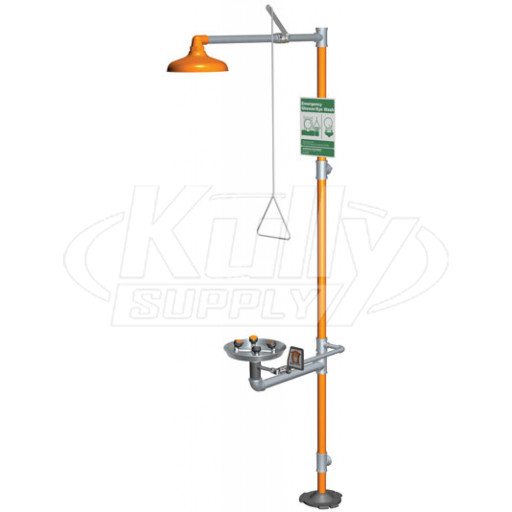

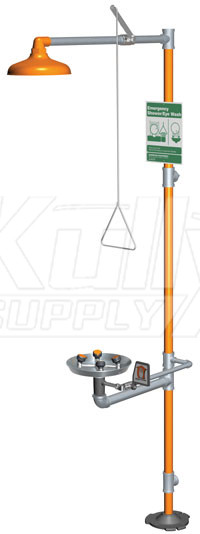

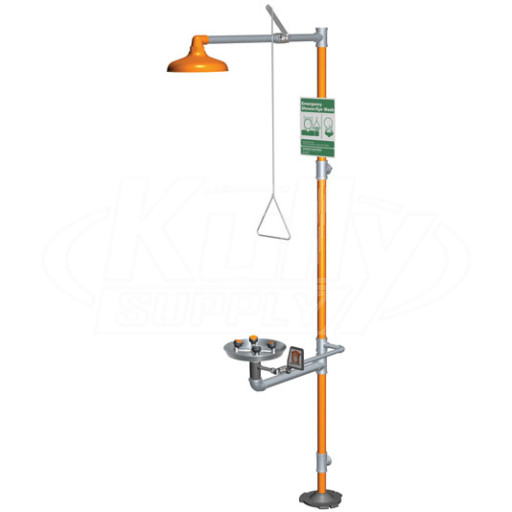

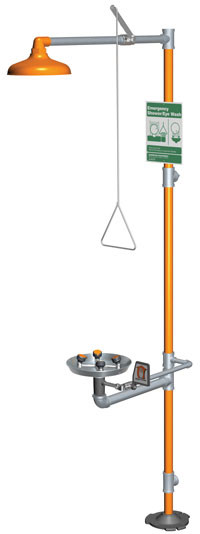

Description
- ADA Compliance: Unit complies with ADA requirements for accessibility by handicapped persons (maximum height and reach, minimum knee clearance and distance from obstructions).
- Showerhead: 10” diameter. Showerhead is orange ABS plastic (GBF1909).
- Shower Valve: 1” IPS chrome-plated brass stay-open ball valve with stainless steel actuating arm and 47-1/2” stainless steel pull rod.
- Sprayhead Assembly: Four GS-Plus sprayheads. Each sprayhead has a “flip-top” dust cover, internal flow control, and filter to remove impurities from water flow.
- Eye/Face Wash Receptor: 11-1/2” stainless steel.
- Eye/Face Wash Valve: 1/2” IPS chrome-plated brass stay-open ball valve with flag handle.
- Pipe and Fittings: Schedule 40 galvanized steel. Furnished with orange polyethylene covers on piping for high visibility and corrosion resistance.
- Supply: 1-1/4” NPT female top and side inlet.
- Waste: 1-1/4” NPT female outlet. Outlet can be positioned at either 8” or 20” above finished floor by reversing lower pipe nipples.
- Sign: ANSI-compliant identification sign.
Manufacturer Info
Guardian Equipment is the innovative leader in the emergency eyewash and shower industry. Guardian is continually expanding their product offering to remain the best resource for emergency response needs.
