Description
- ADA Compliance: When installed at recommended mounting height, unit complies with ADA requirements for accessibility by handicapped persons.
- Sprayhead Assembly: Two FS-Plus sprayheads mounted on supply arms. Each sprayhead has individually adjustable flow control and filter to remove impurities from water.
- Cover/Drain Pan: 16 gauge stainless steel combination cover and drain pan. Grasping “panic bar” handle and opening cover pulls sprayhead assembly down from vertical to horizontal position, activating water flow. While unit is in operation, waste water is collected in drain pan and returned into cabinet for drainage. Unit remains in operation until cover is returned to closed position.
- Valve: 1/2” IPS brass rotating plug-type valve. Furnished with Teflon-coated O-ring seals and in-line strainer to protect valve and spray heads from debris and foreign matter.

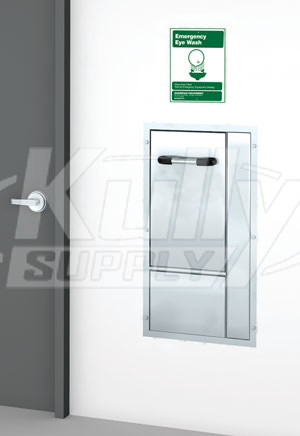

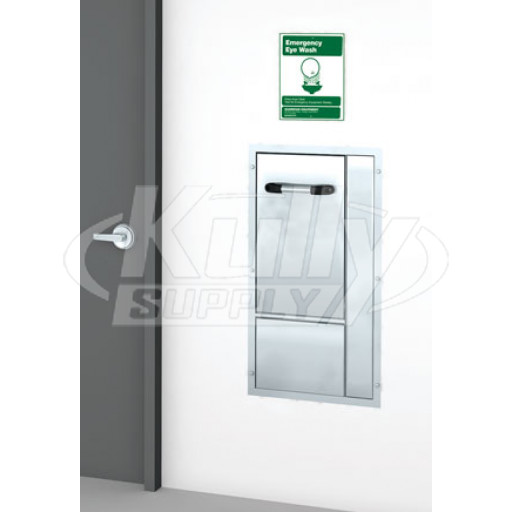

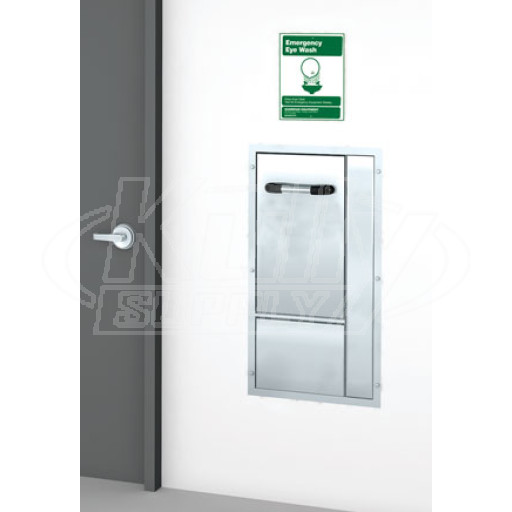

- Mounting: 16 gauge stainless steel cabinet. GBF1735DP cabinet has flanged rim for recessed mounting in wall. Unit fits in standard 3-5/8” deep wall. GBF1736DP cabinet is designed for mounting on wall surface.
- Supply: 1/2” IPS female inlet.
- Waste: 2” NPT female outlet.
- Sign: ANSI-compliant identification sign.
Manufacturer Info
Guardian Equipment is the innovative leader in the emergency eyewash and shower industry. Guardian is continually expanding their product offering to remain the best resource for emergency response needs.
