Description

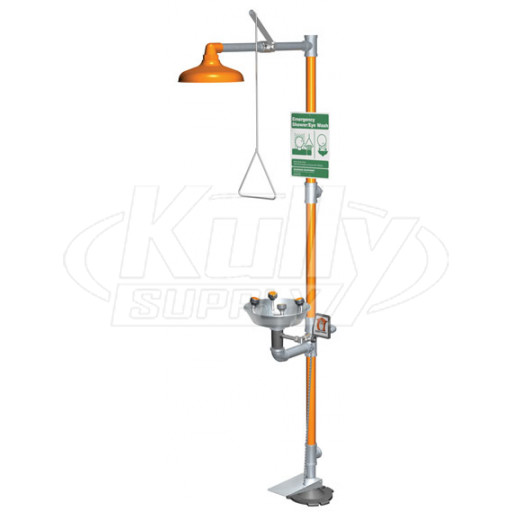

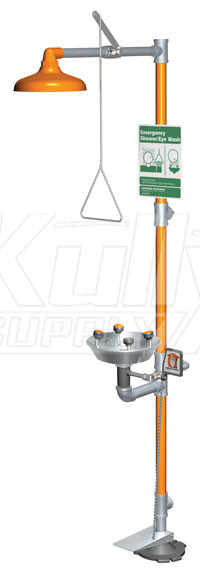

- Application: Combination WideArea™ eye/face wash and shower safety station. Eye/face wash is activated by flag handle or oot treadle. Four GS-Plus™ spray-type outlet heads deliver a flood of water over a wide area of coverage for complete rinsing of eyes and face.
- Shower Head: 10” diameter orange ABS plastic.
- Shower Valve: 1” IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon® seals. Furnished with stainless steel actuating arm and 29” stainless steel pull rod.
- Spray Head Assembly: Four GS-Plus™ spray heads. Each head has a “flip top” dust cover, internal flow control and filter to remove impurities from the water flow.
- Eye/Face Wash Bowl: 11 1/2” diameter. Bowl is orange ABS plastic.
- Eye/Face Wash Valve: 1/2” IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon® seals. Valve is activated by flag handle or foot treadle. Unit remains in operation until handle is returned to closed position.
- Pipe and Fittings: Schedule 40 galvanized steel. Furnished with orange polyethylene covers for vertical piping for high visibility and corrosion resistance.
- Supply: 1 1/4” NPT female top or side inlet.
- Waste: 1 1/4” NPT female outlet.
- Sign: Furnished with ANSI-compliant identification sign.
- Quality Assurance: Valve and spray head assemblies are factory assembled and water tested prior to shipment.
Manufacturer Info
Guardian Equipment is the innovative leader in the emergency eyewash and shower industry. Guardian is continually expanding their product offering to remain the best resource for emergency response needs.
