Description

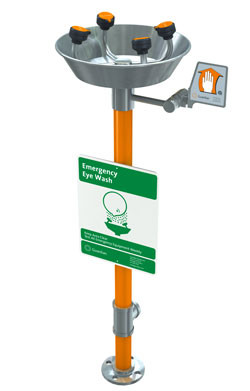

The Guardian G1794HFC is a free standing, pedestal mounted WideArea™ eye/face wash. Constructed entirely in stainless steel. Ideal for use in highly corrosive environments and clean room applications. Four GS-Plus™ spray-type outlet heads deliver a flood of water over a wide area of coverage for complete rinsing of eyes and face. Eye/face wash is activated by flag handle or foot treadle.
- Spray Head Assembly: Four GS-Plus™ spray heads. Each head has a “flip top” dust cover, internal flow control and filter to remove impurities from the water flow.
- Valve: 1/2” IPS stainless steel stay-open ball valve. Valve has stainless steel ball and Teflon® seals. Valve is activated by flag handle (G1794) or by both flag handle adn foot treadle (G1794HFC).
- Bowl: 11 1/2” diameter stainless steel.
- Pipe and Fittings: Schedule 40 stainless steel. Furnished with orange polyethylene covers on vertical piping for high visibility and corrosion resistance.
- Supply: 1/2” NPT female inlet.
- Waste: 1 1/4” NPT female outlet.
- Sign: ANSI-compliant identification sign.
- Quality Assurance: Valve, bowl and spray head assembly is factory assembled and water tested prior to shipment.
- HFC: Hand and foot control. Eye/face wash is activated by flag handle or foot treadle.
