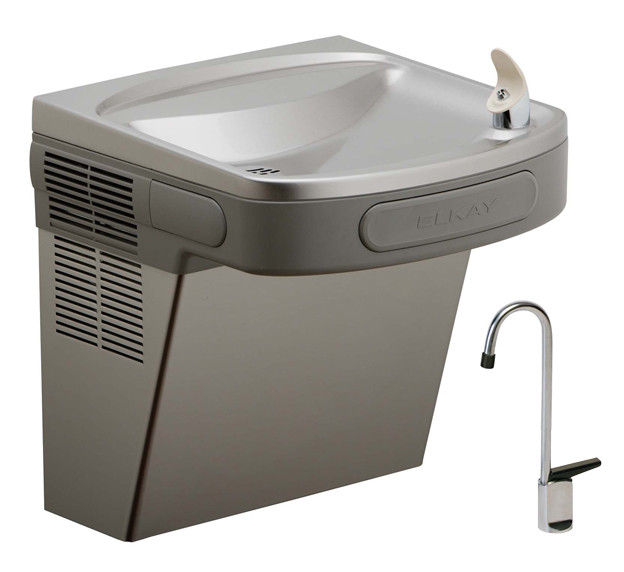

Elkay EZS8LF Drinking Fountain with Glass Filler

Description

GENERAL INFORMATION

• Self-contained, wall hung electric refrigerated water cooler w/ LK1110 glass filler
• Chilling capacity of 50°F drinking water, based upon 80°F inlet water and 90°F ambient

Features and Benefits

• Easy-Touch pushbar activation
• Extra deep basin minimizes splashing; with integral drain
• Available with Flexi-Guard® Safety bubbler or Vandal-resistantt bubbler (includes “VR” code in model no. see chart below)
• Valve with built-in flow regulator to provide constant stream from 20 to 105 psi water pressure
• Finish options: Impact-resistant vinyl coating or stainless steel wrapper
• Rated for Indoor use

Cooling System

• Compressor: Hermetically-sealed, reciprocating type, single phase. Sealed-in lifetime lubrication.
• Condenser: Fan cooled, copper tube with aluminum fins. Fan motor is permanently lubricated.
• Cooling Unit: Combination tube-tank type. Self-cleaning. Continuous copper tubing with stainless steel tank. Fully insulated with EPS foam that meets UL requirements for self-extinguishing material.
• Refrigerant Control: Refrigerant R134a is controlled by accurately calibrated capillary tube.
• Temperature Control: Easily accessible enclosed adjustable thermostat is factory preset. Requires no adjustment other than for altitude requirements.

Construction

• Stainless Steel basin with integral drain
• Galvanized structural steel cooler chassis provides structural integrity
• Cooler cabinet available as Light Gray Granite Vinyl Clad Steel or Stainless Steel (additional cost) construction
• Exclusive Flexi-Guard® Safety bubbler (option) utilizes an infused anti-microbial pliable polyester elastomer to prevent accidental mouth injuries. Flexes on impact.
• Vandal-resistant bubbler (option) is one-piece, heavy duty construction
