Description

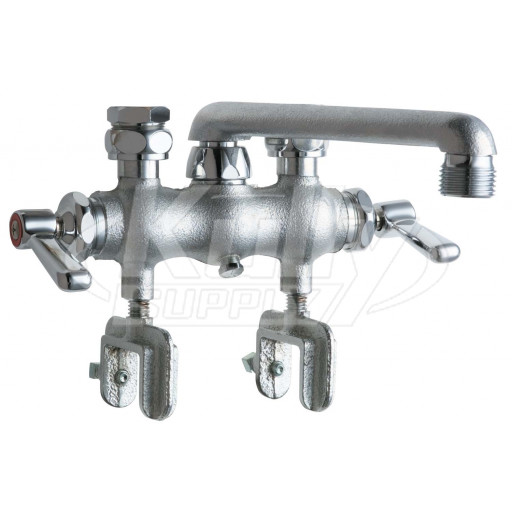

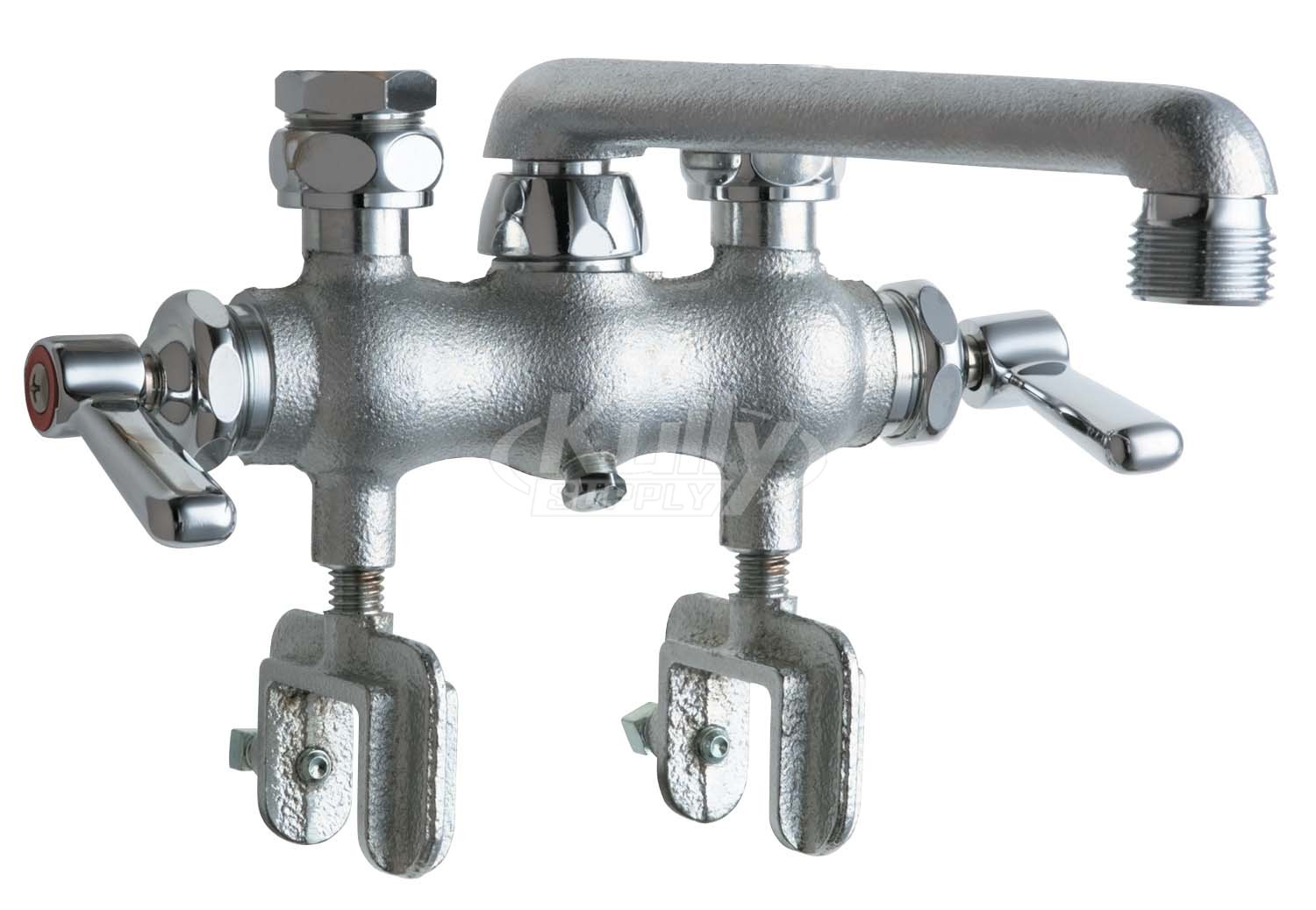

Chicago Faucets No. 686-RCF, Rough chrome plated solid cast brass construction. 6” cast swing spout with 3/4” male hose thread outlet. 2 3/8” lever handles with eight point tapered broach and secured color coded index buttons. Quaturn™ quarterturn renewable compression cartridge designed to close with water pressure with square tapered broach feature to help facilitate handle removal. 1/2” NPT female inlets on 3 3/8” centers. Includes mounting clamps. This product meets ADA requirements and is tested and certified to ASME A112.18.1 and CSA B125 industry standards.
PRODUCT TYPE
Laundry Tray Fitting
FEATURES & SPECIFICATIONS
- Rough chrome plated finish
- Solid brass body construction
- 6” Cast swing spout, catalog #S6
- 3/4” Male hose thread outlet, catalog #E2
- 2 3/8” Lever handles with secured color coded index buttons, catalog #369
- Quaturn™ quarter-turn renewable compression cartridge that closes with water pressure with tapered square broach to facilitate handle removal, catalog #1-100XT and #1-099XT
- 1/2” NPT female inlets on 3 3/8” centers
- Mounting clamps
PERFORMANCE SPECIFICATION
- Rated Operating Pressure: 20-125 PSI
- Rated Operating Temperature: 40-140° F
WARRANTY
- Lifetime Limited Faucet Warranty
- 5-Year Limited Cartridge Warranty
- 1-Year Limited Finish Warranty
COMPLIANT TO
- ASME A112.18.1
- NSF 61, Section 9
- CSA B125
- ADA
Manufacturer Info
The Chicago Faucet Company has offered commercial and residential products built to stand the test of time. A combination of the best engineering, finest materials and quality workmanship has made Chicago Faucets the specified choice in many of the finest building products.
