Description

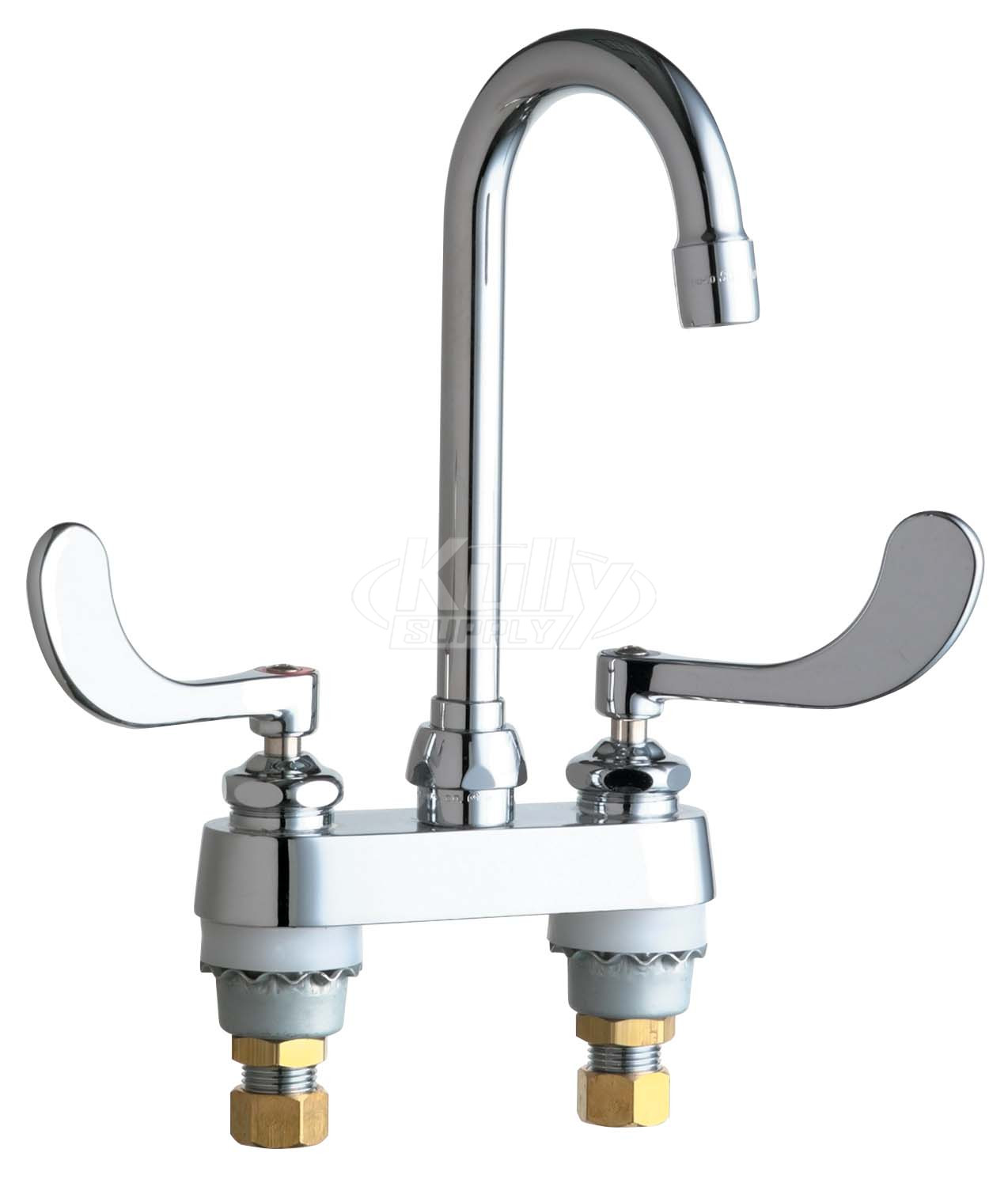

Chicago Faucets No. 895-317XKABCP, Polished chrome plated solid brass construction with integral shanks. 3 1/2” C-C rigid/swing field convertible gooseneck spout. 2.2 GPM pressure compensating aerator outlet. 4” Wristblade handles with eight point tapered broach and secured color coded index buttons. Quarter-turn ceramic disc cartridge with square tapered broach feature to help facilitate handle removal. Inlet shanks contain standard 1/2” NPSM threaded inlets with coupling nuts for connection to 3/8” or 1/2” standard flexible risers. Mounting hardware included. This product meets ADA requirements and is tested and certified to industry standards: ASME A112.18.1, NSF 61, Sec. 9 and CSA B125.
PRODUCT TYPE
Deck mounted 4” centerset faucet
FEATURES & SPECIFICATIONS
- Polished chrome plated finish
- Solid brass body construction
- 3 1/2” C-C Rigid/Swing field convertable gooseneck spout, catalog #GN1A
- 2.2 GPM (8.3 L/min) pressure compensating aerator outlet, catalog #E3
- 4” Wristblade metal handles with eight point tapered broach and secured color coded index buttons, catalog #317
- Quarter-turn ceramic disc cartridge with tapered square broach to facilitate handle removal, catalog #1-100XK and #1-099XK
- 1⁄2” NPSM supply inlets with coupling nuts for 3/8” or 1⁄2” flexible risers
- Mounting hardware included
PERFORMANCE SPECIFICATION
- Rated Operating Pressure: 20-125 PSI
- Rated Operating Temperature: 40-140° F
WARRANTY
- Lifetime Limited Faucet Warranty
- 5-Year Limited Cartridge Warranty
- 1-Year Limited Finish Warranty
COMPLIANT TO
- ASME A112.18.1M
- NSF 61, Sec. 9
- CSA B125
- ADA
Manufacturer Info
The Chicago Faucet Company has offered commercial and residential products built to stand the test of time. A combination of the best engineering, finest materials and quality workmanship has made Chicago Faucets the specified choice in many of the finest building products.
