Description

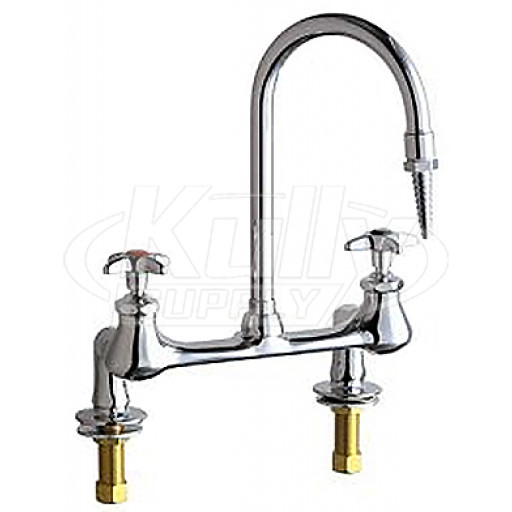

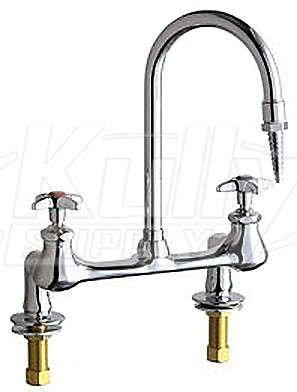

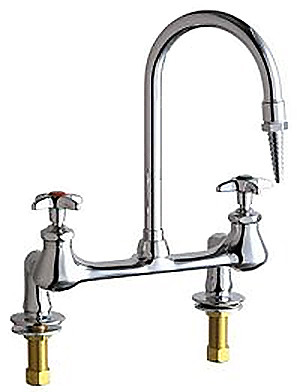

Chicago Faucets No. 946-CP polished chrome plated solid brass construction. 5 1/4” center to center rigid / swing field convertable gooseneck spout. Full flow laboratory serrated nozzle. 2 1/2” metal cross handle(s) with eight point tapered broach and cw and hw buttons. Slow compression rebuildable cartridge, opens and closes 360° for fine adjustment, closes with water pressure, features square tapered stem. Mounting hardware included. This product is tested and certified to industry standards: ASME A112.18.1, CSA B125.1, and Certified to NSF/ANSI 61, Section 9 by CSA.
Product Type
Deck Mounted Hot and Cold Water Inlet Faucet with Vacuum
Breaker
Features & Specifications
• 5 1/4” Rigid / Swing Gooseneck Spout
• Full Flow Nozzle
• 2 1/2” Cross Handle
• Slow Compression Operating Cartridge
• Angle 2 1/2” Inlet Supply Arm
• 2 11/16” Threaded Inlet and Shank Assembly
• Atmospheric Vacuum Breaker, Not Intended for Continuous
Pressure Applications
Performance Specification
• Rating Operating Pressure: 20-125 PSI
• Rated Operating Temperature: 40-140ºF
Warranty
• Lifetime Limited Faucet Warranty
• 5-Year Limited Cartridge Warranty
• 1-Year Limited Finish Warranty
Codes & Standards
• ASME A112.18.1
• CSA B125.1
• Certified to NSF/ANSI 61, Section 9 by CSA
