Description
Product Type

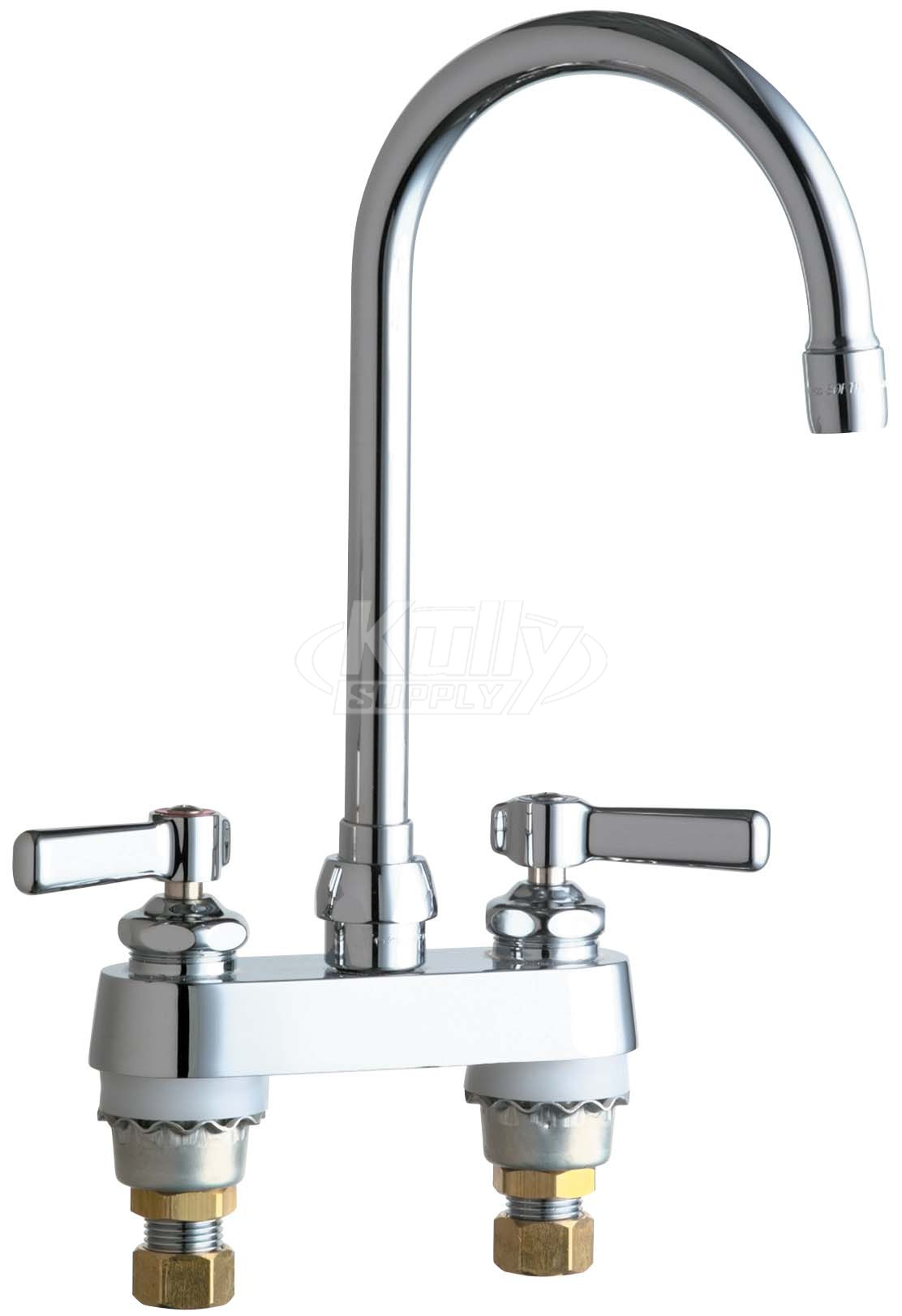

Deck mounted 4” centerset faucet
Features & Specifications
- Polished chrome plated finish
- Solid brass construction
- Rigid valve bodies
- 5 1/4” C-C rigid/Swing field convertible gooseneck spout, catalog #GN2A
- 2.2 GPM (8.3 L/min) pressure compensating aerator outlet, catalog #E3
- 2 3/8” Metal lever handles with eight point broach and secured color coded index buttons, catalog #369
- Quaturn™ quarter-turn renewable compression cartridge that closes with water pressure with tapered square broach to facilitate handle removal, catalog #1-100XT and #1-099XT
- 1⁄2” NPSM supply inlets with coupling nuts for 3/8” or 1⁄2” flexible risers
- Mounting hardware included
Performance Specification
- rated operating Pressure: 20-125 PSI
- rated operating Temperature: 40-140° F
Warranty
- Lifetime Limited Faucet Warranty
- 5-year Limited Cartridge Warranty
- 1-year Limited Finish Warranty
Compliant To
- ASME A112.18.1M
- NSF 61, Sec. 9
- CSA B125
- ADA
Manufacturer Info
The Chicago Faucet Company has offered commercial and residential products built to stand the test of time. A combination of the best engineering, finest materials and quality workmanship has made Chicago Faucets the specified choice in many of the finest building products.
