Description

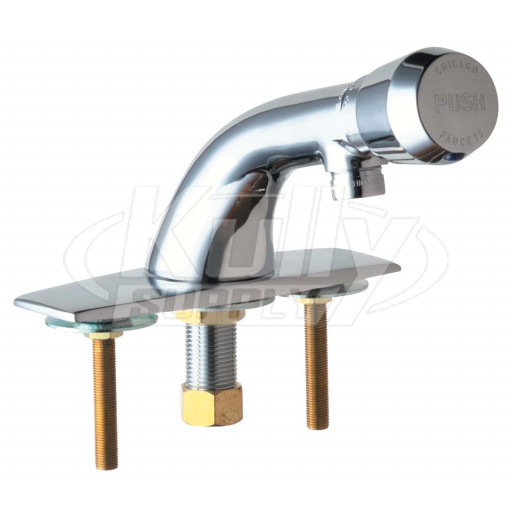

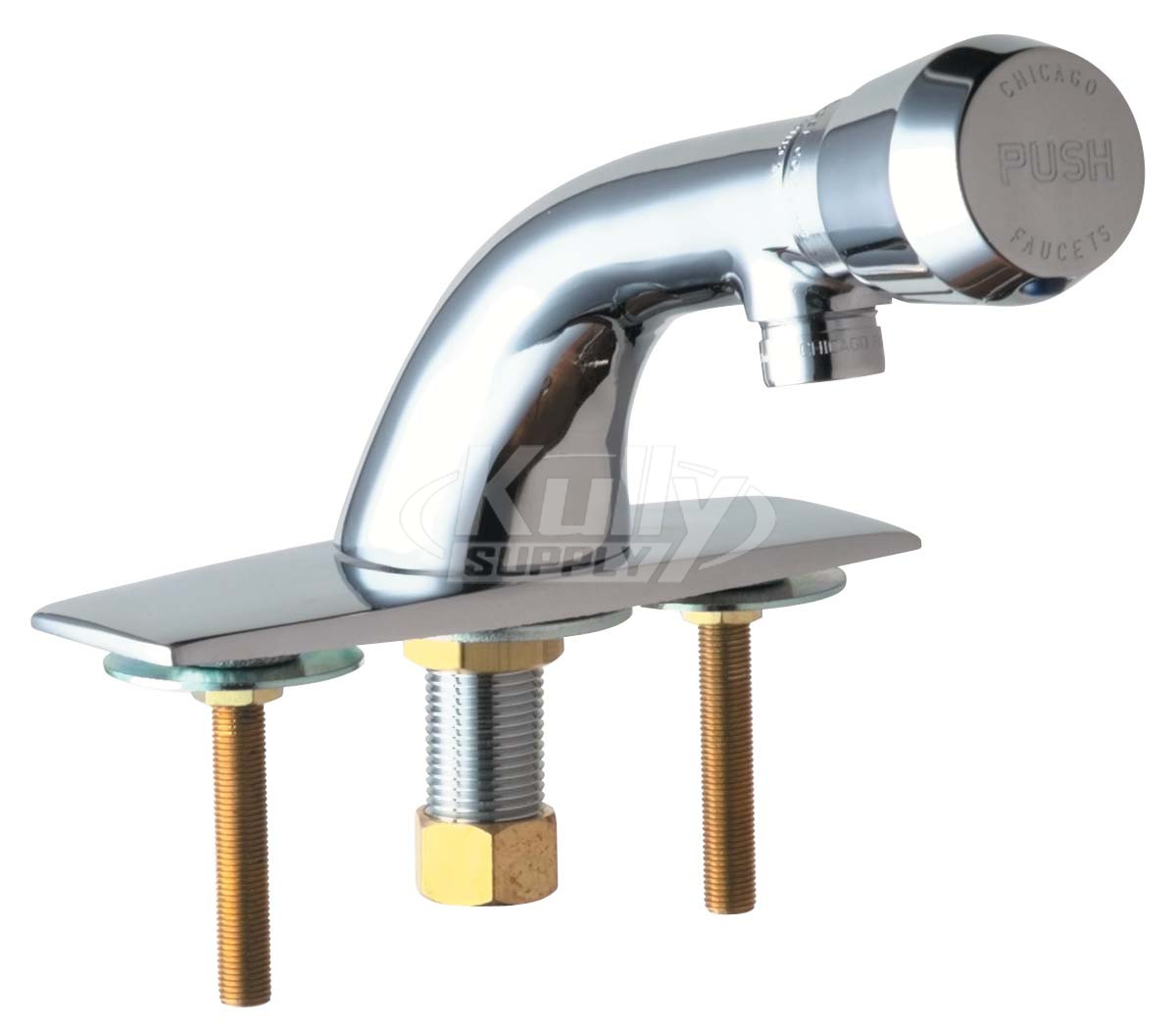

Chicago Faucets No. 857-E12-665PSHCP, polished chrome plated solid cast brass body construction with 4-1/8” integral spout and 4” C-C deck cover plate. Integral inlet shanks on 4” centers. 2.2 GPM pressure compensating aerator outlet. Tapered vandal-resistant metering handle with color coded index button. MVP™ push button, 0.25 gal/cycle self-closing metering cartridge. Inlet shanks contain standard 1/2” NPSM threaded inlets with coupling nuts for connection to 3/8” or 1/2” standard flexible risers. Mounting hardware included. This product meets ADA requirements and is tested and certified to industry standards: ASME A112.18.1, NSF 61 Sec. 9, and CSA B125.
Product Type
Lavatory Metering Sink Faucet
Features & Specifications
- 4 1/8” C-C Integral Cast Brass Spout
- 2.2 GPM (8.3 L/min) Pressure Compensating Softflo® Aerator
- 1 3/4” Round MVP™ Metering Handle with Hot and Cold Index Buttons
- MVP™ Metering Adjustable Self Closing Cartridge
- 1/2” NPSM Supply Inlets with Coupling Nut for 3/8” or 1/2” Flexible Riser
- 4” C-C Deck Cover Plate
Performance Specification
- Rating Operating Pressure: 20-125 PSI
- Rated Operating Temperature: 40-140°F
Warranty
- Lifetime Limited Faucet Warranty
- 5-Year Limited Cartridge Warranty
- 1-Year Limited Finish Warranty
Compliant To
- ASME A112.18.1M
- CSA B125.1
- ADA ANSI/ICC A117.1
Manufacturer Info
The Chicago Faucet Company has offered commercial and residential products built to stand the test of time. A combination of the best engineering, finest materials and quality workmanship has made Chicago Faucets the specified choice in many of the finest building products.
