Description
Product Type

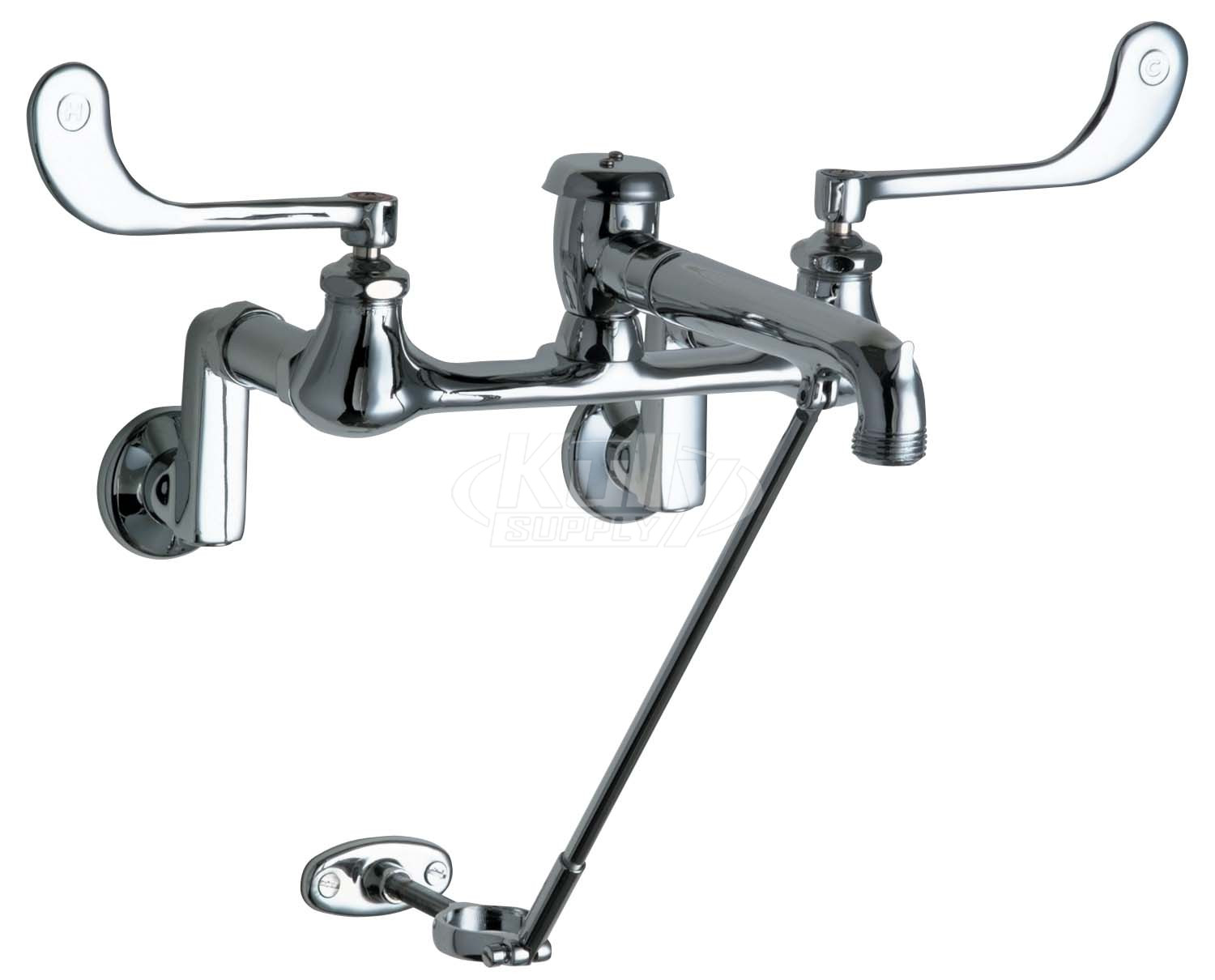

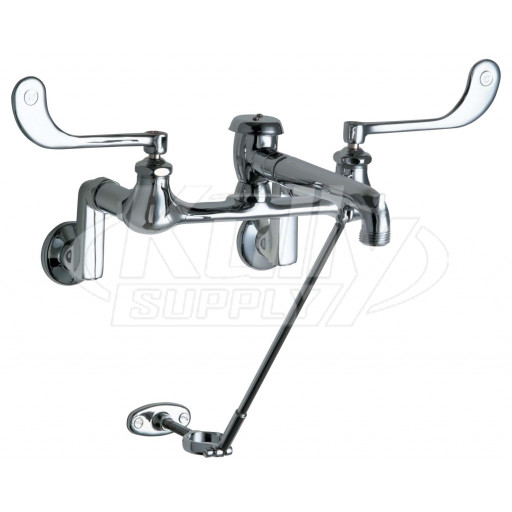

Wall Mounted Hot and Cold Water Sink Faucet
Features & Specifications
- 8” Body, Adjustable Arms 3” – 13”
- 7 1/2” Rigid Atmospheric Vacuum Breaker Cast Spout with Pail Hook and 3/4” Hose Thread Outlet Spout
- 6” Elbow Blade Handle
- Ceramic 1/4 Turn OperatingCartridge Cartridge
- Offset 2 1/2” Offset Supply Arm with Integral Shut-off Stop
- 2 1/2” Offset Adjustable Supply Arms with 1/2” NPT Female Thread Inlet and Integral Service Stop
- Plain Outlet End
- 2” Inlet Supply Extensions
- 7 1/2” Center to Center Atmospheric Vacuum Breaker Spout with Pail Hook
- Atmospheric Vacuum Breaker, Not Intended for Continuous Pressure Applications
Performance Specification
- Rating Operating Pressure: 20-125 PSI
- Rated Operating Temperature: 40-140ºF
Warranty
- Lifetime Limited Faucet Warranty
- 5-Year Limited Cartridge Warranty
- 1-Year Limited Finish Warranty
Codes & Standards
- ASME A112.18.1/CSA B125.1
- ADA ANSI/ICC A117.1
Manufacturer Info
The Chicago Faucet Company has offered commercial and residential products built to stand the test of time. A combination of the best engineering, finest materials and quality workmanship has made Chicago Faucets the specified choice in many of the finest building products.
