Description

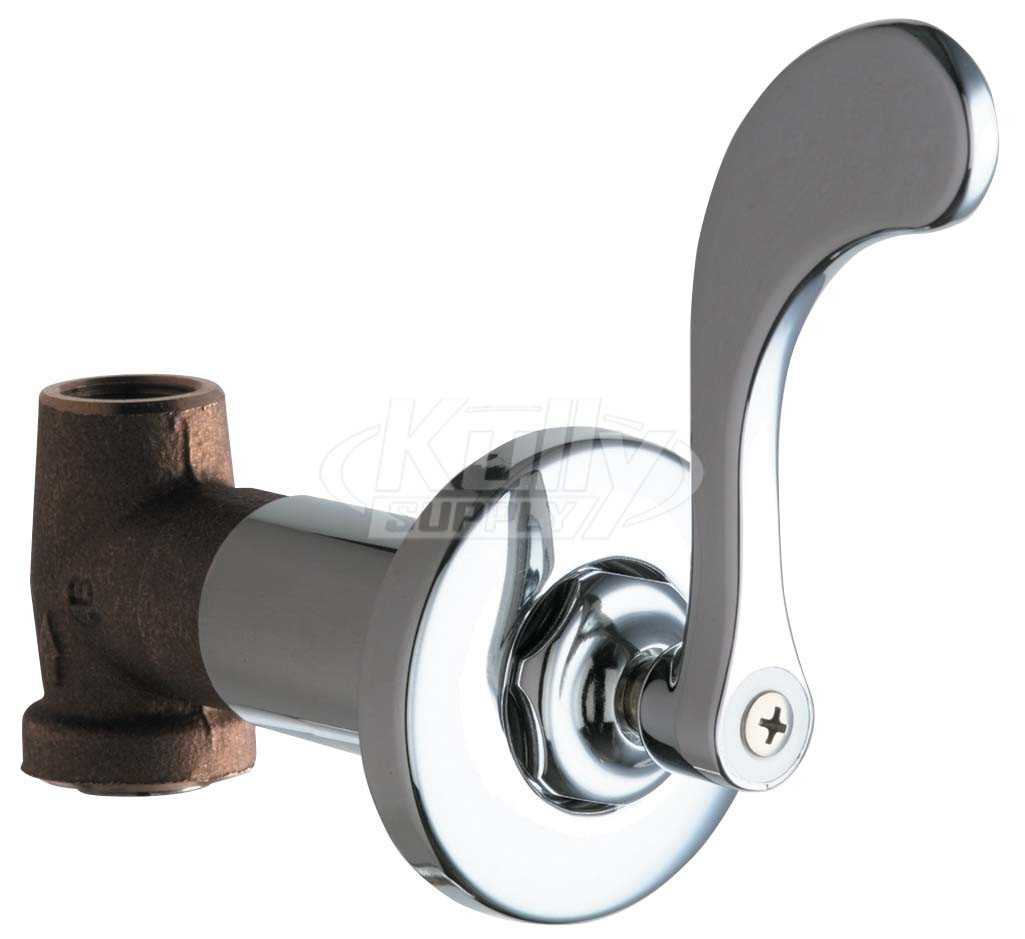

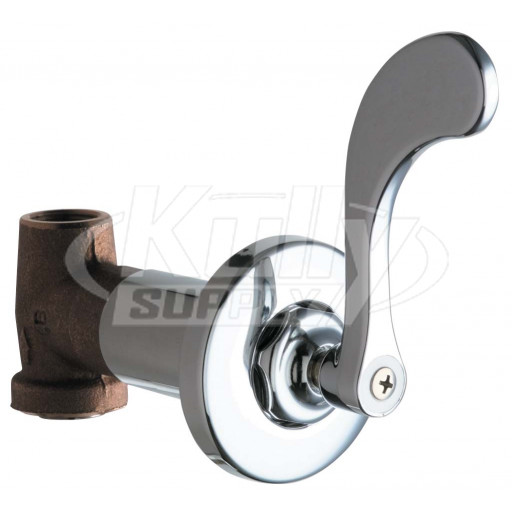

Chicago Faucets No. 770-317PLABCP, polished chrome plated solid brass body. 4” wristblade metal handles with eight-point tapered broach, secured white index button. Slow compression renewable cartridge that closes with water pressure, with square tapered broach feature to help facilitate handle removal. 1/2” NPT female inlet and 1/2” NPT female outlet. Wall flange. This product meets ADA requirements and is tested and certified to industry standards: ASME A112.18.1 and CSA B125
Product Type
Concealed In-Wall Straight Valve
Features & Specifications
- 1/2” NPT Female Thread Outlet
- 4” Metal Wristblade Handle with Secured White Service Button
- Slow Compression Operating Cartridge
- 1/2” NPT Female Thread Inlet
Performance Specification
- Rating Operating Pressure: 20-125 PSI
- Rated Operating Temperature: 40-140°F
Warranty
- Lifetime Limited Faucet Warranty
- 5-Year Limited Cartridge Warranty
- 1-Year Limited Finish Warranty
Compliant To
- ASME A112.18.1M
- CSA B125.1
- ADA ANSI/ICC A117.1
Manufacturer Info
The Chicago Faucet Company has offered commercial and residential products built to stand the test of time. A combination of the best engineering, finest materials and quality workmanship has made Chicago Faucets the specified choice in many of the finest building products.
