Description

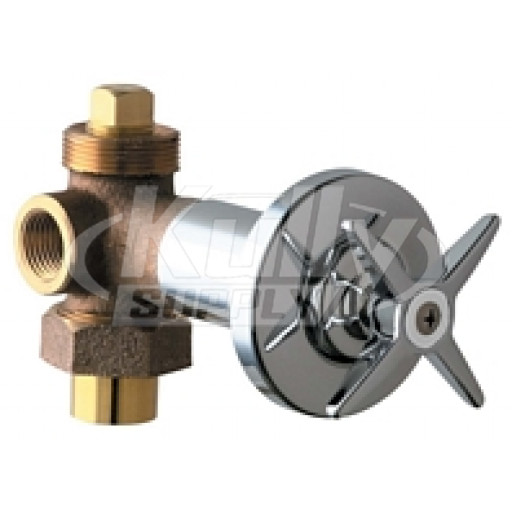

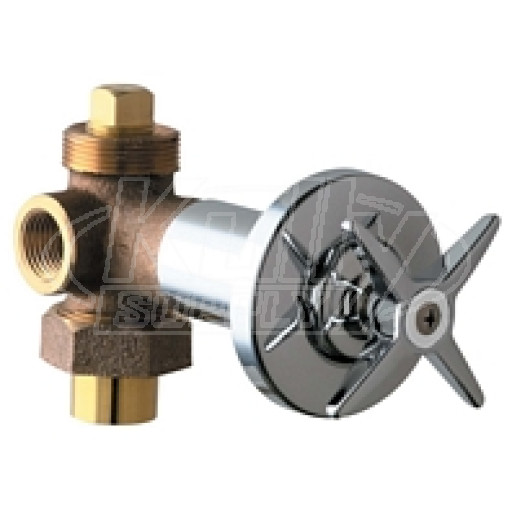

Chicago Faucets No. 769-PLABCP polished chrome plated solid brass construction. 3” metal cross handle(s) with eight point tapered broach and secured white button. Slow compression rebuildable cartridge, opens and closes 360° for fine adjustment, closes with water pressure, features square tapered stem. Integral inlet shank(s) contains standard 1/2” NPT female thread union inlets. Mounting hardware included. This product is tested and certified to industry standards: ASME A112.18.1M, and CSA B125.1.
Product Type
Remote Valves Mounted Concealed Angle Valve
Features & Specifications
- Concealed Angle Valve
- 3” Cross Handle
- Slow Compression Operating Cartridge
- 1/2” NPT Female Thread Inlet
- 1/2” NPT Female Thread Outlet
Performance Specification
- Rating Operating Pressure: 20-125 PSI
- Rated Operating Temperature: 40-140ºF
Warranty
- Lifetime Limited Faucet Warranty
- 5-Year Limited Cartridge Warranty
- 1-Year Limited Finish Warranty
Codes & Standards
- ASME A112.18.1
- CSA B125.1
Manufacturer Info
The Chicago Faucet Company has offered commercial and residential products built to stand the test of time. A combination of the best engineering, finest materials and quality workmanship has made Chicago Faucets the specified choice in many of the finest building products.
