Description

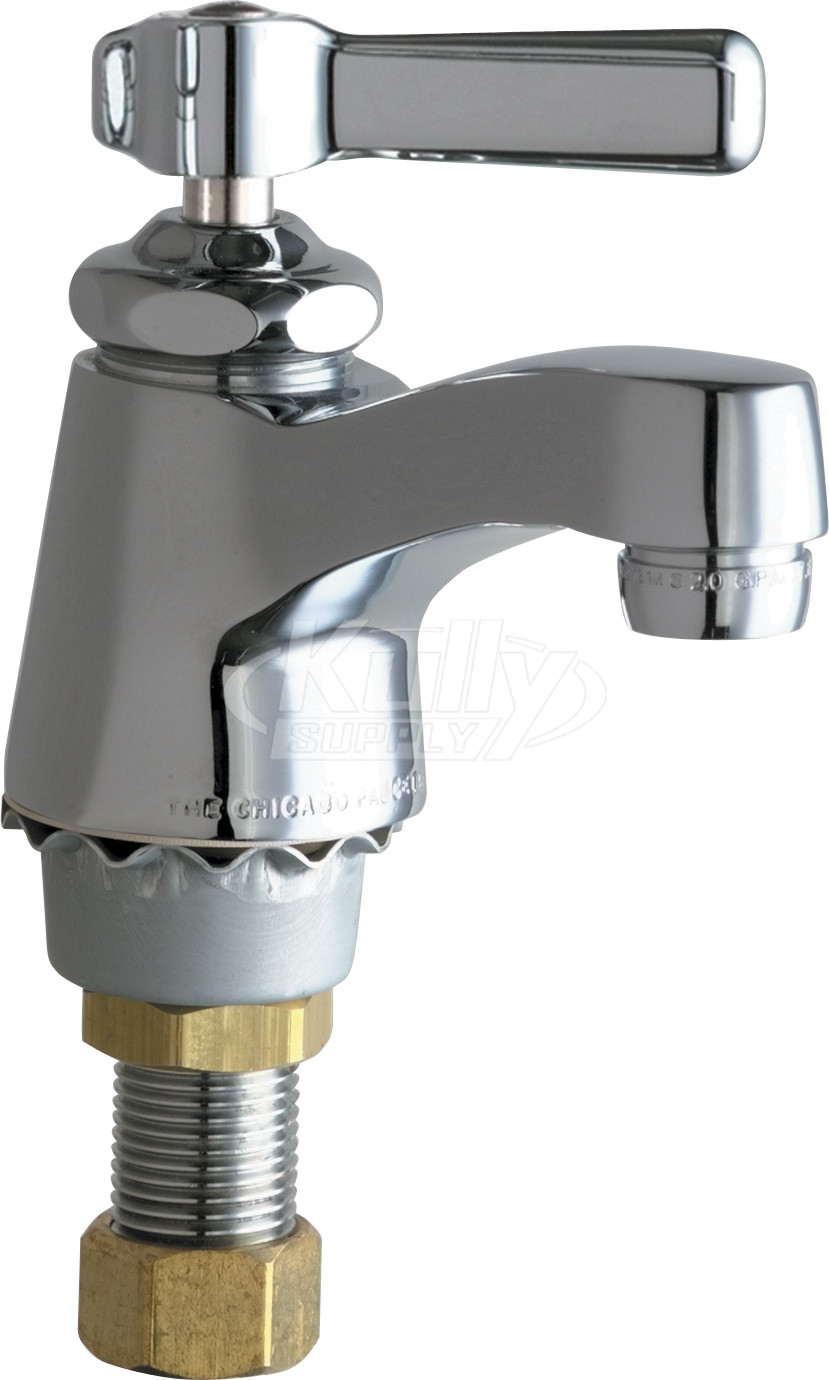

Chicago Faucets No. 730-COLDABCP, Polished chrome plated solid cast brass body construction with integral 3 3/8” C-C spout and integral inlet shank. 2.2 GPM pressure compensating aerator outlet. 2 3/8” lever handle with eight point tapered broach. Quaturn™ quarter-turn renewable compression cartridge designed to close with water pressure with square tapered broach feature to help facilitate handle removal. Inlet shank contains standard 1/2” NPSM threaded inlet with coupling nut for connection to 3/8” or 1/2” standard lavatory riser. All mounting hardware is included for standard lavatoryinstallations. This product is tested and certified to industry standards: ASME A112.18.1 and CSA B125.
PRODUCT TYPE
Angle urinal valve
FEATURES & SPECIFICATIONS
- Polished chrome plated finish
- Solid brass body construction
- Single water inlet
- 3 3/8” C-C Integral spout
- 2.2 GPM (8.3 L/min) pressure compensating aerator outlet, catalog #E12
- 2 3/8” Lever handle with secured color coded blue index button, catalog #369
- Quaturn™ quarter-turn renewable compression cartridge that closes with water pressure with tapered square broach to facilitate handle removal, catalog #1-099XT
- 1/2” NPSM supply inlet with coupling nut for 3/8” or 1/2” flexible riser
- Mounting hardware included
PERFORMANCE SPECIFICATION
- Rated Operating Pressure: 20-125 PSI
- Rated Operating Temperature: 40-140°F
WARRANTY
- Lifetime Limited Faucet Warranty
- 5-Year Limited Cartridge Warranty
- 1-Year Limited Finish Warranty
COMPLIANT TO
