Description

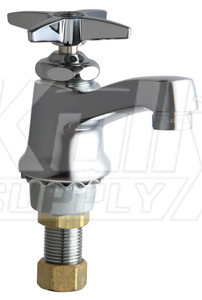

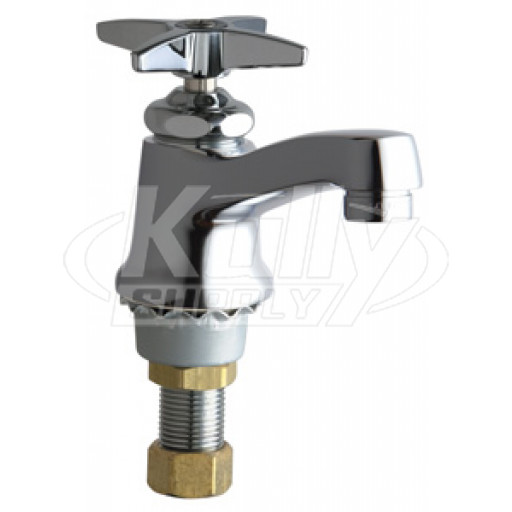

Chicago Faucets No. 700-COLDXKABCP polished chrome plated solid brass construction. 3 3/8” center to center integral cast brass spout. 2.2 GPM (8.3 L/min) pressure compensating Softflo aerator. 3” metal cross handle(s) with eight point tapered broach and secured blue button. Integral inlet shank(s) contains standard 1/2” NPSM supply inlet with coupling nut for 3/8” or 1/2” flexible riser. 3 3/8” center to center integral cast brass spout. Mounting hardware included. This product is tested and certified to industry standards: ASME A112.18.1M, CSA B125.1, and Certified to NSF/ANSI 61, Section 9 by CSA.
Product Type
Deck Mounted Single Supply Cold Water Sink Faucet
Features & Specifications
- Single Hole
- 2.2 GPM (8.3 L/min) Aerator
- 3” Cross Handle
- Ceramic 1/4 Turn OperatingCartridge Cartridge
- 1/2” NPSM Supply Inlet with Coupling Nut for 3/8” or 1/2” Flexible Riser
- 3 3/8” Center to Center Integral Cast Brass Spout
Performance Specification
- Rating Operating Pressure: 20-125 PSI
- Rated Operating Temperature: 40-140ºF
Warranty
- Lifetime Limited Faucet Warranty
- 5-Year Limited Cartridge Warranty
- 1-Year Limited Finish Warranty
Codes & Standards
- ASME A112.18.1
- CSA B125.1
- Certified to NSF/ANSI 61, Section 9 by CSA
Manufacturer Info
The Chicago Faucet Company has offered commercial and residential products built to stand the test of time. A combination of the best engineering, finest materials and quality workmanship has made Chicago Faucets the specified choice in many of the finest building products.
