Description

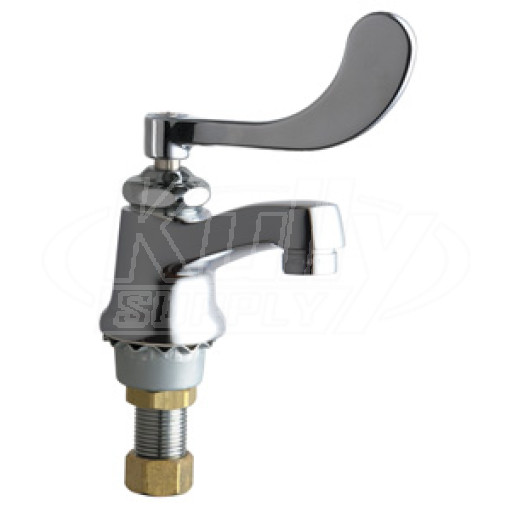

Chicago Faucets No. 700-317COLDABCP polished chrome plated solid brass construction. 3 3/8” center to center integral cast brass spout. 2.2 GPM (8.3 L/min) pressure compensating Softflo aerator. 4” metal wristblade handle(s) with sixteen point tapered broach and secured blue button. Quaturn™ rebuildable compression cartridge, opens and closes 90°, closes with water pressure, features square tapered stem. Integral inlet shank(s) contains standard 1/2” NPSM supply inlet with coupling nut for 3/8” or 1/2” flexible riser. 3 3/8” center to center integral cast brass spout. Mounting hardware included. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASME A112.18.1M, CSA B125.1, and Certified to NSF/ANSI 61, Section 9 by CSA.
Product Type
Deck Mounted Single Supply Cold Water Sink Faucet
Features & Specifications
- Single Hole
- 2.2 GPM (8.3 L/min) Aerator
- 4” Wristblade Handle
- Quaturn Compression Operating Cartridge
- 1/2” NPSM Supply Inlet with Coupling Nut for 3/8” or 1/2” Flexible Riser
- 3 3/8” Center to Center Integral Cast Brass Spout
Performance Specification
- Rating Operating Pressure: 20-125 PSI
- Rated Operating Temperature: 40-140ºF
Warranty
- Lifetime Limited Faucet Warranty
- 5-Year Limited Cartridge Warranty
- 1-Year Limited Finish Warranty
Codes & Standards
- ASME A112.18.1
- CSA B125.1
- Certified to NSF/ANSI 61, Section 9 by CSA
- ADA ANSI/ICC A117.1
Manufacturer Info
The Chicago Faucet Company has offered commercial and residential products built to stand the test of time. A combination of the best engineering, finest materials and quality workmanship has made Chicago Faucets the specified choice in many of the finest building products.
