Description

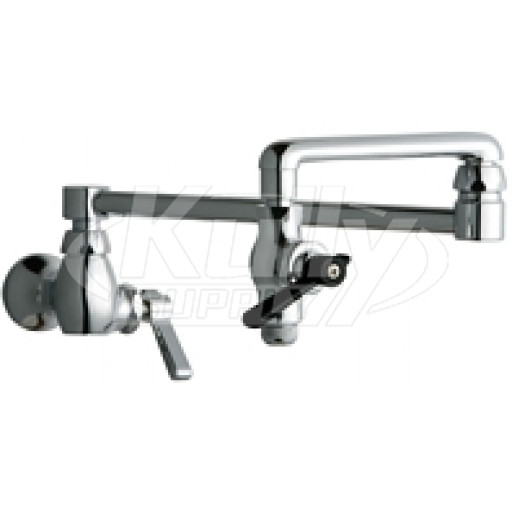

Chicago Faucets No. 515-ABCP polished chrome plated solid brass construction. 18” center to center swing double jointed spout. Full flow control valve with e1 quixtop screen for quick fill and high volume water applications outlet. 2 3/8” metal lever handle(s) with eight point tapered broach and secured blue button. Quaturn™ rebuildable compression cartridge, opens and closes 90°, closes with water pressure, features square tapered stem. Integral inlet shank(s) contains standard 1/2” NPT female thread inlet with integral wall flange. Mounting hardware included. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASME A112.18.1M, CSA B125.1, and Certified to NSF/ANSI 61, Section 9 by CSA.
Product Type
Wall Mounted Pot and Kettle Filler
Features & Specifications
• Single Hole
• 18” Swing Double Jointed Spout
• Full Flow Outlet
• 2 3/8” Lever Handle
• Quaturn Compression Operating Cartridge
• 1/2” NPT Female Thread Inlet with Integral Wall Flange
Performance Specification
• Rating Operating Pressure: 20-125 PSI
• Rated Operating Temperature: 40-140ºF
Warranty
• Lifetime Limited Faucet Warranty
• 5-Year Limited Cartridge Warranty
• 1-Year Limited Finish Warranty
Codes & Standards
• ASME A112.18.1M
• CSA B125.1
• Certified to NSF/ANSI 61, Section 9 by CSA
• ADA ANSI/ICC A117.1
Manufacturer Info
The Chicago Faucet Company has offered commercial and residential products built to stand the test of time. A combination of the best engineering, finest materials and quality workmanship has made Chicago Faucets the specified choice in many of the finest building products.
