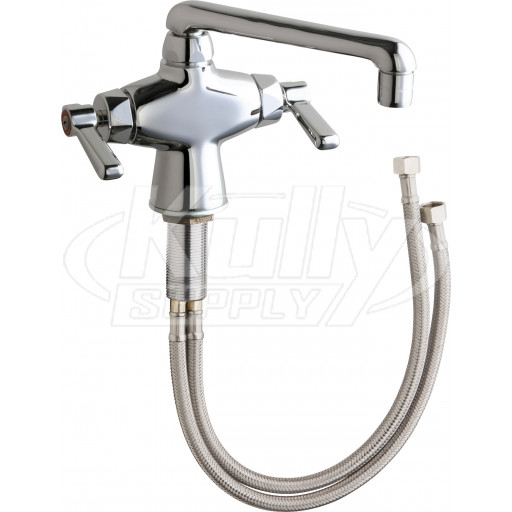

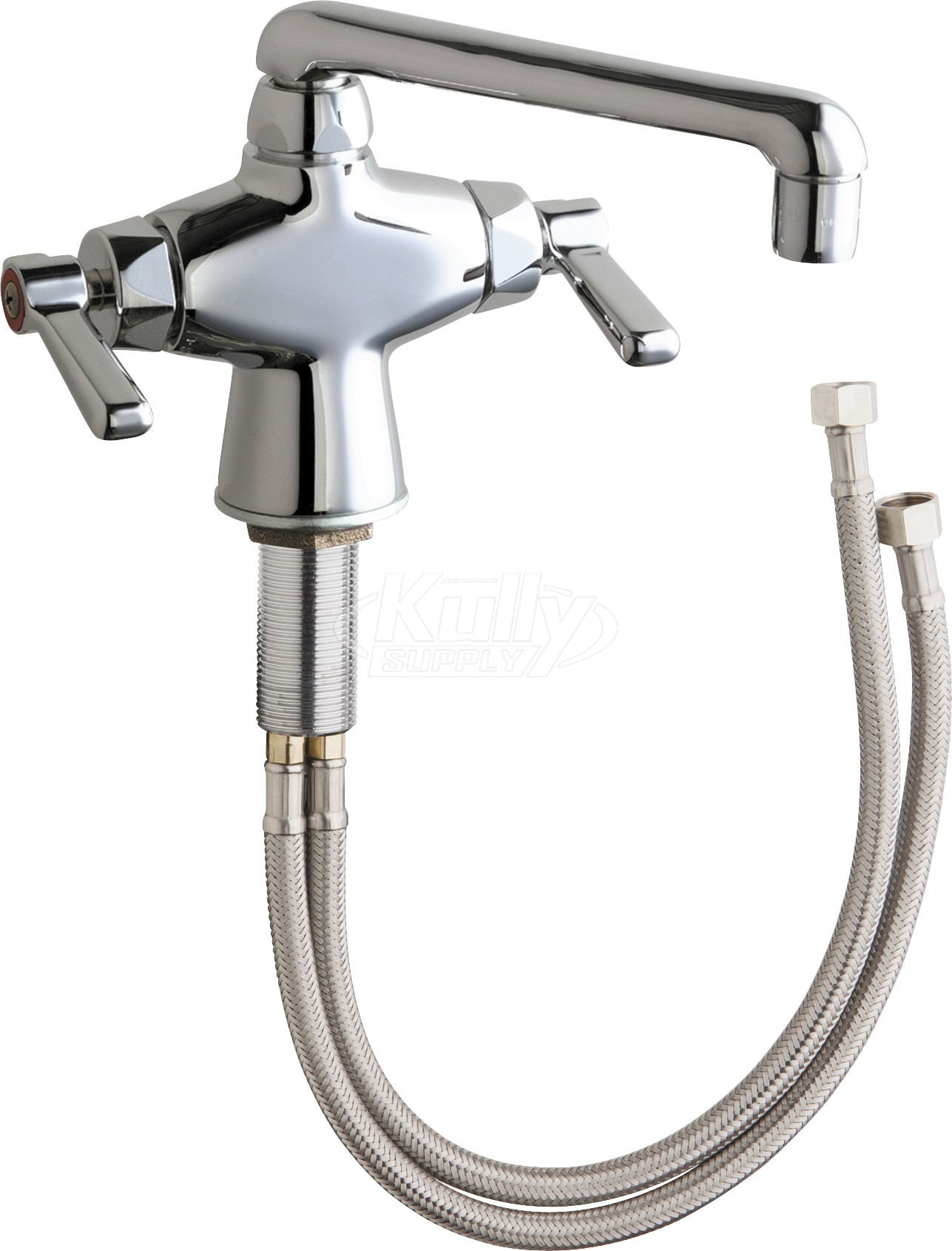

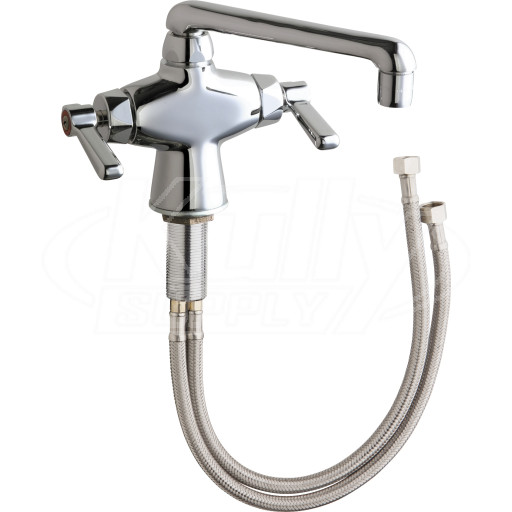

Chicago 51-ABCP Hot and Cold Water Mixing Sink Faucet

Description

Chicago Faucets No. 51-ABCP, polished chrome plated solid brass construction with integral shanks. 6” C-C cast swing spout. 2.2 GPM pressure compensating aerator outlet. 2-3/8” lever metal handles with eight-point tapered broach and secured, color-coded index buttons. Quaturn™ quarter-turn compression cartridge designed to close with water pressure, with square renewable tapered broach feature to help facilitate handle removal. 3/8” copper supply tubes and all mounting hardware included for standard lavatory installations. This product meets ADA requirements and is tested and certified to industry standards: ASME A112.18.1, NSF 61 Sec. 9, and CSA B125.

Product Type

Combination Sink Faucet

Features & Specifications

• 6” C-C Cast Brass Swing Spout
• 2.2 GPM (8.3 L/min) Pressure Compensating Softflo® Aerator
• 2 3/8” Metal Lever Handles with Secured Red and Blue Service Buttons
• Quaturn™ Operating Cartridges
• 3/8” O.D. Copper Supply Tubes

Performance Specification

• Rating Operating Pressure: 20-125 PSI
• Rated Operating Temperature: 40-140°F

Warranty

• Lifetime Limited Faucet Warranty
• 5-Year Limited Cartridge Warranty
• 1-Year Limited Finish Warranty

Compliant To

• ASME A112.18.1M
• CSA B125.1
• NSF 61, Section 9
• ADA ANSI/ICC A117.1

Manufacturer Info

The Chicago Faucet Company has offered commercial and residential products built to stand the test of time. A combination of the best engineering, finest materials and quality workmanship has made Chicago Faucets the specified choice in many of the finest building products.
