Description

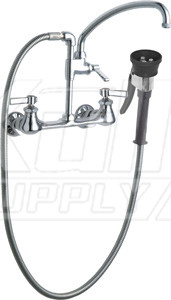

Chicago Faucets No. 509-GCTFABCP tin plated inside, polished chrome plated outside solid brass construction. 9 1/2” center to center vandal proof swing L type spout. Full flow quixtop with single screen design outlet. 2 3/8” metal lever handle(s) with eight point tapered broach and secured blue and red buttons. Quaturn™ rebuildable compression cartridge, opens and closes 90°, closes with water pressure, features square tapered stem. 60” flexible stainless steel hose. Mounting hardware included. This product is tested and certified to industry standards: ASME A112.18.1M, CSA B125.1, and Certified to NSF/ANSI 61, Section 9 by CSA.
Product Type
Wall Mounted Pot Filler with Triple Force Pre-Rinse Spray Valve
Features & Specifications
• 8” Body, Adjustable Arms 7 1/4” – 8 3/4”
• 9 1/2” Vandal Proof Swing L Type Spout
• Full Flow Outlet
• 2 3/8” Lever Handle
• Quaturn Compression Operating Cartridge
• Offset 3/8” Offset Inlet Supply Arm with Integral Check
• 60” Flexible Stainless Steel Hose
Performance Specification
• Rating Operating Pressure: 20-125 PSI
• Rated Operating Temperature: 40-140ºF
Warranty
• Lifetime Limited Faucet Warranty
• 5-Year Limited Cartridge Warranty
• 1-Year Limited Finish Warranty
Codes & Standards
• ASME A112.18.1M
• CSA B125.1
• Certified to NSF/ANSI 61, Section 9 by CSA
Manufacturer Info
The Chicago Faucet Company has offered commercial and residential products built to stand the test of time. A combination of the best engineering, finest materials and quality workmanship has made Chicago Faucets the specified choice in many of the finest building products.
