Description
Product Type

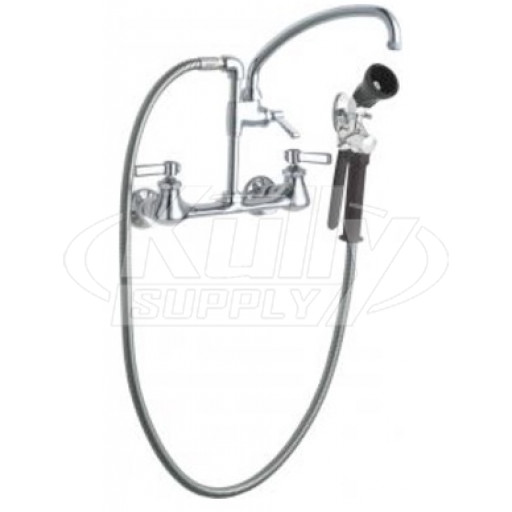

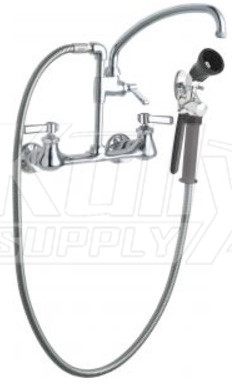

Wall Mounted 8” Body, Adjustable Arms 7-1/4” – 8-3/4” Pre-Rinse Fitting with 613-A Adapta-Faucet
Standard Features & Specifications
- 8” Body, Adjustable Arms 7-1/4” – 8-3/4”
- 1.0 GPM @ 60 PSI Spray
- 2-3/8” Vandal Proof Lever Handle
- Quaturn Compression Operating Cartridge
- 3/8” Offset Inlet Supply Arm with Integral Check with 1/2” NPT Female Thread Inlet.
- Secondary Control Valve, 9-1/2” L Type Swing Spout, Full Flow Outlet, 2-3/8” Vandal Proof Lever Handle, Quaturn Compression Operating Cartridge
- 2 5/16” Diameter Slip Flange
- 60” Flexible Stainless Steel Hose
- Compatible with Fisher and T&S Hoses
- ECAST® design provides durable construction with total lead content equal to or less than 0.25% by weighted average
Performance Specifications
- Rated Operating Pressure: 20-125 PSI
- Rated Operating Temperature: 40-140ºF
Warranty
- Lifetime Limited Faucet Warranty
- 5-Year Limited Cartridge Warranty
- 1-Year Limited Finish Warranty
Codes & Standards
- ASME A112.18.1/CSA B125.1
- Certified to NSF/ANSI 61, Section 9 by CSA
- California Health and Safety Code 116875 (AB1953-2006)
- Vermont Bill S.152
- NSF/ANSI 372 Low Lead Content
Manufacturer Info
The Chicago Faucet Company has offered commercial and residential products built to stand the test of time. A combination of the best engineering, finest materials and quality workmanship has made Chicago Faucets the specified choice in many of the finest building products.
