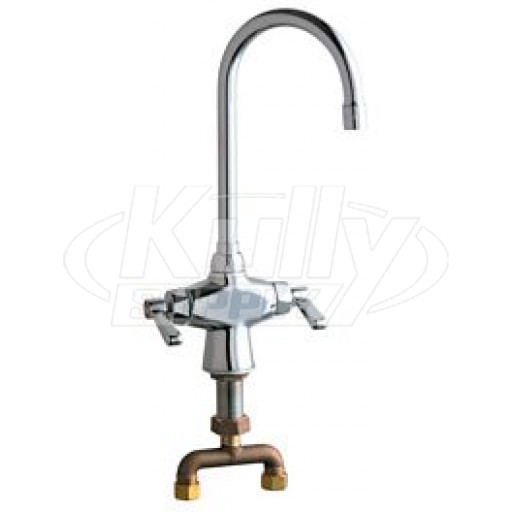

Chicago 50-TXKABCP Hot and Cold Water Mixing Sink Faucet

Description

Chicago Faucets No. 50-TXKABCP polished chrome plated solid brass construction. 5 1/4” center to center rigid / swing field convertable gooseneck spout. 2.2 GPM (8.3 L/min) pressure compensating Softflo aerator. 2 3/8” metal lever handle(s) with eight point tapered broach and secured blue and red buttons. 1/2” NPSM supply inlets and coupling nut for 3/8” or 1/2” flexible riser. 3 1/2” inlet connection tee. Mounting hardware included. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASME A112.18.1M, CSA B125.1, and Certified to NSF/ANSI 61, Section 9 by CSA.

Product Type

Deck Mounted Hot and Cold Water Mixing Sink Faucet

Features & Specifications

• Single Hole
• 5 1/4” Rigid / Swing Gooseneck Spout
• 2.2 GPM (8.3 L/min) Aerator
• 2 3/8” Lever Handle
• Ceramic 1/4 Turn OperatingCartridge Cartridge
• Tee Connection
• 1/2” NPSM Supply Inlets and Coupling Nut for 3/8” or 1/2” Flexible Riser
• 3 1/2” Inlet Connection Tee

Performance Specification

• Rating Operating Pressure: 20-125 PSI
• Rated Operating Temperature: 40-140ºF

Warranty

• Lifetime Limited Faucet Warranty
• 5-Year Limited Cartridge Warranty
• 1-Year Limited Finish Warranty

Codes & Standards

• ASME A112.18.1/CSA B125.1
• Certified to NSF/ANSI 61, Section 9 by CSA
• ADA ANSI/ICC A117.1

Manufacturer Info

The Chicago Faucet Company has offered commercial and residential products built to stand the test of time. A combination of the best engineering, finest materials and quality workmanship has made Chicago Faucets the specified choice in many of the finest building products.
