Description

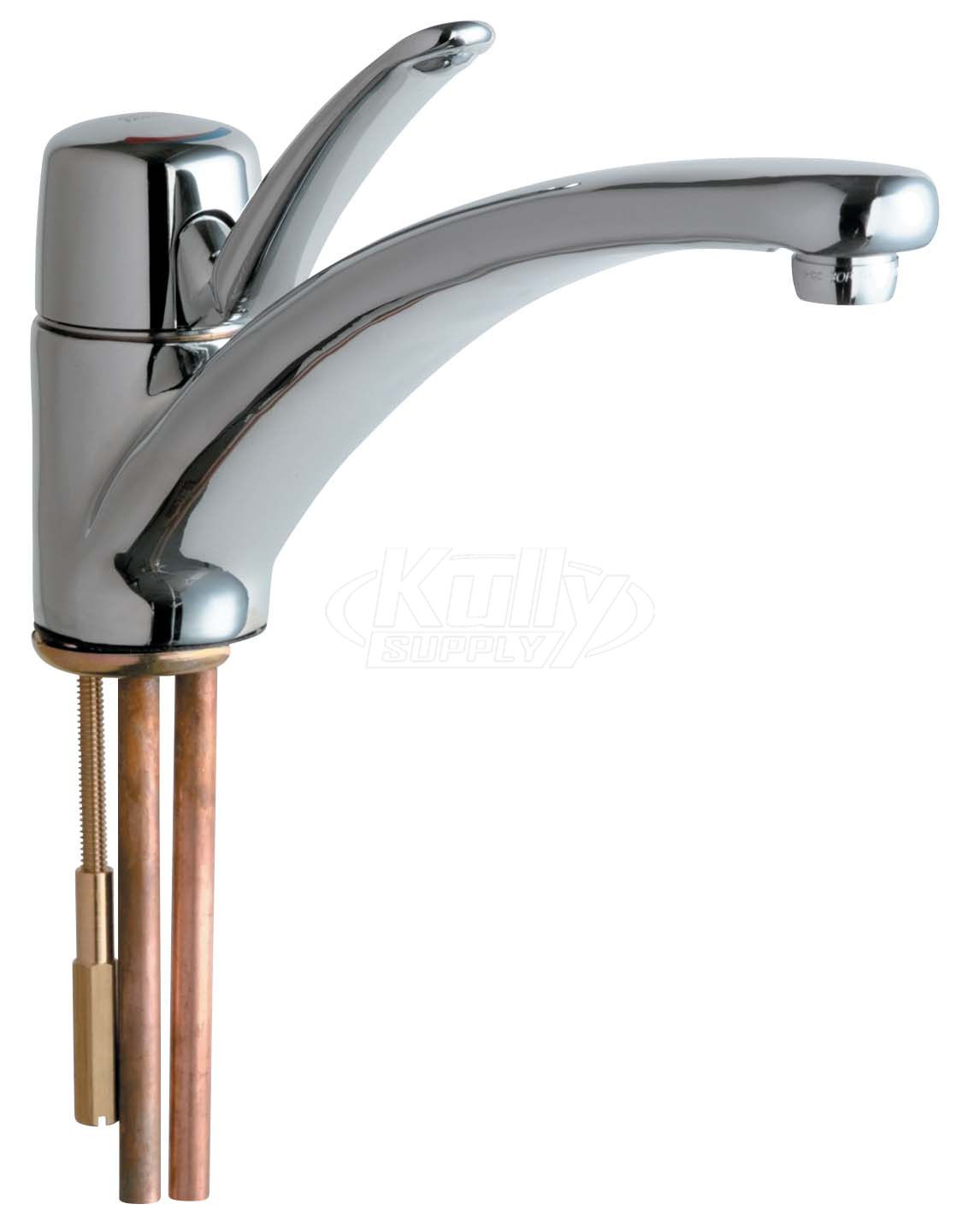

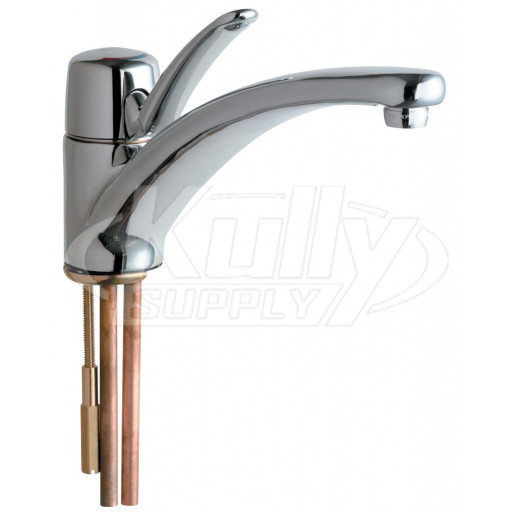

Chicago Faucets No. 2300-ABCP, polished chrome plated solid cast brass body construction with integral 10” C-C spout. 2.2 GPM pressure compensating aerator outlet. Metal lever handle with temperature limit stop and volume control. Ceramic mixing cartridge. 3/8” copper tube supply inlets. All mounting hardware is included for standard lavatory installations. This product meets ADA requirements and is tested and certified to industry standards: ASME A112.18.1, CSA B125 and NSF 61, section 9.
Product Type
Deck Mounted Single Lever Hot and Cold Water Mixing Sink Faucet
Features & Specifications
• Single Hole
• 2.2 GPM (8.3 L/min) Aerator
• 4 5/8” Lever Handle
• Ceramic Operating Cartridge
• 3/8” O.D. Copper Supply Tube Inlets
• 10” Center to Center Integral Cast Brass Swing Spout
Performance Specifications
• Rating Operating Pressure: 20-125 PSI
• Rated Operating Temperature: 40-140ºF
Warranty
• Lifetime Limited Faucet Warranty
• 5-Year Limited Cartridge Warranty
• 1-Year Limited Finish Warranty
Codes & Standards
• ASME A112.18.1M
• CSA B125.1
• Certified to NSF/ANSI 61, Section 9 by CSA
• ADA ANSI/ICC A117.1
Manufacturer Info
The Chicago Faucet Company has offered commercial and residential products built to stand the test of time. A combination of the best engineering, finest materials and quality workmanship has made Chicago Faucets the specified choice in many of the finest building products.
