Description

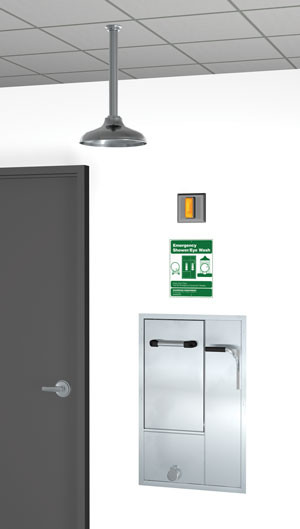

The Guardian GBF2152 Recessed Combination Drench Shower & Eye/Face Wash (with Drain Pan and Daylight Drain) features a barrier-free design. The stainless steel cover provides an attractive appearance and protects the unit when not in use. When activated, the cover serves as a pan to collect waste water and return it into the unit for drainage. Rather than connecting to the building drainage system, the unit has a 1-1/2” OD drain connection on the front of the unit for waste water. The front drain provides for less costly installation, while facilitating regular testing of the unit.
- ADA Compliance: When installed at recommended mounting heights, unit complies with ADA requirements for accessibility by handicapped persons.
- Showerhead: 10” diameter stainless steel (GBF2152).
- Shower Valve: 1” IPS brass stay-open ball valve with stainless steel “panic bar” actuator.
- Cover/Drain Pan: 16 gauge stainless steel combination cover and drain pan. Grasping “panic bar” handle and opening cover pulls sprayhead assembly down from vertical to horizontal position, activating water flow. While unit is in operation, waste water is collected in drain pan and returned into cabinet for drainage. Unit remains in operation until cover is returned to closed position.
- Eye/Face Wash Sprayhead Assembly: Two FS-Plus sprayheads mounted on supply arms. Each sprayhead has individually adjustable flow control and filter to remove impurities from water.
- Eye/Face Wash Valve: 1/2” IPS brass rotating plug-type valve. Furnished with Teflon-coated O-ring seals and in-line strainer to protect valve from debris and foreign matter.
- Mounting: 16 gauge stainless steel cabinet with flanged rim for recessed mounting in wall. Unit fits in standard 3-5/8” deep wall.
- Pipe and Fittings: Exposed pipe and escutcheon are brushed stainless steel (GBF2152).
- Supply: 1” NPT female inlet.
- Waste: 1-1/2” OD tailpiece with stainless steel cover.
- Sign: Furnished with ANSI-compliant identification sign.
