Elkay 31513C Cold Control Thermostat

Videos

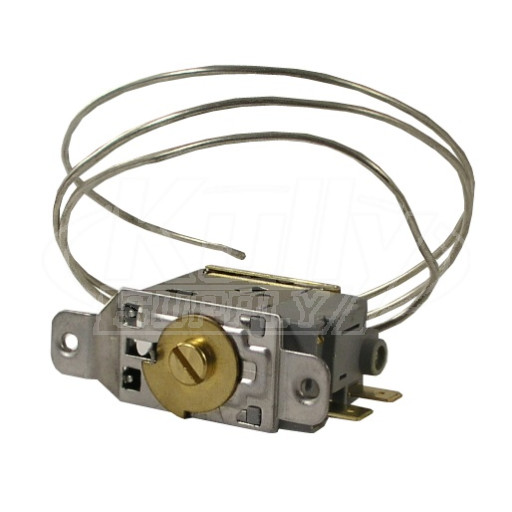

Elkay 31513C Cold Control Thermostat

Item #: 102467
|
Model: 31513C
|
Manufacturer: Elkay

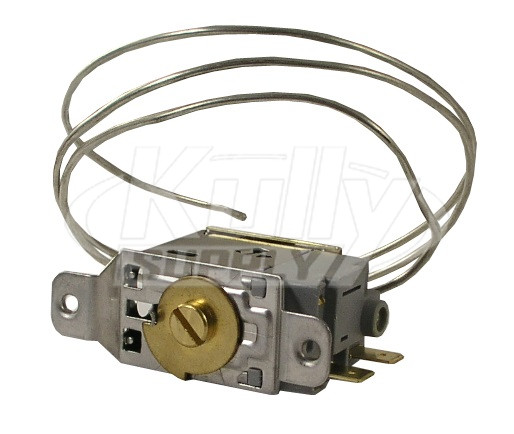

The Elkay Cold Control Thermostat 31513C is an adjustable cold control thermostat. This thermostat controls the cooling system to regulate the temperature of the chilled water in most Elkay and Halsey Taylor drinking fountains. There are two male electrical terminals and one metal sensing lead.

In Stock
19 Ready To Ship Today
Additional Quantities Typically Ship in 1-2 Weeks

List Price: $48.00 $43.20 You Save 10%

Qty:

Product Description
Specifications
Related Products
Reviews (0)
Questions (2)

Product Description Specifications Related Products Reviews (0) Questions (2)

Questions:

0

vote

Q: How hard is this to change

1

Answer

Posted on Wednesday, March 29, 2017 on product Elkay 31513C Cold Control Thermostat

0
vote

A:
Replacing this cold control is fairly simple.

Before attempting removal we recommend that you watch the video that is linked on this page which helps explain the different components of the cold control.

Once you have removed the panel on the lower cabinet of the drinking fountain you will see the cold control which is mounted in the center of the top frame. To disconnect the cold control you will need to disconnect the two wire connections, remove the thermostat from the frame by removing the two flat head screws that hold the cold control in place, and pull out the probe that is inserted into the evaporator tank's bulbwell. It is helpful to note that the probe is just inserted into the bulbwell and is not fastened, glued, or soldered into place. Once the old thermostat is removed you can uncoil the probe of your new thermostat and insert it into the bulbwell until it comes out of the bottom of the evaporator. Secure the probe by bending the probe into a J hook. Once the probe is inserted you can fasten the thermostat to the bracket with the screws and connect the wires to the male electrical connections

If you have any other questions our experts are here to help! Call or text 800-518-5388

Posted by Kully Supply on Wednesday, March 29, 2017

0

vote

Q: How hard is this to change

1

Answer

Posted on Wednesday, January 18, 2017 on product Elkay 31513C Cold Control Thermostat

0
vote

A: Replacing this cold control is fairly simple. Before attempting removal we recommend that you watch the video that is linked on this page which helps explain the different components of the cold control. Once you have removed the panel on the lower cabinet of the drinking fountain you will see the cold control which is mounted in the center of the top frame. To disconnect the cold control you will need to disconnect the two wire connections, remove the thermostat from the frame by removing the two flat head screws that hold the cold control in place, and pull out the probe that is inserted into the evaporator tank's bulbwell. It is helpful to note that the probe is just inserted into the bulbwell and is not fastened, glued, or soldered into place. Once the old thermostat is removed you can uncoil the probe of your new thermostat and insert it into the bulbwell until it comes out of the bottom of the evaporator. Secure the probe by bending the probe into a J hook. Once the probe is inserted you can fasten the thermostat to the bracket with the screws and connect the wires to the male electrical connections If you have any other questions our experts are here to help! Call or text 800-518-5388

Posted by Kully Supply on Wednesday, January 18, 2017

View all related questions.
