Description

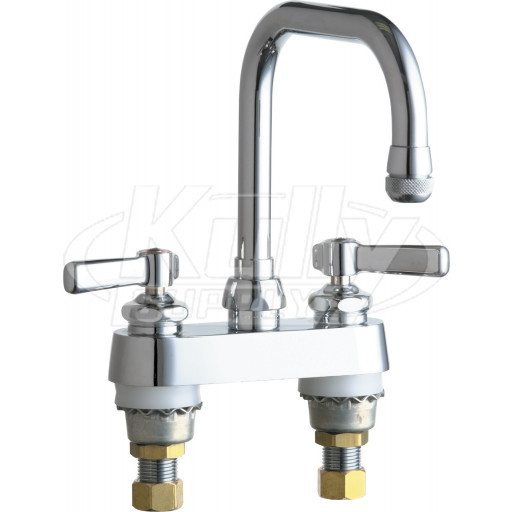

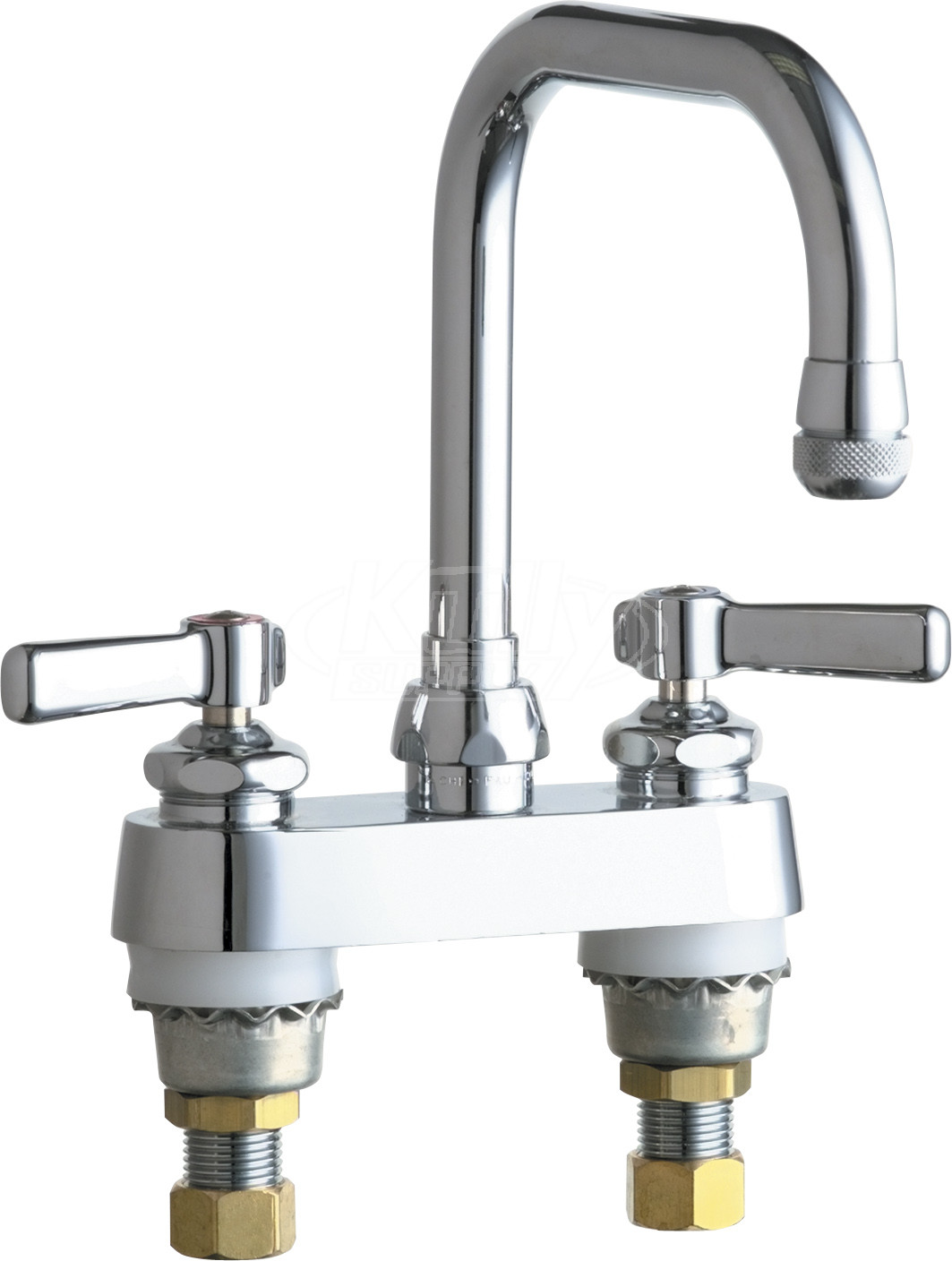

Chicago Faucets No. 526-ABCP, polished chrome plated solid brass construction with integral shanks. 6 1/4” C-C rigid/swing field convertible double bend spout. Quixtop screen outlet. 2-3/8” lever handles with eight-point tapered broach and secured, color-coded index buttons. Quaturn™ quarter turn renewable compression cartridge designed to close with water pressure, with square tapered broach feature to help facilitate handle removal. Inlet shanks contain standard 1/2” NPSM threaded inlets with coupling nuts for connection to 3/8” or 1/2” standard flexible risers. All mounting hardware is included for standard lavatory installations. This product meets ADA requirements and is tested and certified to industry standards: ASME A112.18.1, NSF 61 Sec. 9, and CSA B125.
Product Type
Sink Faucet
Features & Specifications
- 6 1/4” C-C Rigid/Swing Double Bend Spout
- Quixtop™ Coarse Screen Outlet
- 2 3/8” Metal Lever Handles with Secured Red and Blue Service Buttons
- Quaturn™ Operating Cartridges
- 1/2” NPSM Supply Inlets with Coupling Nut for 3/8” or 1/2” Flexible Riser.
Performance Specification
- Rating Operating Pressure: 20-125 PSI
- Rated Operating Temperature: 40-140°F
Warranty
- Lifetime Limited Faucet Warranty
- 5-Year Limited Cartridge Warranty
- 1-Year Limited Finish Warranty
Compliant To
- ASME A112.18.1M
- CSA B125.1
- NSF 61, Section 9
- ADA ANSI/ICC A117.1
Manufacturer Info
The Chicago Faucet Company has offered commercial and residential products built to stand the test of time. A combination of the best engineering, finest materials and quality workmanship has made Chicago Faucets the specified choice in many of the finest building products.
