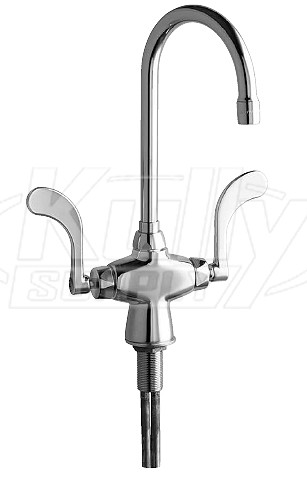

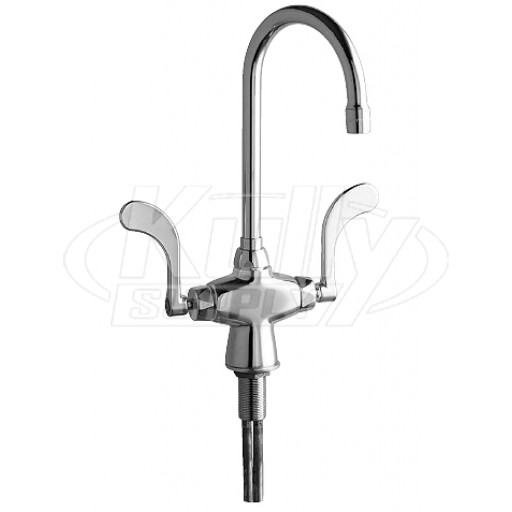

Chicago 50-317CP Sink Faucet

  • Model #: 50-317CP
  • Part #: 107773
  • Manufacturer: Chicago
Price: $212.71
Add Items to Cart

$8.50 Shipping for Parts Orders

  • Deck Mount – Single Hole
  • 5-1/4” Gooseneck Spout
  • 4” Wristblade Handles
  • Quaturn Cartridges

Chicago Faucets No. 50-317CP, polished chrome plated solid brass construction with integral shank. 5-1/4” C-C rigid/swing field convertible gooseneck spout. 2.2 GPM pressure compensating aerator outlet. 4” wristblade handles with eight-point tapered broach and secured, color-coded index buttons. Quaturn™ quarter-turn renewable compression cartridge designed to close with water pressure, with square tapered broach feature to help facilitate handle removal. 3/8” copper supply tubes and all mounting hardware is included for standard lavatory installations. Mounting hardware included. This product meets ADA requirements and is tested and certified to industry standards: ASME A112.18.1, NSF 61 Sec. 9, and CSA B125.

Product Type

Deck Mounted Hot and Cold Water Mixing Sink Faucet

Features & Specifications

• Single Hole
• 5 1/4” Rigid / Swing Gooseneck Spout
• 2.2 GPM (8.3 L/min) Aerator
• 4” Wristblade Handle
• Quaturn Compression Operating Cartridge
• 3/8” O.D. Copper Supply Tubes
• CFNow! Item Ships in 5 Days

Performance Specifications

• Rating Operating Pressure: 20-125 PSI
• Rated Operating Temperature: 40-140ºF

Warranty

• Lifetime Limited Faucet Warranty
• 5-Year Limited Cartridge Warranty
• 1-Year Limited Finish Warranty

Codes & Standards

• ASME A112.18.1M
• CSA B125.1
• Certified to NSF/ANSI 61, Section 9 by CSA
• ADA ANSI/ICC A117.1


Product Info
Part #
107773
Manufacturer
Chicago
Model #
50-317CP
