Description

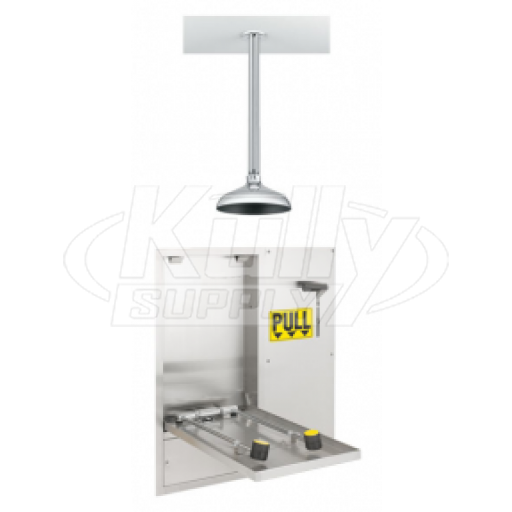

The Speakman SE-575-DP-238 Swing Down-Activated Wall-Mounted Combination Drench Shower & Eyewash has a barrier-free design. The unit features plastic sprayheads with individual flow restrictors. The unit is activated by pulling the handle down to the open position, and is supplied with a cabinet flush with the wall to keep corridors free from obstruction. The unit is also supplied with a drench shower featuring a 1” NPTF stay-open full flow ball valve that is activated by a pull handle. The pull handle is mounted on the wall. The showerhead is designed to drop down through the ceiling.
EYE/FACE WASH
- SPRAYHEADS: (2) ABS Plastic Non-Aerated.
- VALVE: Brass, Chrome-Plated.
- ACTIVATOR HANDLE: Black, Nylon Plastic.
- INLET: ½” NPT Female.
- DRAIN: 1-1/4” Brass Tube.
- CABINET & DRAIN PAN: 20 Gauge (.036 thk.) 300 Series Stainless Steel with Satin Finish.
EMERGENCY SHOWER
- SHOWERHEAD: Brass, 8” Diameter Polished Chrome-Plated (SE-575-DP-238). Brass, 10” Diameter Flanged Polished Chrome-Plated (SE-575-DP-237).
- COVER PANEL: 20 Gauge (.036 thk.) 300 Series Stainless Steel
- VALVE: 1” NPT Female Brass, Chrome Plated. Full Flow Stay-Open Ball Valve.
- ACTIVATOR: Stainless Steel Lever with Black Plastic Rotating Handle.
- PIPING: 1” IPS Steel Pipe Nipple & Unions.
- INLET: 1” NPTF.
- FLOW CONTROL: 20 GPM
- EMERGENCY SIGN: 7-7/8” x 12” Plastic Wall Sign.
