Description

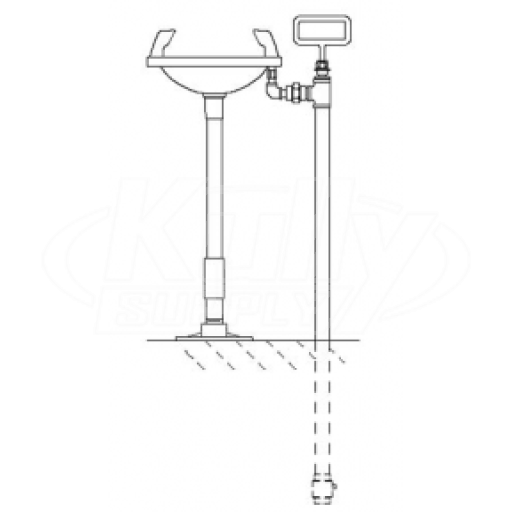

The Speakman SE-440 Pedestal-Mounted Eye/Face Wash (with Rectangular Stainless Steel Receptor) features a stainless steel receptor, frost-proof hydrant activated by a panic handle, and galvanized steel pipe with a drain tee and floor flange. The spray pattern is a 9” x 8” (72 sq. in.) curtain of aerated water, easily controlled at any pressure for maximum protection. The standard valve bury depth is 42”.
- RECEPTOR: 300 Series Stainless Steel.
- SPRAYHEADS: (6) Brass, Chrome-Plated, Aerated.
- FROST-PROOF VALVE: 1” NPT Female Brass.
- ACTIVATOR: 3/4” Dia. Brass, Casted Handle.
- SHROUDS: Yellow Polypropylene.
- INLET: 1” NPT Female.
- PIPE: 1-1/4” IPS Galvanized Steel.
- FLOOR FLANGE: Brass Casting with (3) 17/32” Dia. Mounting Holes on 9” Dia. Bolt Circle, Spaced 120° Apart.
- WASTE: 1-1/4” NPT Female.
- FINISH: Safety Green Powder Coating
- EMERGENCY SIGN: 7-7/8” x 7-7/8” Plastic Wall Sign.
