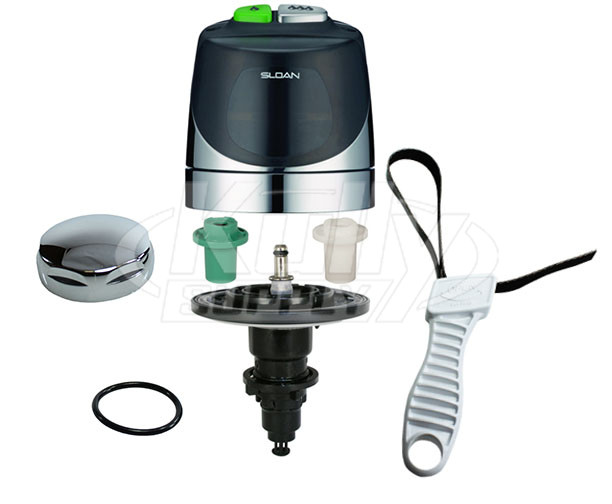

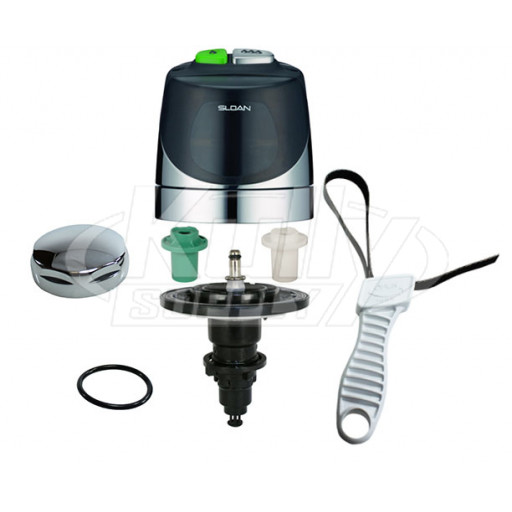

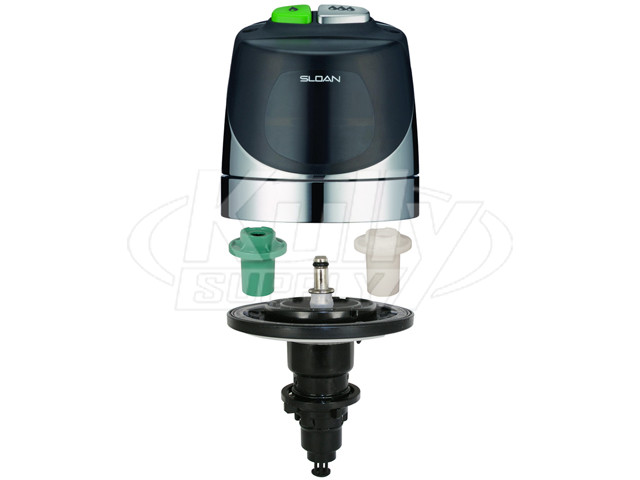

Sloan ECOS RESS-C 1.6/1.1 GPF Dual Flush Retrofit Kit (for toilets)

Quiet, Exposed, Sloan ECOS® Electronic Dual Flush, Battery Powered, Sensor Activated Closet Flushometer Retrofit Conversion Kit for Sloan Royal®, Regal Pro® and Regal® Flushometers with the following features:

• If the user is present for less than one minute and leaves the sensing zone or chooses the small override button, a reduced flush initiates (1.1 gpf/4.2 Lpf) eliminating liquid and paper waste, saving 1/2 gallon of water
• If the user is present for greater than one minute and leaves the zone or chooses the large override button, the full flush initiates (1.6 gpf/6.0 Lpf) eliminating solid waste and paper
• Reduces water volume by up to 30% when a reduced flush occurs
• PERMEX™ Synthetic Rubber Flex Tube Diaphragm with twin linear filtered bypass and vortex cleansing action designed for improved life and reduced maintenance
• ADA Compliant Sloan ECOS® Electronic Dual Flush Battery Powered Infrared Sensor for automatic “No Hands” operation
• Infrared Sensor with Multiple-focused, Lobular Sensing Fields for high and low target detection with adjustment screw
• Latching Solenoid Operator
• Engineered Metal Cover with replaceable Lens Window
• User friendly three (3) second Flush Delay
• Courtesy Flush™ Override Button
• Four (4) Size AA Batteries factory installed
• “Low Battery” Flashing LED
• Initial Set-up Range Indicator Light (first 10 minutes)
• Installation Tools provided
• Diaphragm molded from PERMEX™ Rubber Compound for Chloramine resistance

• Troubleshooting Guide
