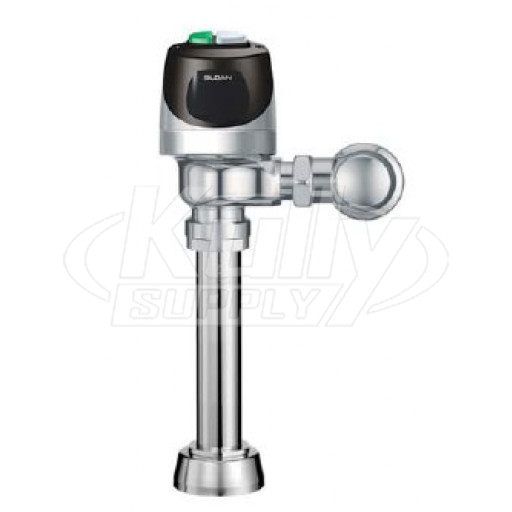

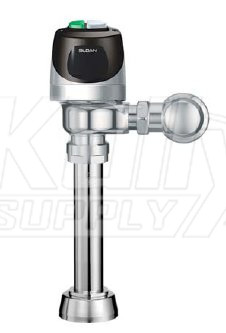

Sloan ECOS 8111-1.6/1.1 Sensor Flushometer

• Reduces water volume by up to 30% when a reduced flush occurs
• If the user is present for less than one minute and leaves the sensing zone or chooses the small override button, a reduced flush initiates (1.1 gpf/4.2 Lpf) eliminating liquid and paper waste, saving 1/2 gallon of water
• If the user is present for greater than one minute and leaves the zone or chooses the large override button, the full flush initiates (1.6 gpf/6.0 Lpf) eliminating solid waste and paper waste

Quiet, Exposed, Diaphragm Type, Chrome Plated Closet Flushometer with the following features:

• PERMEX Synthetic Rubber Diaphragm with Twin Linear Filtered Bypass and Vortex Cleansing Action
• Flex Tube Diaphragm Designed for Improved Life and Reduced Maintenance
• ADA-Compliant Sloan ECOS Electronic Dual Flush Battery-Powered Infrared Sensor for Automatic “No Hands” Operation
• Infrared Sensor with Multiple-Focused, Lobular Sensing Fields for High and Low Target Detection
• Latching Solenoid Operator
• Engineered Metal Cover with Replaceable Lens Window
• User Friendly Three (3) Second Flush Delay
• Courtesy Flush Override Button
• Four (4) Size AA Batteries Factory Installed
• “Low Battery” Flashing LED
• Infrared Sensor Range Adjustment Screw
• Initial Set-up Range Indicator Light (First 10 Minutes)
• Chrome-Plated Metal Handle Cap
• 1” I.P.S. Screwdriver Bak-Chek Angle Stop
• Free Spinning, Vandal-Resistant Stop Cap
• Adjustable Tailpiece
• High Back Pressure Vacuum Breaker Flush Connection with One-Piece Bottom Hex Coupling Nut
• Spud Coupling and Flange for 1-1/2” Top Spud
• Sweat Solder Adapter with Cover Tube and Cast Wall Flange with Set Screw
• High Copper, Low Zinc Brass Castings for Dezincification Resistance
• Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
• Flush Accuracy Controlled by CID Technology
• Diaphragm, Stop Seat and Vacuum Breaker Molded From PERMEX Rubber Compound for Chloramine Resistance
