Description

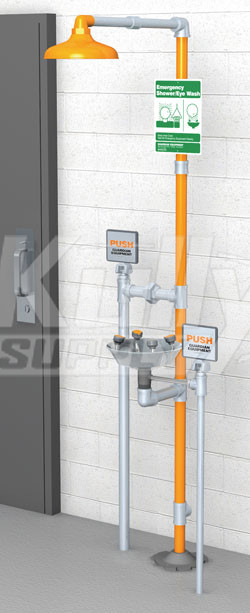

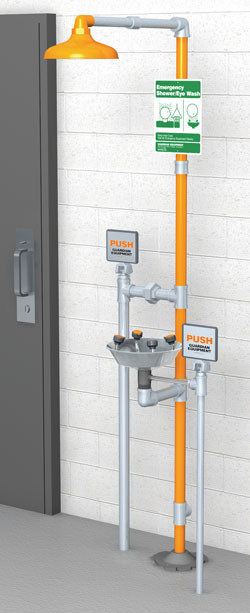

The Guardian GFR1909 Freeze-Resistant Combination Drench Shower & Eye/Face Wash (with Plastic Showerhead) features freeze-resistant valves and supply lines buried below the frost line to protect against freezing. The unit is designed to drain completely after use so that no standing water remains in the unit and the possibility of freeze-up is eliminated. Since the unit is intended for use in cold weather conditions, consideration should be given to supplying the unit with tempered water in accordance with ANSI Z358.1-2004.
- Showerhead: 10” diameter orange ABS plastic.
- Shower Valve: 1-1/4” IPS freeze-resistant valve with push plate. Valve body and supply line are buried below frost line to prevent freezing. Valve has 1/4” IPS bleed outlet to permit water standing in unit to drain out after use.
- Sprayhead Assembly: Four GS-Plus sprayheads. Each sprayhead has a “flip top” dust cover and internal flow control.
- Eye/Face Wash Receptor: 11-1/2” diameter stainless steel.
- Eye/Face Wash Valve: 3/4” IPS freeze-resistant valve with push plate. Valve body and supply line are buried below frost line to prevent freezing. Valve has 1/4” IPS bleed outlet to permit water standing in unit to drain out after use.
- Pipe and Fittings: Schedule 40 galvanized steel. Furnished with orange polyethylene covers for vertical piping for high visibility and corrosion resistance.
- Supply: 3/4” NPT (eyewash valve) and 1-1/4” NPT (shower valve) male inlets.
- Waste: 1-1/4” NPT female outlet.
- Sign: Furnished with ANSI-compliant identification sign.
