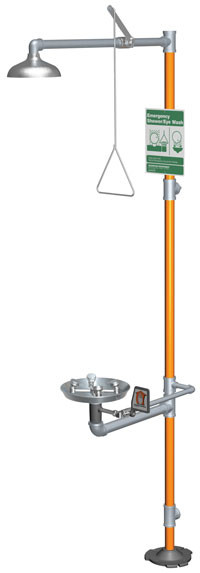

Description
- ADA Compliance: Unit complies with ADA requirements for accessibility by handicapped persons (maximum height and reach, minimum knee clearance and distance from obstructions).
- Shower head: 8” diameter chrome plated cast brass shower head with 20 GPM flow control.
- Shower Valve: 1” IPS chrome plated brass self-closing ball valve with stainless steel actuating arm and 47 1/2” stainless steel pull rod.
- Spray Head Assembly: Four vandal-resistant GS-Plus™ spray heads. Each head has a brass body, stainless steel “flip top” dust cover, internal flow control and filter to remove impurities from the water flow. Spray heads have retaining ring with set screw to protect internal components.
- Eye/face Wash Bowl: 11 1/2” stainless steel.
- Eye/face Wash Valve: 1/2” IPS chrome plated brass stay-open ball valve with flag handle.
- Pipe and Fittings: Schedule 40 galvanized steel. Furnished with orange polyethylene covers on piping for high visibility and corrosion resistance.
- Supply: 1 1/4” NPT female top and side inlet.
- Waste: 1 1/4” NPT female outlet.
- Sign: ANSI-compliant identification sign. quality assurance: Valve, bowl and spray head assemblies are factory assembled and water tested prior to shipment.
NOTE: Safety stations with self-closing valves do not comply with the provisions of ANSI Z358.1 – 2004. However, they may be advantageous where there is a danger of unintended operation of the shower (as in schools) or where large volumes of water might damage surrounding equipment.
Manufacturer Info
Guardian Equipment is the innovative leader in the emergency eyewash and shower industry. Guardian is continually expanding their product offering to remain the best resource for emergency response needs.
