Description

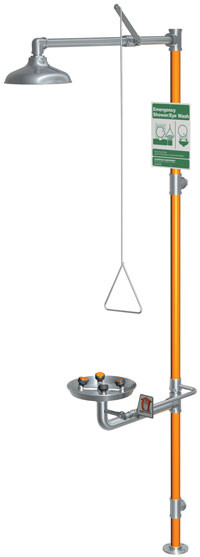

The Guardian GBF1994 Barrier-Free Stainless Steel Combination Drench Shower & Eye/Face Wash is handicap-accessible. The showerhead and pull rod are extended for improved access. The receptor is lowered and extended to permit access by a wheelchair user. The profile of the unit is “flattened” to comply with maximum height and knee clearance requirements. The stainless steel construction is ideal for highly corrosive environments and clean room applications.
- ADA Compliance: Unit complies with ADA requirements for accessibility by handicapped persons (maximum height and reach, minimum knee clearance and distance from obstructions).
- Showerhead: 10” diameter stainless steel.
- Shower Valve: 1” IPS Type 316 stainless steel stay-open ball valve. Valve has stainless steel ball and Teflon seals. Furnished with stainless steel actuating arm and 47-1/2” stainless steel pull rod.
- Sprayhead Assembly: Four GS-Plus sprayheads. Each sprayhead has a “flip top” dust cover, internal flow control, and filter to remove impurities from the water flow.
- Eye/Face Wash Receptor: 11-1/2” stainless steel.
- Eye/Face Wash Valve: 1/2” IPS Type 316 stainless steel stay-open ball valve. Valve has stainless steel ball and Teflon seals.
- Pipe and Fittings: Schedule 40 brushed stainless steel.
- Supply: 1-1/4” NPT female top or side inlet.
- Waste: 1-1/4” NPT female outlet.
- Sign: Furnished with ANSI-compliant identification sign.
Manufacturer Info
Guardian Equipment is the innovative leader in the emergency eyewash and shower industry. Guardian is continually expanding their product offering to remain the best resource for emergency response needs.
