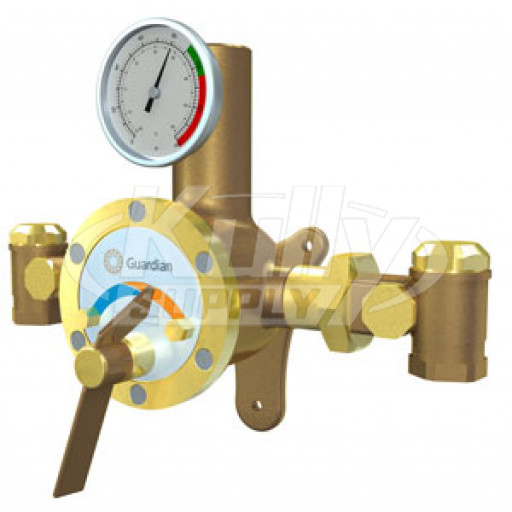

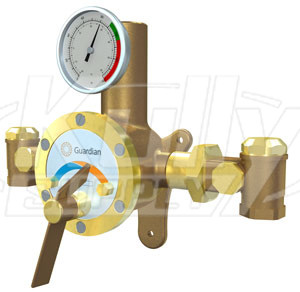

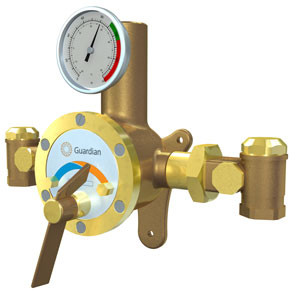

Guardian G3800 Tempering Valve 44 Gallon

Guardian G3800 Tempering Valve 44 Gallon icon_image_enlarge.png
  • Model #: G3800
  • Part #: 137717
  • Manufacturer: Guardian
Price:
$1,156.61
Qty:

The Guardian G3800 Tempering Valve 44 Gallon blends hot and cold water to deliver tepid water. The valve has flow capacity of 3.0 to 44 gallons per minute (GPM). The valve can be used with a single installation of drench showers and combination units, and with multiple installations of drench shower, eyewash, eye/face wash, combination eyewash & drench hose, and drench hose units.

Need Product Assistance?

Call Us

800-518-5388

-or-

Kully Supply is committed to offering the best product support through our knowledgeable customer service team. If you have any questions, feel free to contact us.

  • Temperature Control: Valve has bimetallic thermostat that senses incoming water temperature and automatically blends water to 85 degrees F. High temperature limit stop is set to 90 degrees F. Valve has dial thermometer on outlet to monitor temperature of delivered water. Note: Valve may need to be adjusted when installed based on incoming water temperature.
  • Fail Safe: In event of restriction or failure of hot water supply, internal bypass allows valve to deliver cold water to emergency unit. In bypass mode, valve will deliver 20 GPM of cold water at 30 PSI flow pressure. In event of loss of cold water supply, valve will close and not deliver water.
  • Supply Pressure: 30 PSI minimum supply pressure is required for proper operation of valve. Maximum supply pressure is 125 PSI.
  • Mounting: Furnished with heavy duty mounting bracket for securing valve to panel or wall.
  • Inlets: 1” NPT female hot and cold water inlets. Inlets can be rotated 360 degrees for top or bottom supply. Each inlet has integral water strainer, check valve, and supply stop.
  • Outlet: 1-1/4” NPT female outlet.

Manufacturer Info

Guardian Equipment is the innovative leader in the emergency eyewash and shower industry. Guardian is continually expanding their product offering to remain the best resource for emergency response needs.
View More

Data Sheets

Additional Information

Part #

137717

Manufacturer

Guardian

Model #

G3800
