Description

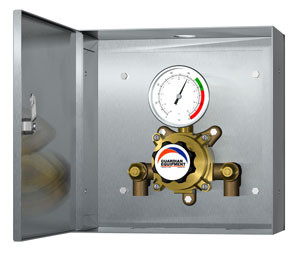

- Temperature Control: Valve has bimetallic thermostat that senses incoming water temperature and automatically blends water to 85 degrees F. High temperature limit stop is set to 90 degrees F. Valve has dial thermometer on outlet to monitor temperature of delivered water. Note: Valve may need to be adjusted when installed based on incoming water temperature.
- Fail Safe: In event of restriction or failure of hot water supply, internal bypass allows valve to deliver cold water to emergency unit. In bypass mode, valve will deliver 4 GPM of cold water at 30 PSI flow pressure. In event of loss of cold water supply, valve will close and not deliver water.
- Supply pressure: 30 PSI minimum supply pressure is required for proper operation of valve. Maximum supply pressure is 125 PSI.
- Mounting: Furnished with heavy duty mounting bracket for securing valve to panel or wall.
- Inlets: 1/2” nominal sweat female hot and cold water inlets. Each inlet has check valve and supply stop.
- Outlet: 1/2” NPT female outlet.
Manufacturer Info
Guardian Equipment is the innovative leader in the emergency eyewash and shower industry. Guardian is continually expanding their product offering to remain the best resource for emergency response needs.
