Description

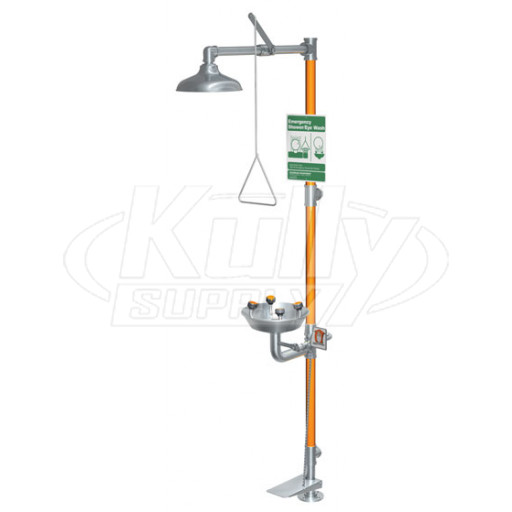

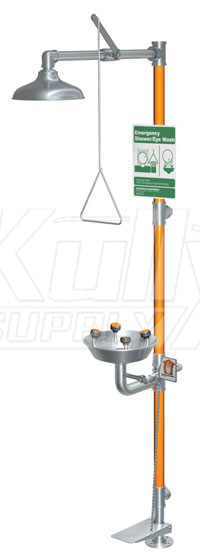

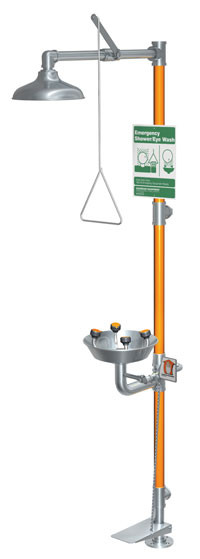

- Showerhead: 10” diameter stainless steel.
- Shower Valve: 1” IPS Type 316 stainless steel stay-open ball valve. Valve has stainless steel ball and Teflon seals. Furnished with stainless steel actuating arm and 29” stainless steel pull rod.
- Sprayhead Assembly: Four GS-Plus sprayheads. Each sprayhead has a “flip top” dust cover, internal flow control, and filter to remove impurities from the water flow.
- Eye/Face Wash Receptor: 11-1/2” diameter stainless steel.
- Eye/Face Wash Valve: 1/2” IPS Type 316 stainless steel stay-open ball valve. Valve has stainless steel ball and Teflon seals. Valve is activated by flag handle or foot treadle. Unit remains in operation until handle is returned to closed position.
- Pipe and Fittings: Schedule 40 Type 304 brushed stainless steel. Furnished with orange polyethylene covers for vertical piping for high visibility.
- Supply: 1-1/4” NPT female top or side inlet.
- Waste: 1-1/4” NPT female outlet.
- Sign: Furnished with ANSI-compliant identification sign.
Manufacturer Info
Guardian Equipment is the innovative leader in the emergency eyewash and shower industry. Guardian is continually expanding their product offering to remain the best resource for emergency response needs.
