Description
Product Type

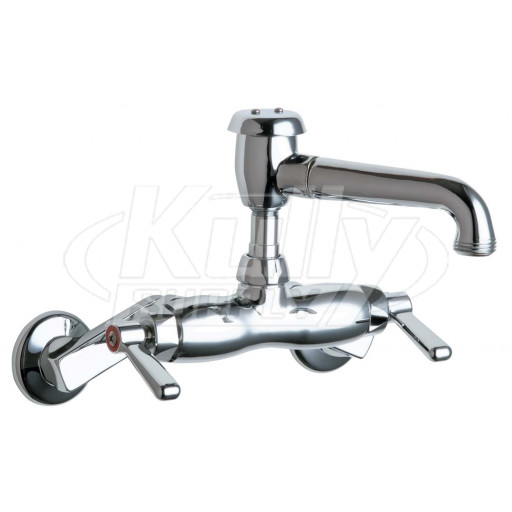

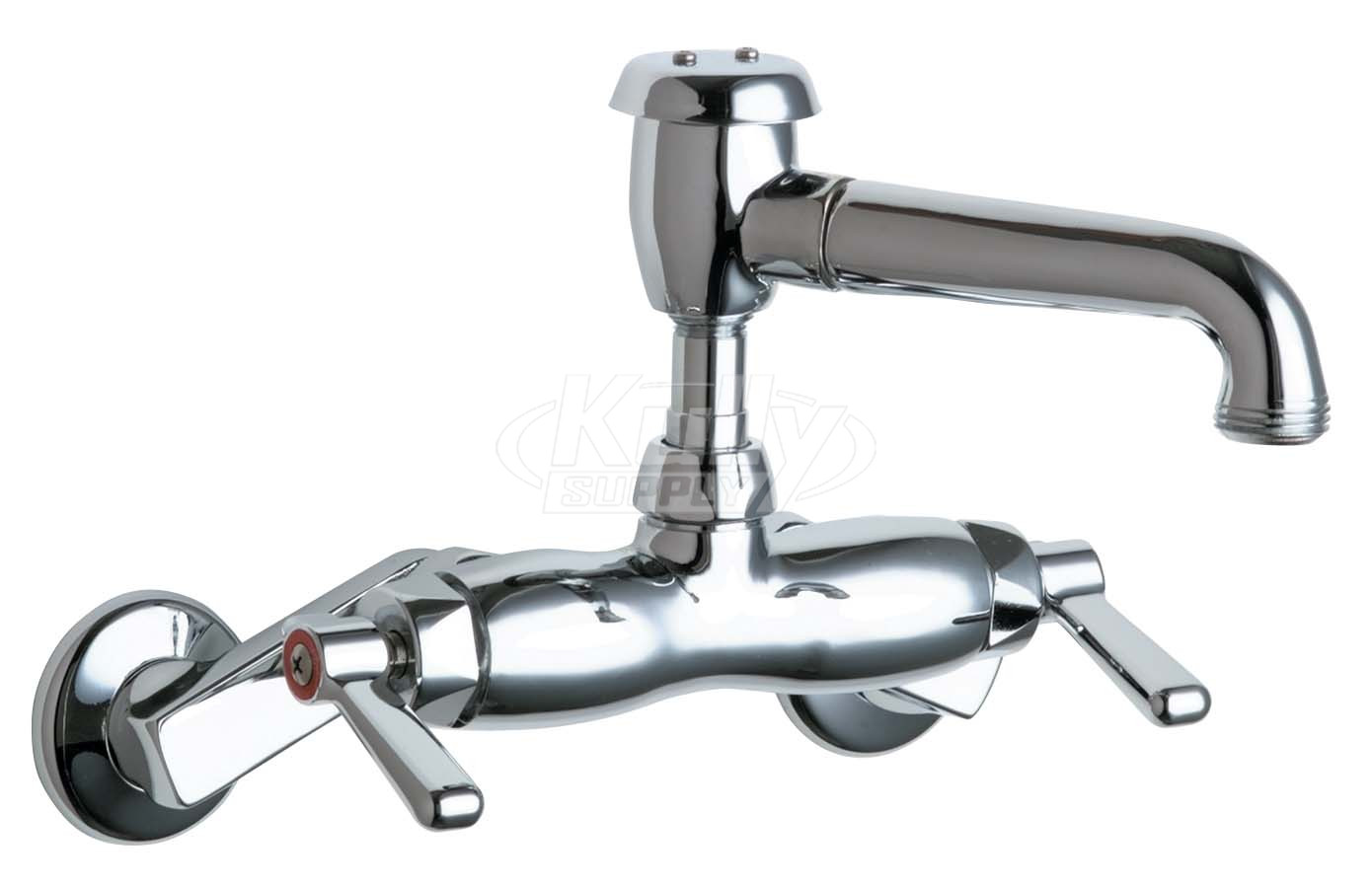

Wall Mounted Hot and Cold Water Sink Faucet with Vacuum Breaker
Features & Specifications
- 3 3/8” Body, Adjustable Arms 3” – 8 3/8”
- 5 3/4” Swing L Type Cast Brass Spout
- 2 3/8” Lever Handle
- Quaturn Compression Operating Cartridge
- Offset 2 1/2” Offset Inlet Supply Arm
- 2 1/2” Offset Adjustable Supply Arms with 1/2” NPT Female Thread Inlet
- Atmospheric Vacuum Breaker, Not Intended for Continuous Pressure Applications
Performance Specification
- Rating Operating Pressure: 20-125 PSI
- Rated Operating Temperature: 40-140ºF
Warranty
- Lifetime Limited Faucet Warranty
- 5-Year Limited Cartridge Warranty
- 1-Year Limited Finish Warranty
Codes & Standards
- ASME A112.18.1/CSA B125.1
- Certified to NSF/ANSI 61, Section 9 by CSA
- ADA ANSI/ICC A117.1
Manufacturer Info
The Chicago Faucet Company has offered commercial and residential products built to stand the test of time. A combination of the best engineering, finest materials and quality workmanship has made Chicago Faucets the specified choice in many of the finest building products.
