Description

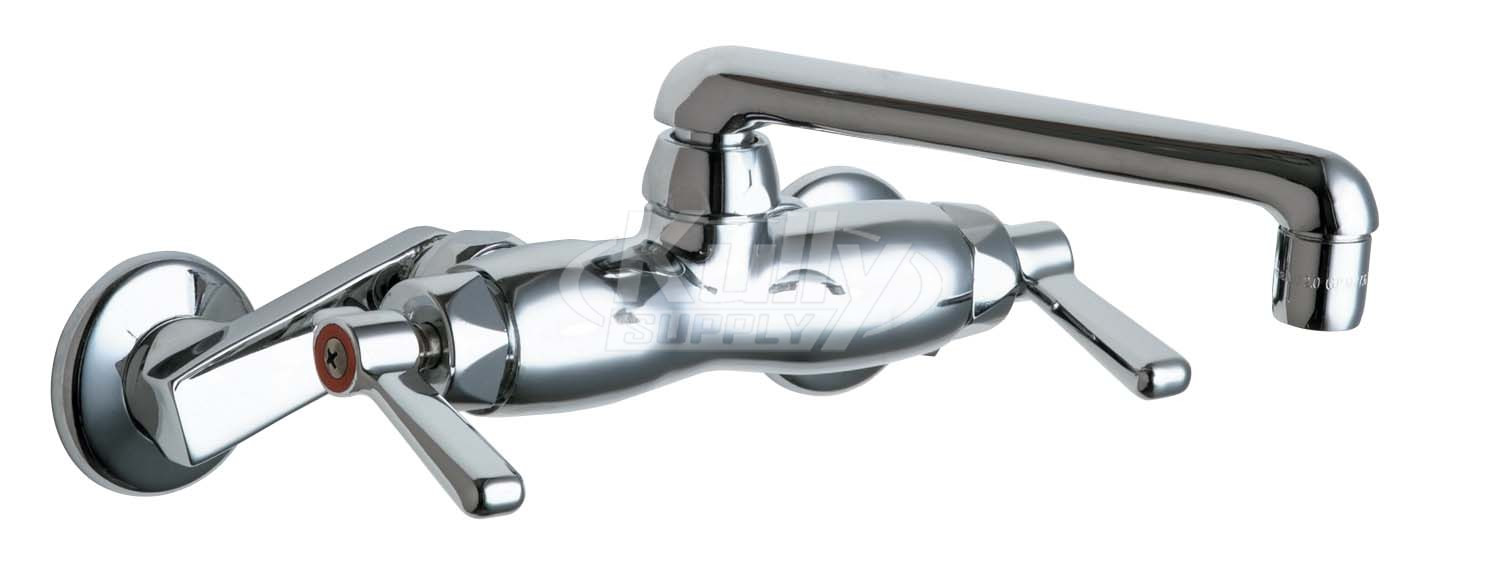

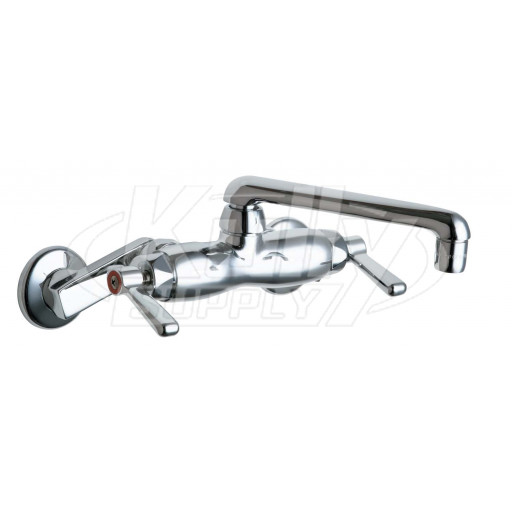

Chicago Faucets No. 445-ABCP, polished chrome plated solid cast brass construction. 6” C-C swing spout. 2.2 GPM pressure compensating aerator outlet. 2-3/8” metal lever handles with eight-point tapered broach and secured, color-coded index buttons. Quaturn™ quarter-turn renewable compression cartridge designed to close with water pressure, with square tapered broach feature to help facilitate handle removal. 1/2” NPT female inlet supply arms with adjustable centers from 4” to 8-3/8”, with loose wall flange. This product meets ADA requirements and is tested and certified to ASME A112.18.1 and CSA B125 industry standards.
Product Type
Service Sink Faucet
Features & Specifications
- 6” C-C Cast Brass Swing Spout
- 2.2 GPM (8.3 L/min) Pressure Compensating Softflo® Aerator
- 2 3/8” Metal Lever Handles with Secured Red and Blue Service Buttons
- Quaturn™ Operating Cartridges
- 2 1/2” Offset Adjustable Supply Arms with 1/2” NPT Female Thread Inlet
Performance Specification
- Rating Operating Pressure: 20-125 PSI
- Rated Operating Temperature: 40-140°F
Warranty
- Lifetime Limited Faucet Warranty
- 5-Year Limited Cartridge Warranty
- 1-Year Limited Finish Warranty
Compliant To
- ASME A112.18.1M
- CSA B125.1
- NSF 61, Section 9
- ADA ANSI/ICC A117.1
Manufacturer Info
The Chicago Faucet Company has offered commercial and residential products built to stand the test of time. A combination of the best engineering, finest materials and quality workmanship has made Chicago Faucets the specified choice in many of the finest building products.
