Description

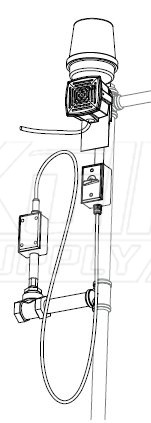

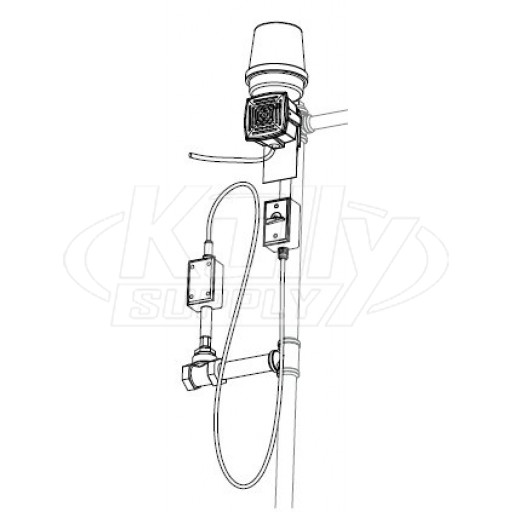

The Bradley S19-320B Flow Switch Alarm and Light System (with AC Transformer) can be easily connected to most combination drench shower & eyewash stations or drench showers that do NOT have 1-1/4” piping and a 30 GPM water inlet source. If the fixture is top-supplied, adequate space must be provided for vertical orientation of the sensor. The flow switch and alarm horn are U.L. listed components. The flow switch is a CSA-approved component. Flow switches are constructed of brass and should be protected from corrosive elements by being concealed behind a wall, in a cabinet, or other means. The system is fully-grounded and electrically-insulated from water piping for safety. Remote location hookup is possible by using the contacts in the flow switch junction box.
- Automatic, Audible, and Visual System
- Designed to Meet NEMA No. 3 Code (Waterproof)
- Easily Connected to Emergency Fixtures with 1-1/4” Inlet Piping
- S19-320B has 6’ Cord
- Strobe Light and Flow Switch are UL Listed and CSA-Approved
- Alarm Horn is Adjustable From 78-103 Decibels and is UL Listed
- Includes Remote Wiring Contacts
- Full, One-Year Warranty
Manufacturer Info
Bradley is the industry’s leading manufacturer of commercial plumbing fixtures and washroom accessories. Bradley boasts the greatest depth and breadth of commercial plumbing products in the world.
