Description

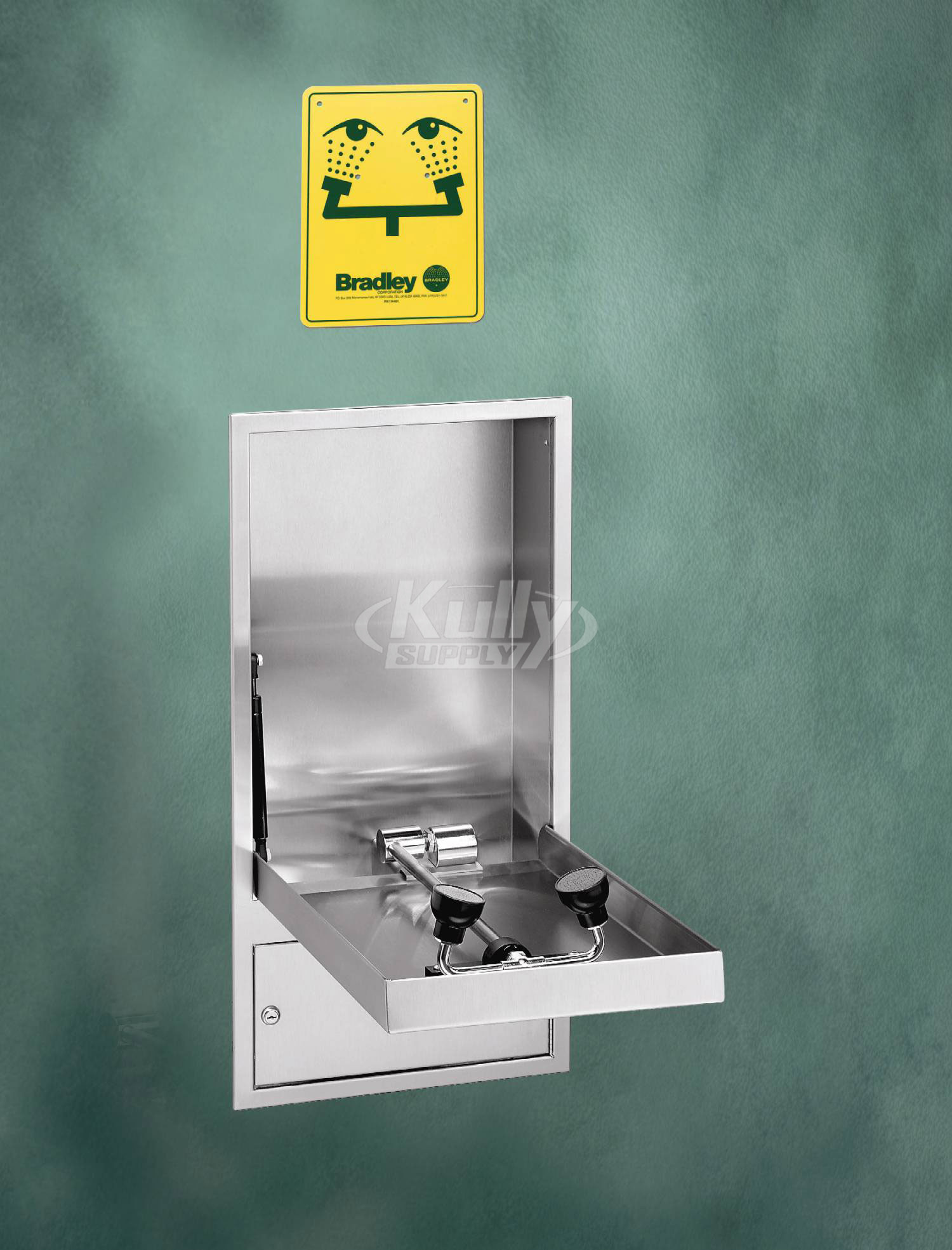

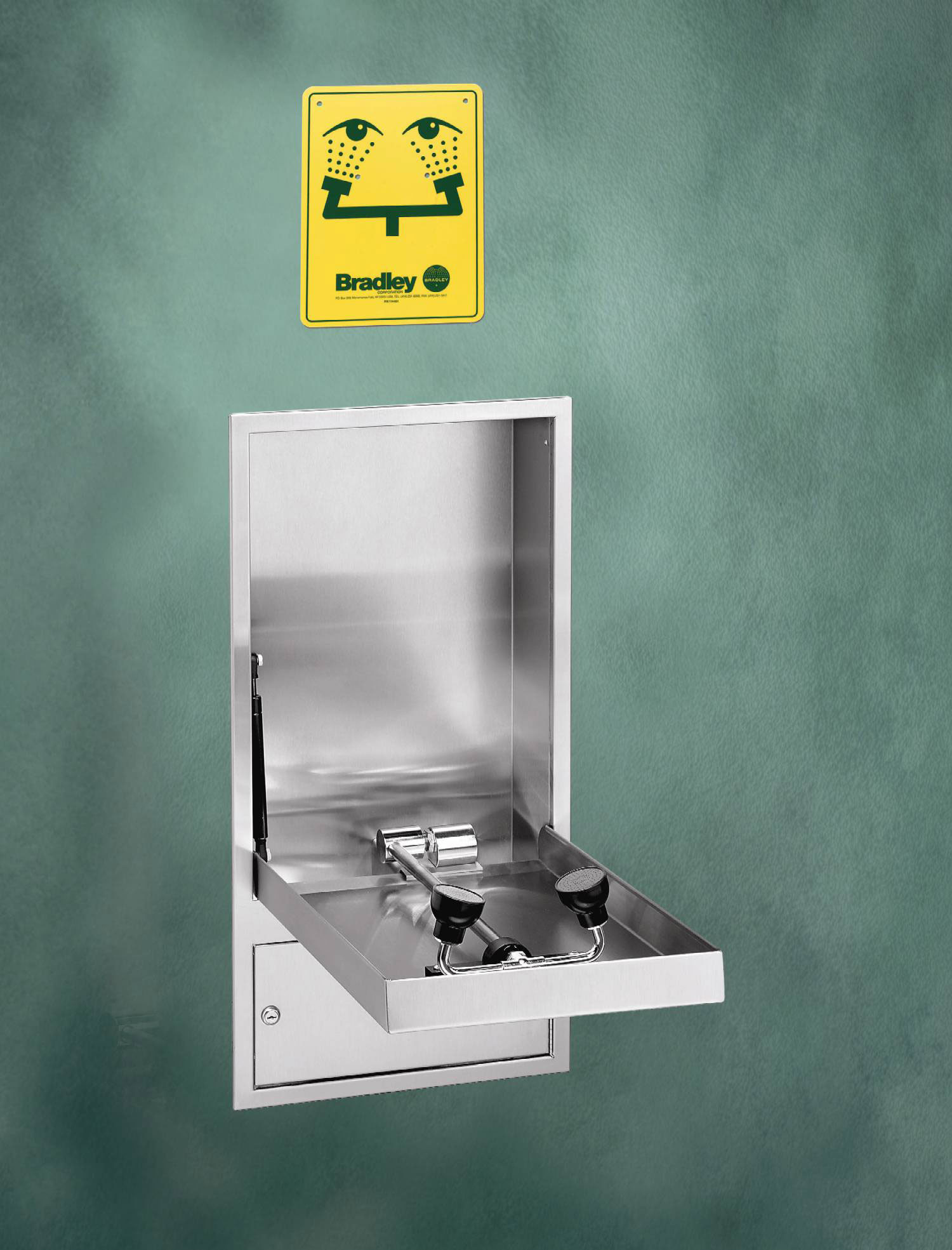

The Bradley S19-292PT design saves space and fits easily into any work environment. Stainless steel cabinet and door conceal eye/face wash fixture with a consistent and appealing exterior appearance, suitable to any application. Especially ideal for areas where space is limited or where a floor drain is not available. Eye/face wash activates by pulling cabinet door down. A gas spring softens the action of opening the unit allowing the door to descend in a smooth and controlled manner. Water is collected by the door assembly and directed back into the wall for drainage. Eye/face wash has an integral flow control in the shank. Unit is flush mounted in the wall.
An optional bottom-fed thermostatic mixing valve (S19-2000EFX) can be installed inside the maintenance compartment of the S19-292 or the 19-292PT. The S19-2000EFX can be easily accessed through the maintenance door below the fixture.
Standard Sprayhead Assembly
Black ABS sprayhead assembly with twin, soft flow eye/face wash heads. Safe, steady water flow under varying water supply conditions from 30-90 PSI is assured by an integral flow control.
Cabinet
Corrosion resistant stainless steel cabinet and doors. Top section of the door conceals the eye/face wash unit which is activated with a plastic molded wide grip handle. Bottom of cabinet conceals tailpiece and fi ttings, and is provided with a locking device to prevent tampering with the unit. Open back and side panels in the bottom section of cabinet to accommodate multiple waste options.
Valve
Chrome-plated brass 1/2” NPT stay-open valve. Water fl ow is activated by pulling door
down 90° with supplied handle. Water still will continue to flow until door is returned to original position.
Pipe and Fittings
Chrome-plated brass
Water Supply
1/2” NPT
Waste
1-1/4” Drain provided with tailpiece. P-trap waste option also available.
Manufacturer Info
Bradley is the industry’s leading manufacturer of commercial plumbing fixtures and washroom accessories. Bradley boasts the greatest depth and breadth of commercial plumbing products in the world.
